LITTLE GIANT PUMPS

See our 858 reviews on trustpilot

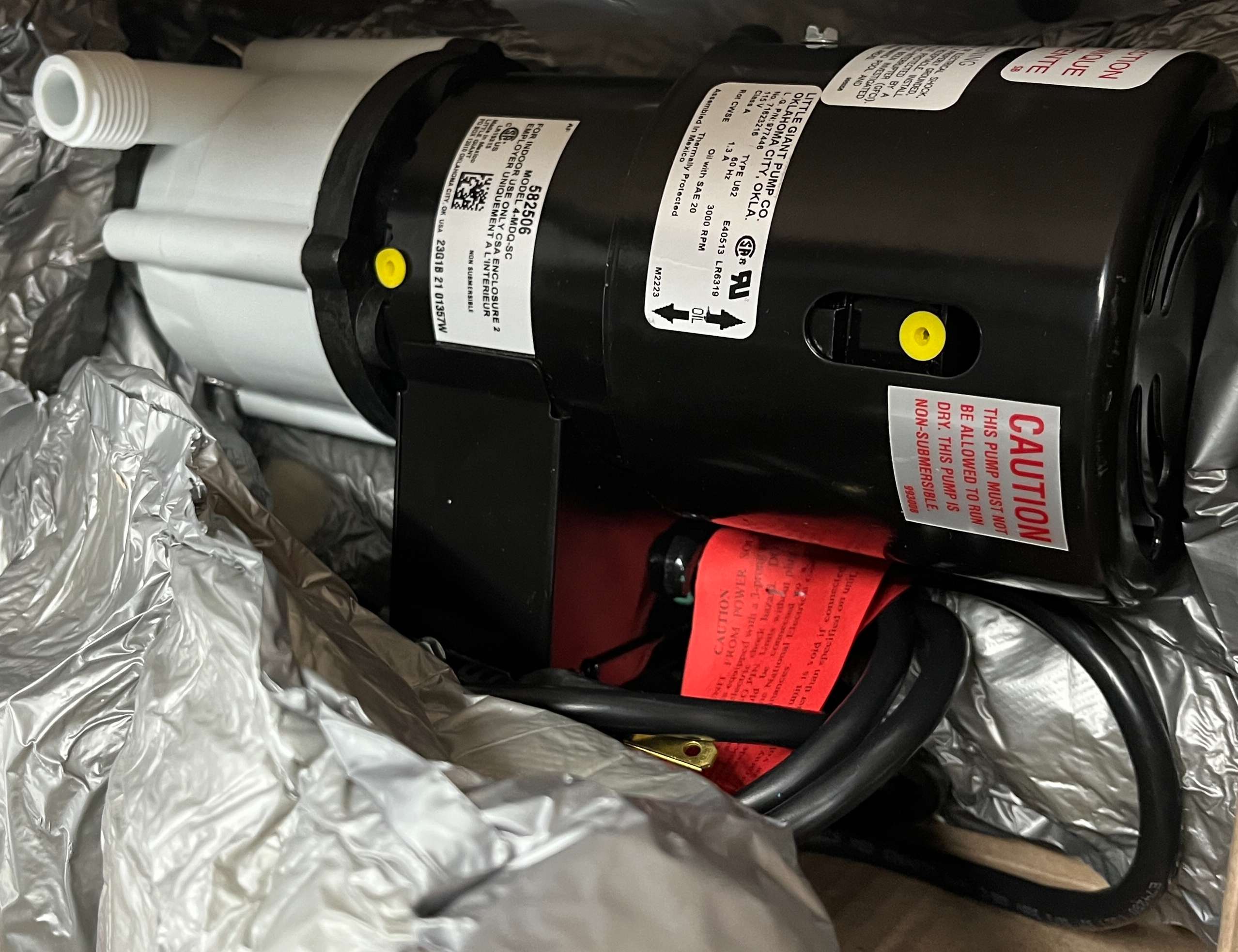

LITTLE GIANT PUMPS 582506 Magnetic Drive Aquarium Pump, 150W

Item: BR2UMQ
Model: 582506
In Stock

Get it by Thursday, Apr 16

£662.36/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Magnetic Drive Pump
Amps 1.3A
Flow Rate @ 1 Ft. 850 GPH
Flow Rate @ 10 Ft. 680 GPH
Flow Rate @ 20 Ft. 330 GPH
Flow Rate @ 3 Ft. 810 GPH
Flow Rate @ 6 Ft. 765 GPH
Frequency 60 Hz
Height 5"
Housing Material Plastic
Hp 1/10 hp
Inlet Size 1/2"
Inlet Type FNPT
Length 10 3/5"
Max. Flow Rate 14.17 GPM
Max. Head 24.3 ft.
Max. Outlet Pressure 10.5 psi
Nameplate Voltage 115V AC
Outlet Size 1/2"
Outlet Type MNPT
Series Aquarium Series
Voltage 115V AC
Watts 150 W
Width 5 1/2"

Product Details

Little Giant 582506 magnetic drive aquarium pump is perfect for circulating mildly corrosive acids, alkalis, brine, solvents, plating solutions and sterile solutions. It is widely used in chemical processing, pharmaceuticals and water treatment applications. This pump is installed externally to the aquarium and filtration systems and is usually mounted beneath the aquarium in the cabinet.

Shipping Information

height 22.86
length 34.29
width 22.86
country of origin MX
weight 5.017500

Uses

Working Mechanism

  • A magnetic drive aquarium pump operates using magnets to create motion.
  • Inside the pump, there are two main components: a rotor (magnetic) and an impeller.
  • When electricity flows through the pump, it energises the magnet in the rotor.
  • The energised magnet creates a magnetic field. This magnetic field interacts with another magnet outside the rotor, often fixed in place.
  • The interaction between these magnets causes the rotor to spin. As the rotor spins, it drives the impeller to rotate as well.
  • The rotating impeller creates suction, drawing water into the pump.

Features

  • Little Giant 582506 pump is ideal for in-line saltwater and freshwater aquarium canister filter systems.
  • This aquarium pump uses a magnetic field to rotate without a motor shaft, reducing the risk of leaks and corrosion.
  • It has a thermally protected motor that is CSA-certified and corrosion-resistant.
  • This non-submersible pump does not self-prime and must be started with the volute intake below the liquid level.

Compatible Accessories

Standards and Approvals

Installation

FAQ′s

Q. How do I maintain my aquarium pump?

A.

  • Clean the unit periodically to remove debris and prevent clogging.
  • Additionally, check the pump's impeller regularly for any signs of wear or damage.

Q. Can Little Giant 582506 pump be used in both freshwater and saltwater aquariums?

A. Yes, you can use Little Giant 582506 pump (4-MDQ-SC) magnetic drive pump for both freshwater and saltwater circulation & filtration.

Q. How do I reduce noise from my aquarium pump?

A. To reduce noise, place your aquarium pump on a stable surface. You can also place a rubber mat, foam padding or any other soft material underneath the pump to dampen the vibrations.

Q. What are the benefits of a magnetic drive pump in chemical transfer applications?

A.

  • They do not require seals or gaskets, making them ideal for handling hazardous materials safely.
  • Chemical transfer magnetic drive pumps are more energy efficient than traditional pumps because they do not use mechanical seals that cause friction and heat.
  • They are more durable and can handle corrosive chemicals and fluids with high viscosity.

Q. How do I calculate the appropriate flow rate for my aquarium pump?

A. To calculate the appropriate flow rate, consider factors like the tank size, the types of inhabitants, and the desired water movement. As a general rule, aim for a flow rate that allows gentle water movement without causing excessive turbulence or stress to your aquatic inhabitants.
