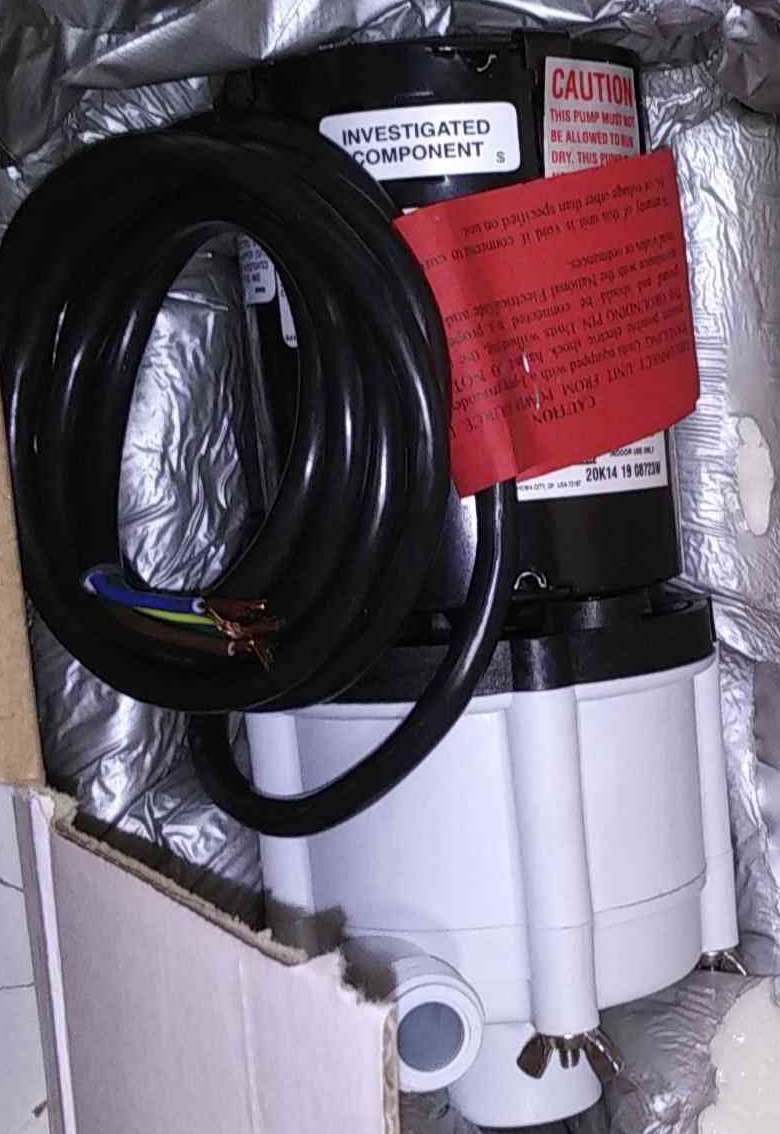

LITTLE GIANT PUMPS 580513 2-MD-SC Chemical Transfer Pump, 1/25 Hp, 230V, Non Submersible
Item: AD9FPX
Model: 580513
17 In Stock
Ships within 2 days via
5.00% off
£559.49/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Transfer Pump |
|---|---|
| Amps | 1.43A |
| Application | For Mild Chemicals At Moderate Temperature, Eliminates Seal Caused Friction Loss, Wear, Contamination And Leakage |
| Bearing Type | Thrust |
| Cord Length | 6 ft. |
| Cord Type | 3-conductor SJP |
| Design | Gravity-Feed, Requires The Pump Inlet To Be Lower Than Liquid Level |
| Discharge Pipe Size | 1/2" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1/2" |
| Discharge Port Type | NPT |
| Flow Rate @ 1 Ft. | 8.5 GPM |
| Flow Rate @ 3 Ft. | 7.8 GPM |
| Flow Rate @ 6 Ft. | 6.8 GPM |
| Flow Rate @ 9 Ft. | 5.5 GPM |
| Frequency | 60 Hz |
| Full Load Current | 1.43A |
| Gasket Material | Buna N |
| Gpm Of Water @ 3 Ft. | 7.7 GPM |
| Height | 4.9" |
| Housing Material | Glass Filled Polypropylene |
| Hp | 1/25 hp |
| Impeller Material | Glass Filled Polypropylene |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1/2" |
| Intake Pipe Type | FNPT |
| Length | 8.9" |
| Liquid Temp. | 150°F |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 77°F |
| Max. Discharge Pressure | 6.3 psi |
| Max. Flow Rate | 8.5 GPM |
| Max. Flow Rate @ 3 Ft Of Head | 7.8 GPM |
|---|---|
| Max. Flow Rate @ 6 Ft Of Head | 6.8 GPM |
| Max. Flow Rate @ 60 Hz | 8.5 GPM |
| Max. Flow Rate @ 9 Ft Of Head | 5.5 GPM |
| Max. Fluid Temp. | 150°F |
| Max. Ft. Of Head | 14.6 ft. |
| Max. Head | 14.6 ft. |
| Max. Outlet Pressure | 6.3 psi |
| Max. Specific Gravity | 1.1 |
| Max. Viscosity | 100 SUS |
| Motor Enclosure Design | Open Fan Cooled |
| Motor Mounting Type | Horizontal |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115V AC |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 4.9" |
| Overall Length | 8.9" |
| Overall Width | 3.9" |
| Phase | 1 |
| Rpm | 2700/3000 RPM |
| Series | MD-SC Series |
| Specific Gravity | 1.1 |
| Standard Logo | ccsaus.png |
| Suction Port | 1/2" FNPT |
| Temp (f) @ 0 Psig | 150°F |
| Temp (f) @ 10 Psig | 150°F |
| Temp (f) @ 20 Psig | 140°F |
| Temp (f) @ 30 Psig | 120°F |
| Type | Magnetic Drive |
| Voltage | 230V AC |
| Watts | 100 W |
| Width | 3.9" |
Product Details
- Pump Head 580598
Shipping Information
| height | 17.93 |
|---|---|
| length | 28.73 |
| width | 16.36 |
| hs code | 8413810040 |
|---|---|
| country of origin | US |
| weight | 2.812500 |
