LITTLE GIANT PUMPS

See our 858 reviews on trustpilot

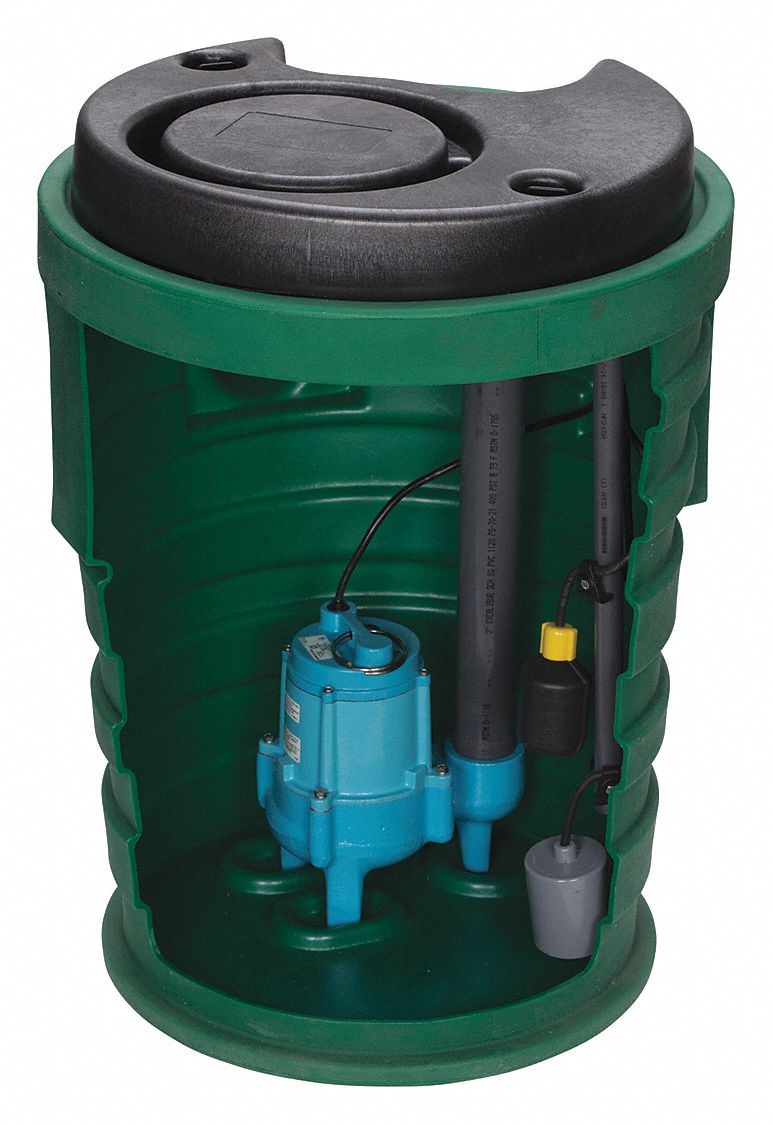

LITTLE GIANT PUMPS 509662 9SF2V2DA1 Sewage Ejector System, 4/10 hp, 1 Phase

Item: CH6NHH
Model: 509662
In Stock

Get it by Thursday, Apr 16

£1372.33
5.00% off
£1303.72/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Alarm Application Indoor
Alarm Included Yes
Base Material Cast Iron
Basin Capacity 41 gal.
Basin Dia. 24"
Basin Height 32 9/16"
Body Material Cast Iron , Polyethylene
Cord Length 20 ft.
Discharge Dia. 2"
Duty Cycle Continuous
Electrical Connection Piggyback
Electrical Connection Type Piggyback
Fasteners Material Stainless Steel
Flow Rate @ 10 Ft. Of Head 70 GPM
Flow Rate @ 15 Ft. Of Head 30 GPM
Flow Rate @ 5 Ft. Of Head 110 GPM
Frequency 60 Hz
Full Load Amps 8A
Full Load Watts 870 W
Height 24"
Hp 4/10 hp
Impeller Material Nylon
Impeller Type Vortex
Includes Accessories Pre-Assembled: 20" x 30" Polyethylene Basin With Stub Out Intake, 1-Piece Structural Foam Bolt-On Cover, 2" Discharge, 2" Vent, With 9SC-CIM Sewage Pump (Item 509413) 115V 4/10 Hp, Piggyback Mechanical Float Switch And Float Tree, Includes Indoor Alarm And Finish Cover.
Inlet 4"
Inlet Size 4"
Length 24"
Max. Dia. Solids 2"
Max. Flow Rate @ 60 Hz 100 GPM
Max. Head 20 ft.
Max. Liquid Temp. 120°F
Max. Solid Dia. 2"
Min. Flow Rate @ 60 Hz 4 GPM
Motor Cooling Oil
Motor Shaft End Material Stainless Steel
Motor Shaft End Material Grade Grade 420
Motor Type Submersible
Number Of Conductors 3
Number Of Gauges 18
Number Of Pumps 1
On Level Range 9" to 14"
Outlet Size 2"
Outlet Type FNPT
Phase 1
Phase - Pumps 1
Power Cord Type SJTW
Pump Body Material Polyethylene
Pump Component Part Number 509413
Pump Discharge Diameter 2"
Pump Length 10.4"
Rpm 1750 RPM
Seal Material Carbon/Ceramic, Nitrile
Seal Type Mechanical Seal
Series Pit Plus Jr Series
Shut Off Height @ 60 Hz 20 ft.
Size 2"
Starting Amps 20.15A
Switch Actuation Tether Float
Switch Electrical Connection Piggyback
Switch Type Float
Thermal Overload Protection Yes
Top Bearing Material Steel
Top Bearing Type Ball
Vent Size 2"
Voltage 115V AC , 120V AC
Volute Material Cast Iron
Warranty 3 yrs.
Width 32.56"

Product Details

Shipping Information

Height 66.04
Length 66.04
Width 88.9
Country Of Origin USA
Weight 30.150000
