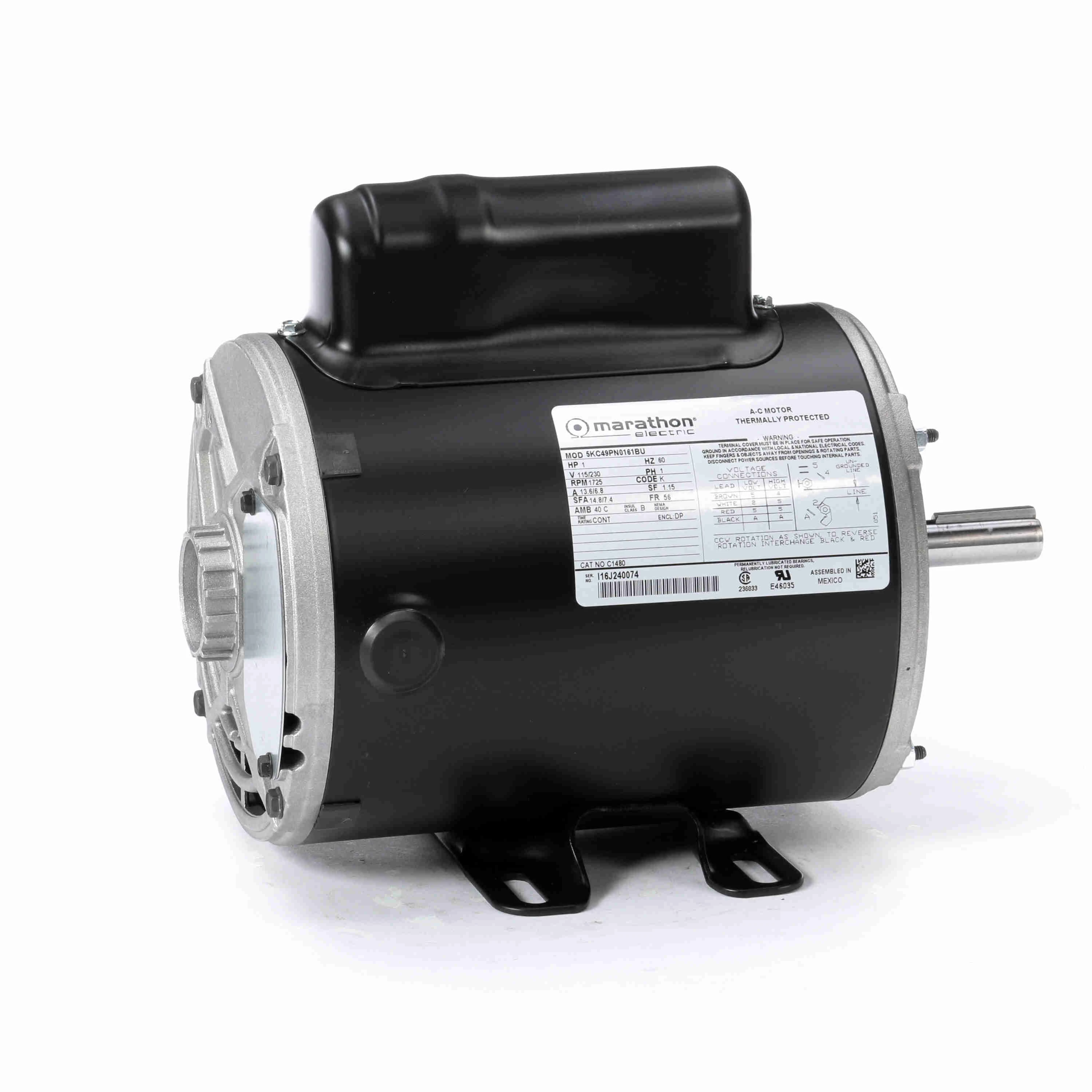

| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting | WB |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Orientation | Horizontal, Vertical |
| Overall Length | 11 3/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Voltage | 115/230V AC |
| Ins. Class | Class B |
| Motor Frame Material | Steel |
| Standards | CSA, UL LISTED |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501406040 |
| Country of Origin | MX |
