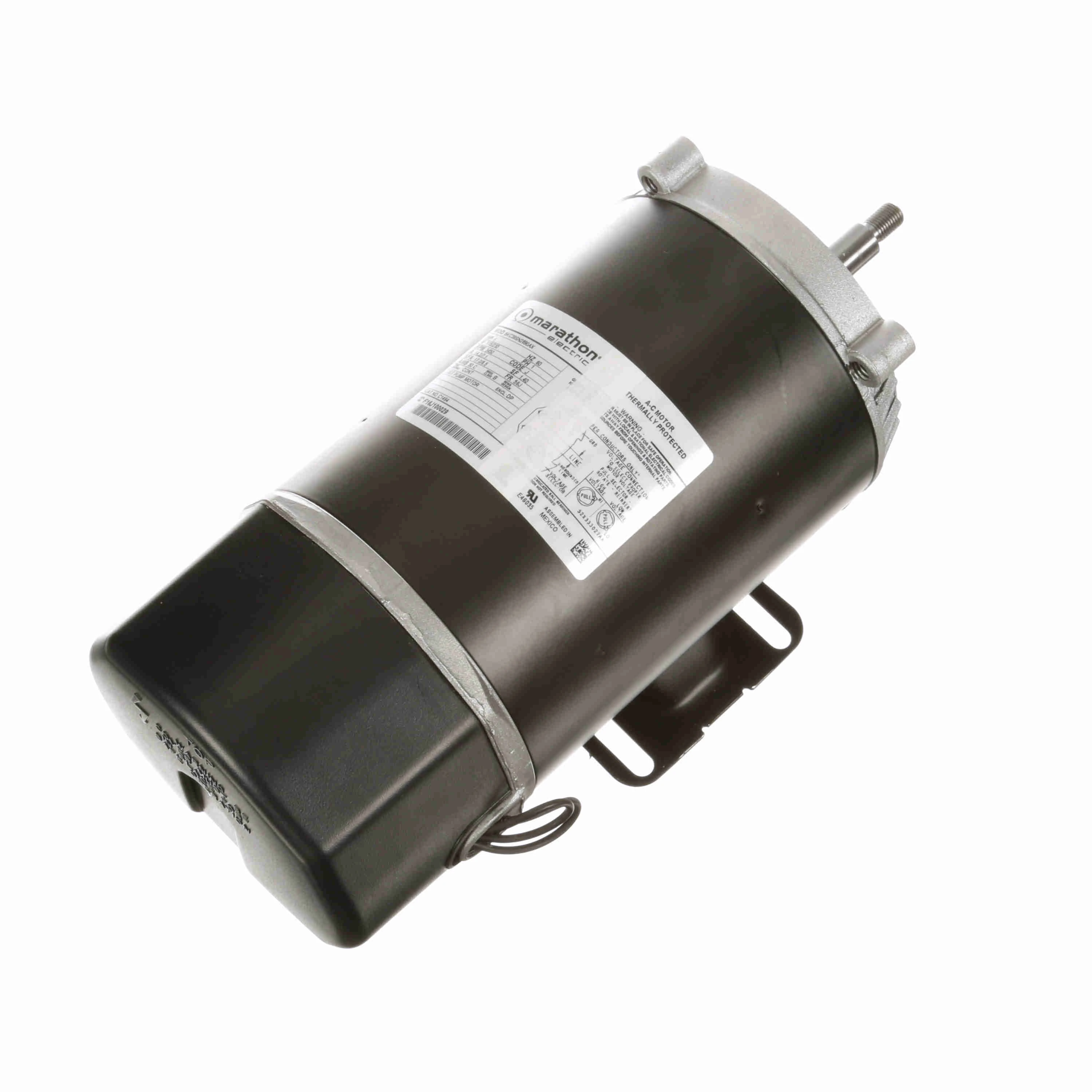

| Item | Jet Pump Motor |
| Amps | 14.2/7.1A |
| Bearing Type | Ball |
| Body Dia. | 6" |
| Bolt Circle Dia. | 4 1/2" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Hp | 1 hp |
| Includes | Shaft Slinger |
| Lead Length | 4", 6" |
| Length Less Shaft | 11.562" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start Induction Run |
| Mounting Position | Horizontal, Vertical |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Overall Length | 14" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 44.93 |
| Ship width (cm) | 19.53 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | HP | Motor Design | Motor Type | Overall Length | Service Factor | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH39EN2887X | 6.2 | 1/3 | Split-Phase | Split-Phase | 11.5" | 1.75 | 115 | £194.68 |
