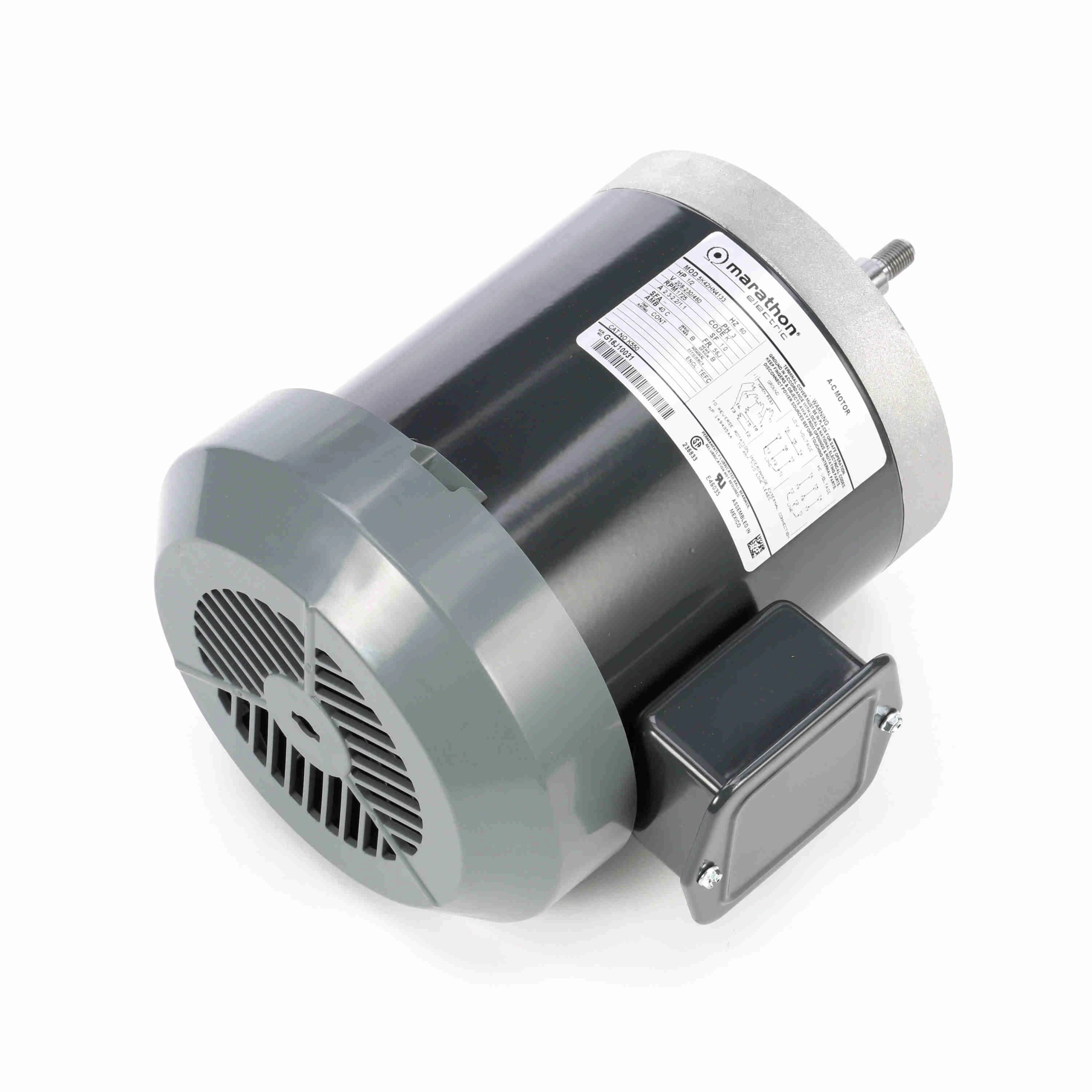

| Item | Jet Pump Motor |
| Amps | 2.2-2.3/1.1A |
| Bearing Type | Ball |
| Body Dia. | 6 2/5" |
| Bolt Circle Dia. | 4 1/2" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.3-2.2/1.1A |
| Height | 7.562" |
| Hp | 1/2 hp |
| Includes | Shaft Slinger And Drip Cover |
| Length Less Shaft | 9 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Jet Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Mounting Position | Horizontal, Vertical |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 78.7% |
| Number Of Speeds | 1 |
| Overall Length | 11 1/2" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Starter Required | No |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Standards | CSA, UL RECOGNIZED |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501514040 |
| Country of Origin | MX |
