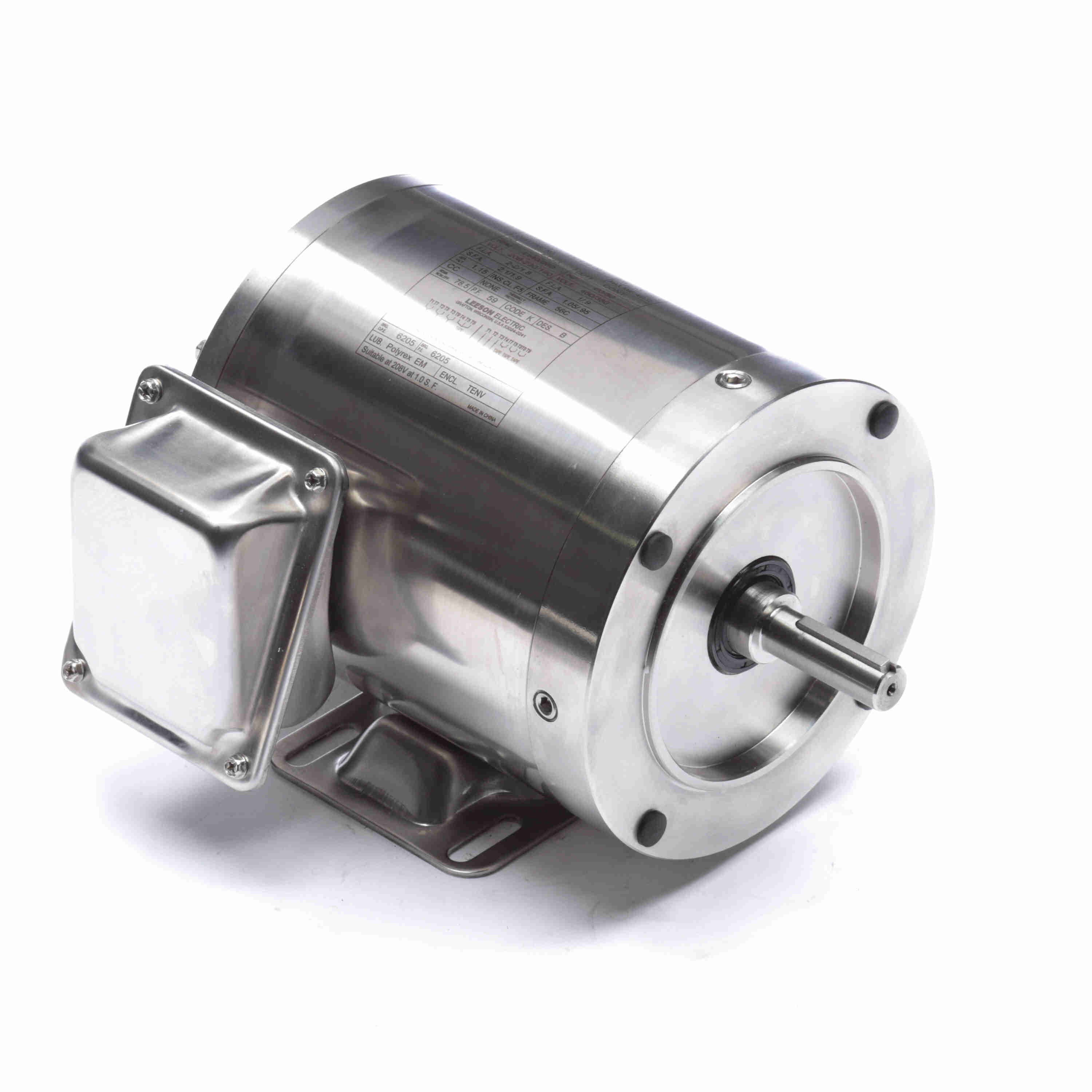

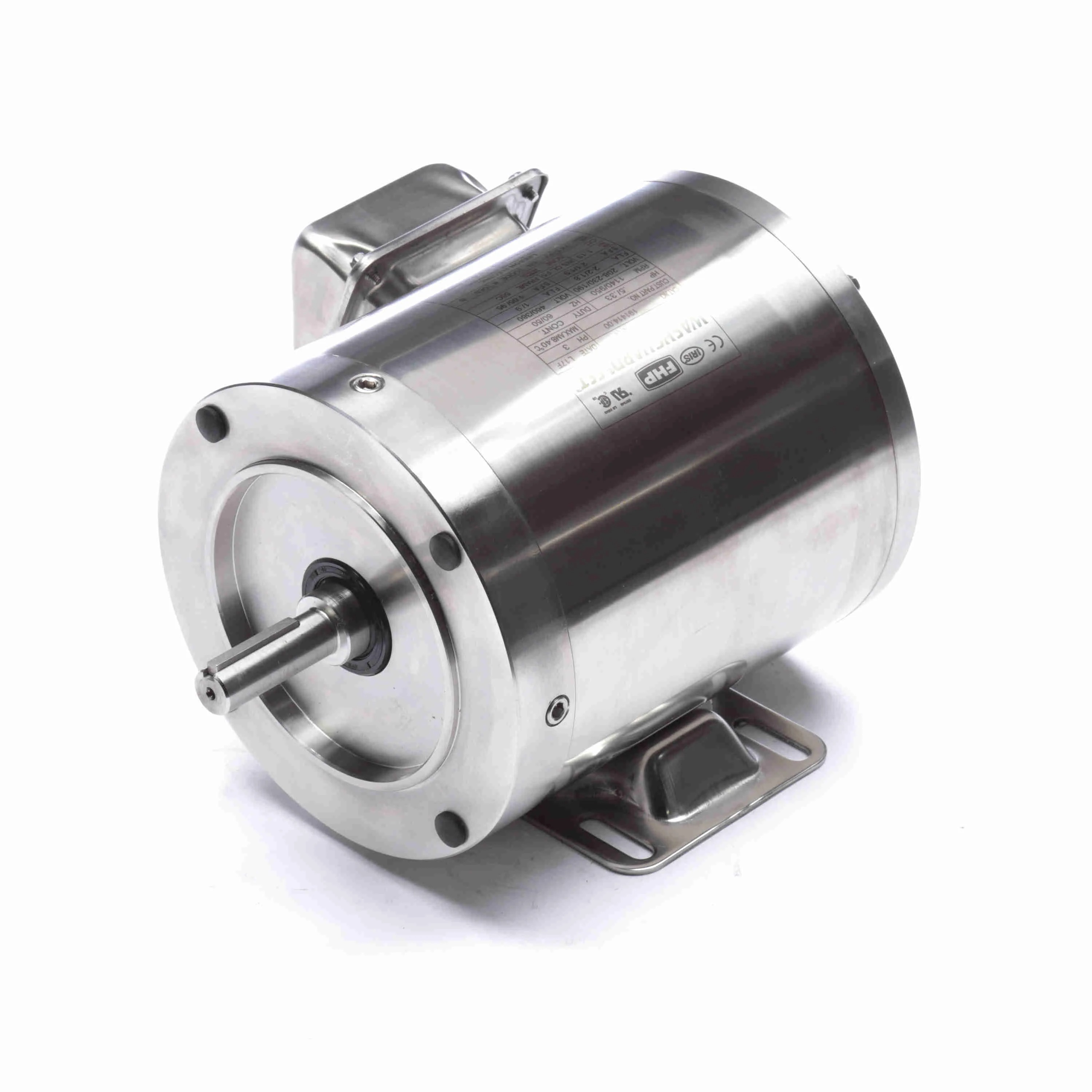

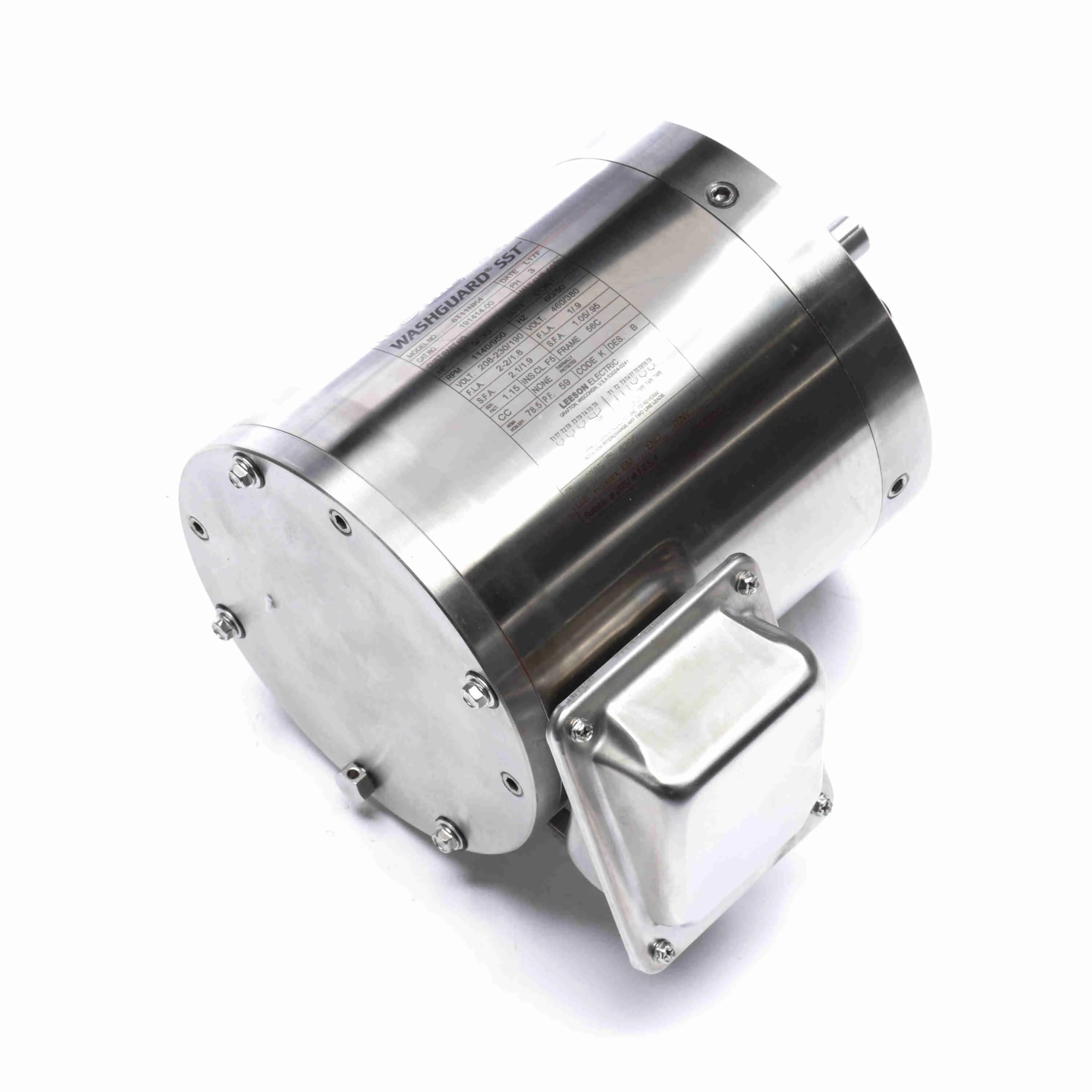

LEESON 191414.00 C6T11NK4A General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1200 RPM

Item: AJ2TMH
Model: 191414.00
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£1826.76
5.00% off
₹1826.760000 (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Washdown Motor
Ambient Temp. 104°F
Amps 2/1A
Application Washdown
Bearing Type Ball
Body Dia. 6 1/2"
Bolt Circle Dia. 5 7/8"
Code K
Conduit Box Location Exterior
Design B
Design Code B
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 80%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tenv
Finish Unfinished
Frame 56C
Frame Length 6"
Frame Material Stainless Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 2-2.1/1A
Grade Grade 300
Grease Type Polyrex EM
Height 9.65"
Hp 1/2 hp
Hz 50/60 Hz
Ins. Class Class F
Insulation Class Class F
Ip Code IP55
Kva Code K
Kw 0.37 kW
Length 11.22"
Length Less Shaft 8 1/2"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Max. Rpm 1140 RPM
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Frame Material Stainless Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face, Base
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1140 RPM
Nema Design B
No. Of Poles 6
No. Of Speeds 1
Nominal Efficiency 80%
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Overall Length 9 3/4"
Packaging B
Phase 3
Power 0.37 kW
Power Factor 59
Product Type Washdown Motor
Resistance Main 25.6 ohms
Rotation Reversible
Rpm 1100-1200 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Material Stainless Steel
Shaft Type NEMA 56
Standard Logo ul.png
Standards Ce, Csa Certified, Ul Recognized
Starting Method Across The Line
Thermal Protection No Protection
Type TN
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230/460V
Width 11"
Motor Thermal Protection None

Product Details

    • Eff 100%: 80
    • Bearing OPE: 6205
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Winding: QT6363
    • GROUP: 3
    • Paint: VERIFY
    • S. F Amps: 2.2-2.1 / 1.05

Shipping Information

height 24.51
length 28.5
width 27.94
country of origin CN
weight 14.850000
