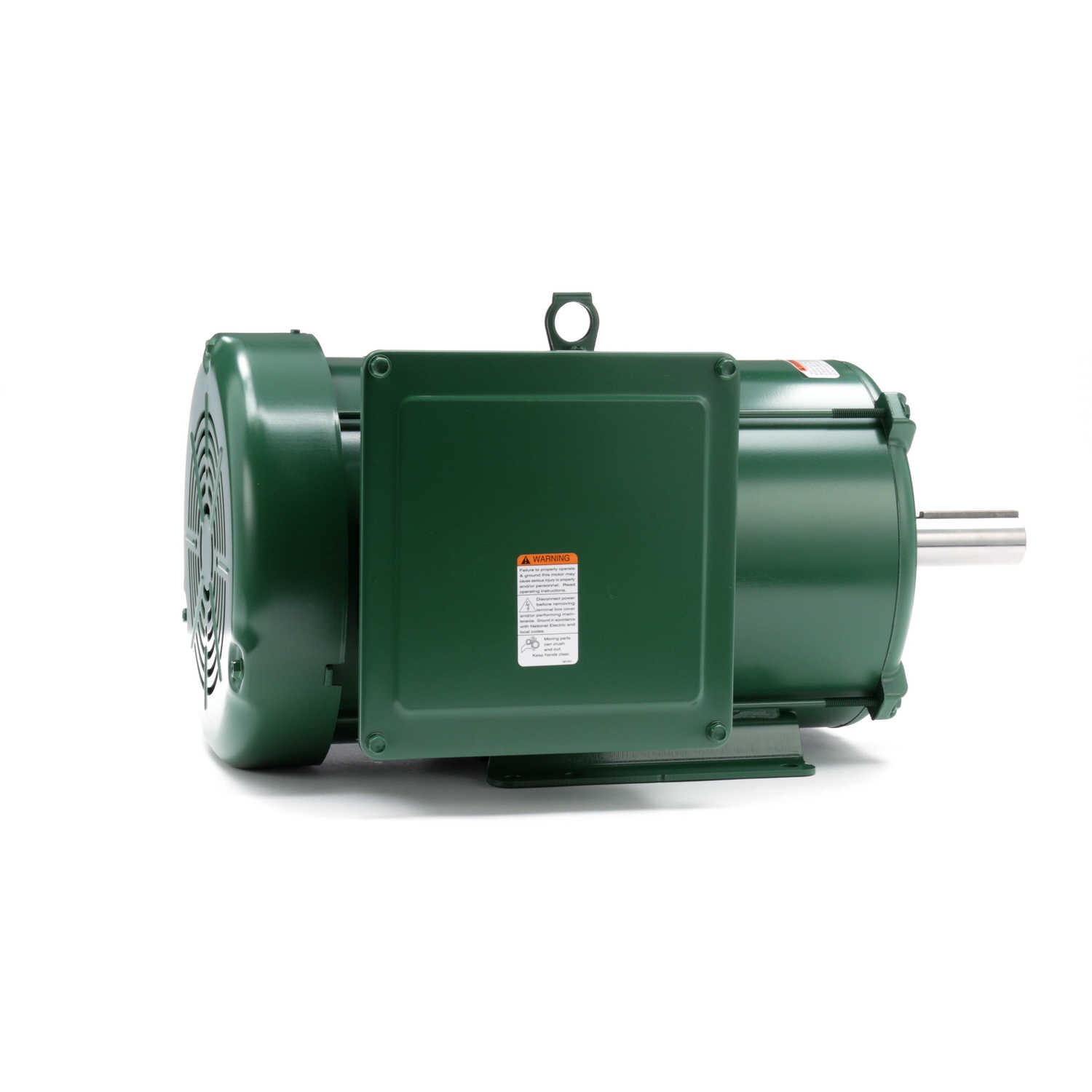

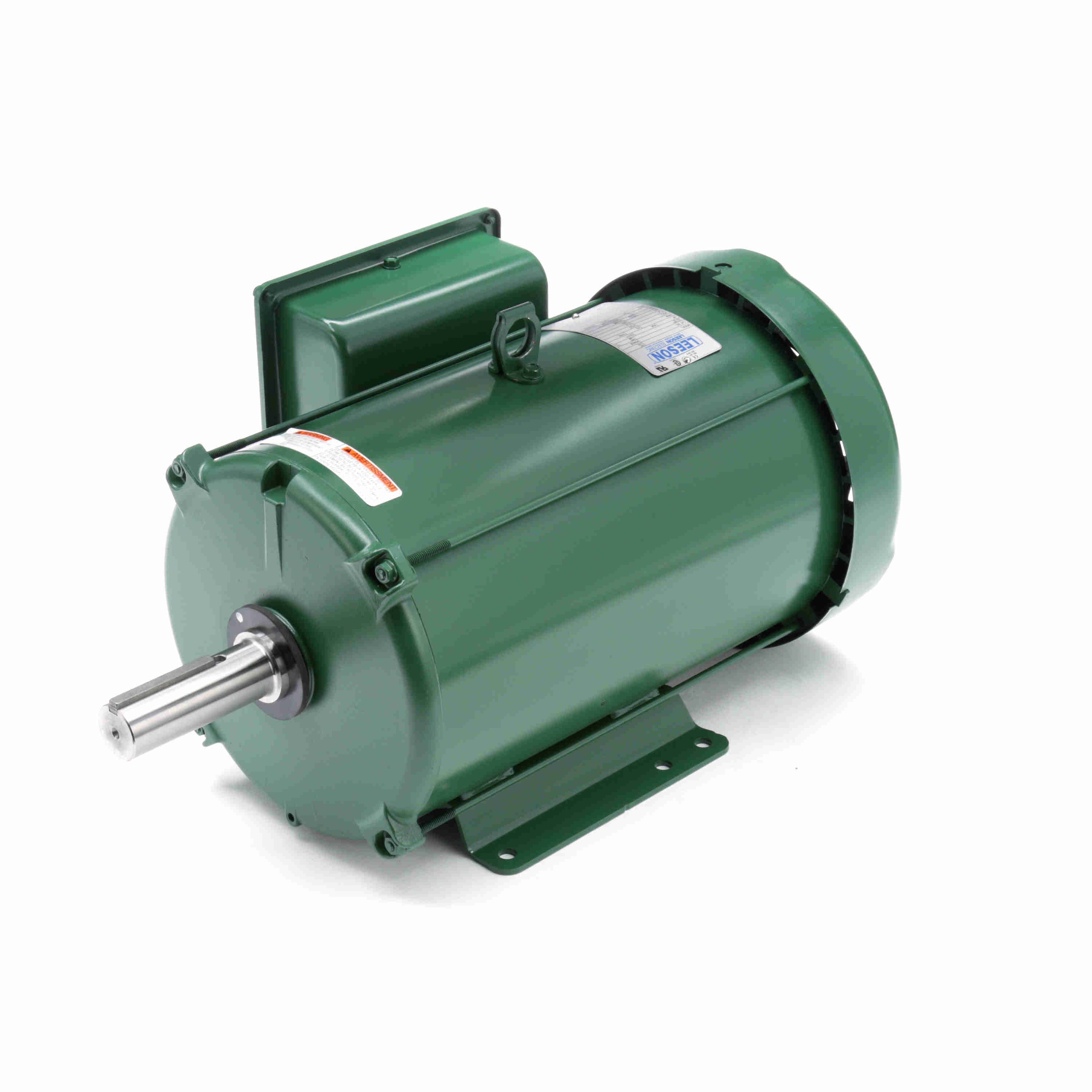

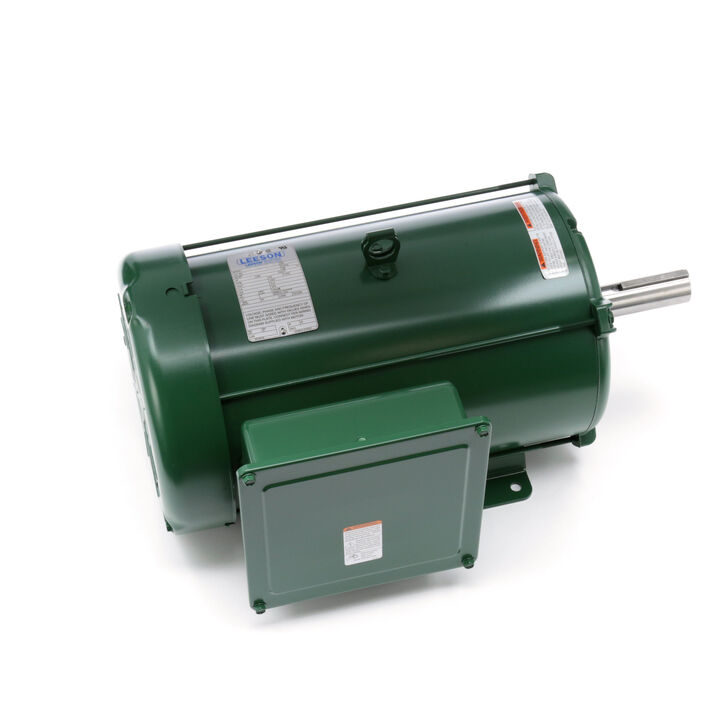

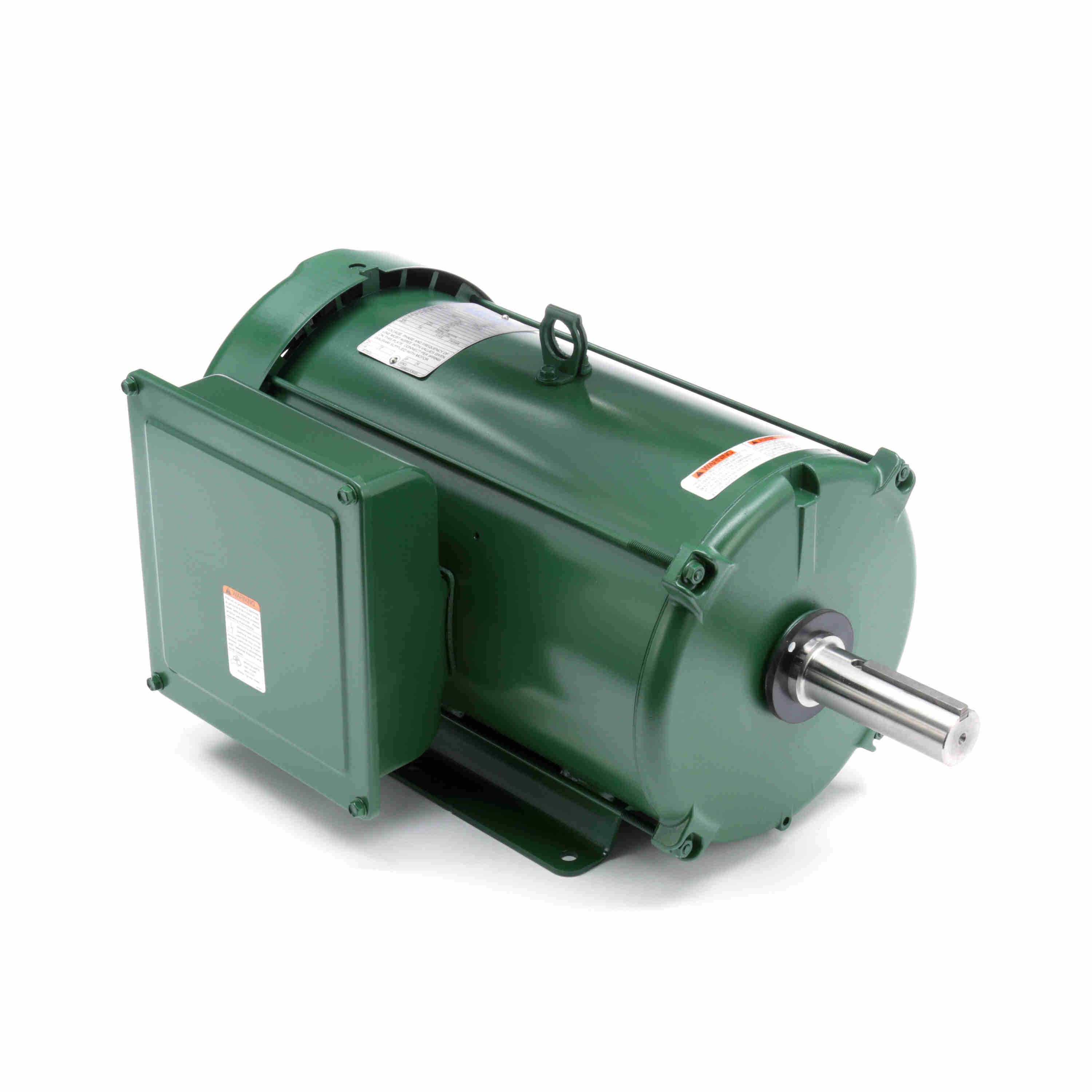

LEESON 141311.00 C215K17FB73A Crop Dryer Motor, 10 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Item: AJ2TCF
Model: 141311.00
In Stock
Get it by Wednesday, Apr 15
£2645.23/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Farm Duty Motor |
|---|---|
| Assembly | 210-005.02 |
| Code | G |
| Drive End Bearing Size | 6209 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Type | Tefc |
| Frame | 215TZ |
| Frame Material | Rolled Steel |
| Frame Type | 215TZ |
| Frequency | 60 Hz |
| Full Load Amps | 40A |
| Grease Type | Polyrex EM |
| Hp | 10 hp |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | G |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 7.5 kW |
| Phase | 1 |
| Power Factor | 95 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 4 1/2" |
| Thermal Protection | None |
| Type | KF |
| Voltage | 230V |
Product Details
- S. F Amps: 45
- Eff 100%: 86.5
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6209
- Nameplate: 081285
- Winding: K9425
- GROUP: 2
- Paint: GREEN (ENAMEL)
Shipping Information
| height | 36.2 |
|---|---|
| length | 57.48 |
| width | 40.97 |
| country of origin | MX |
|---|---|
| weight | 86.400000 |
