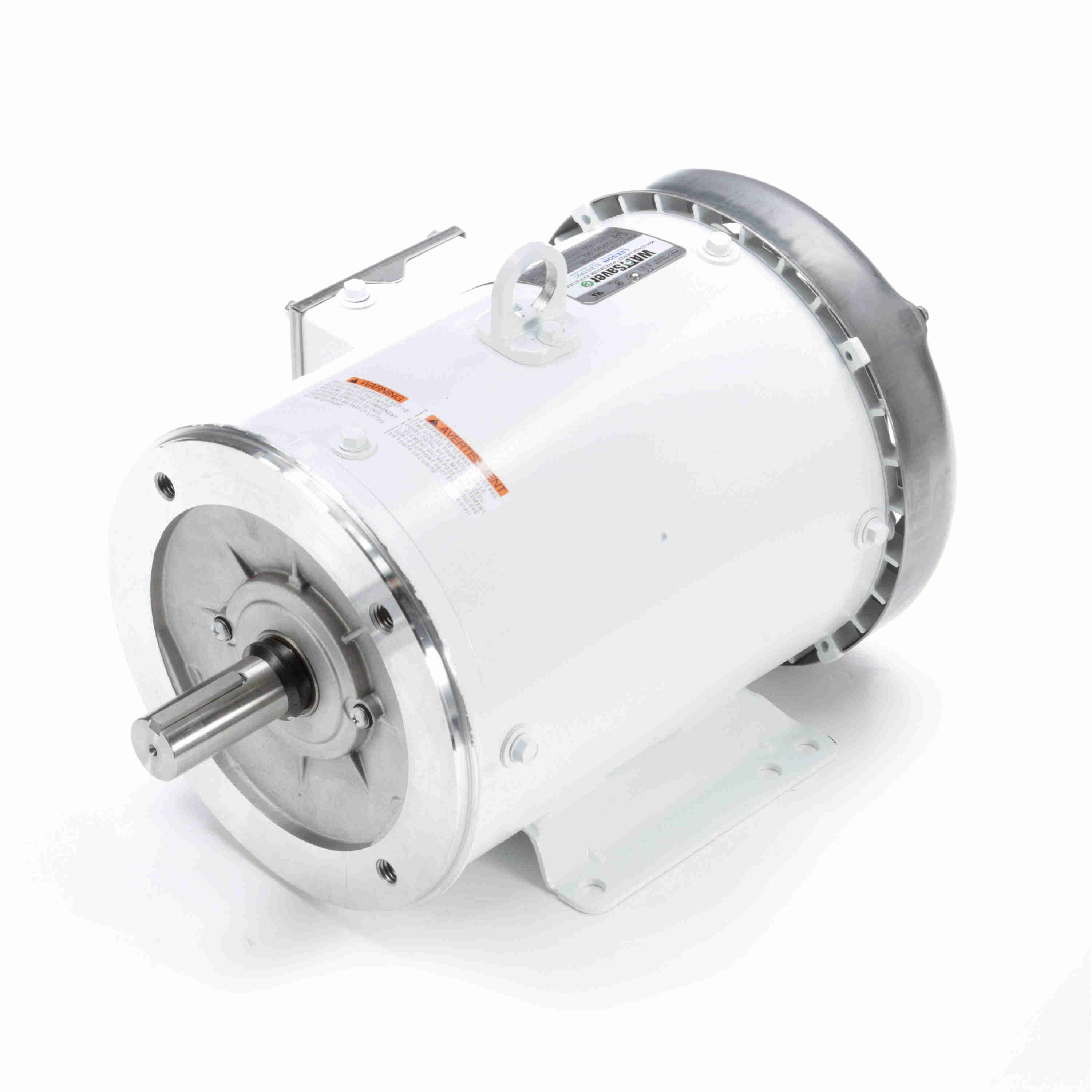

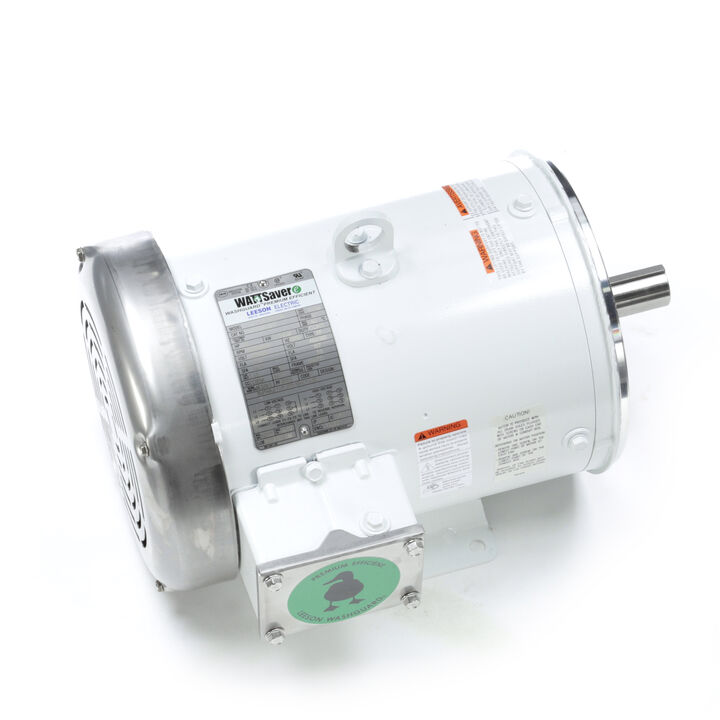

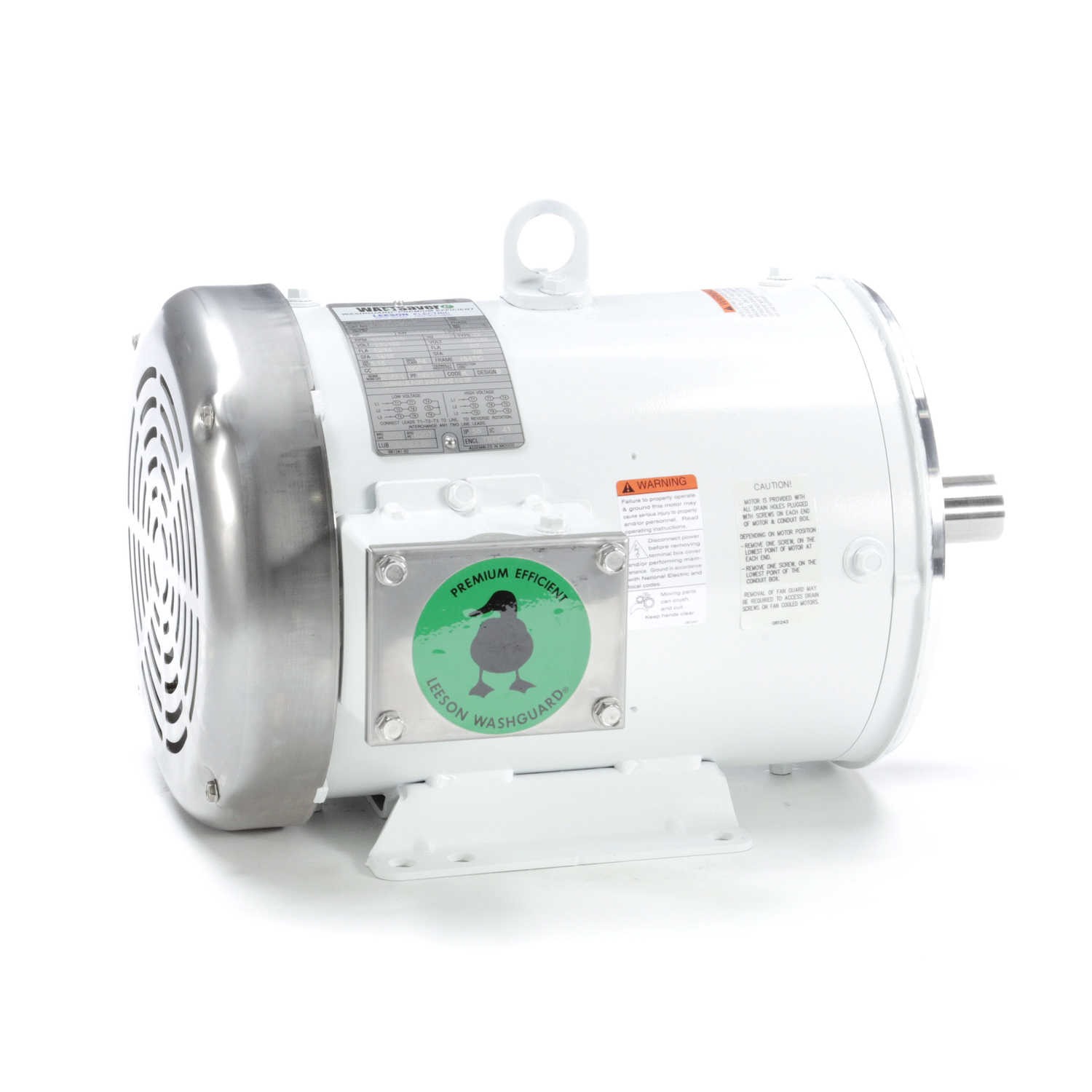

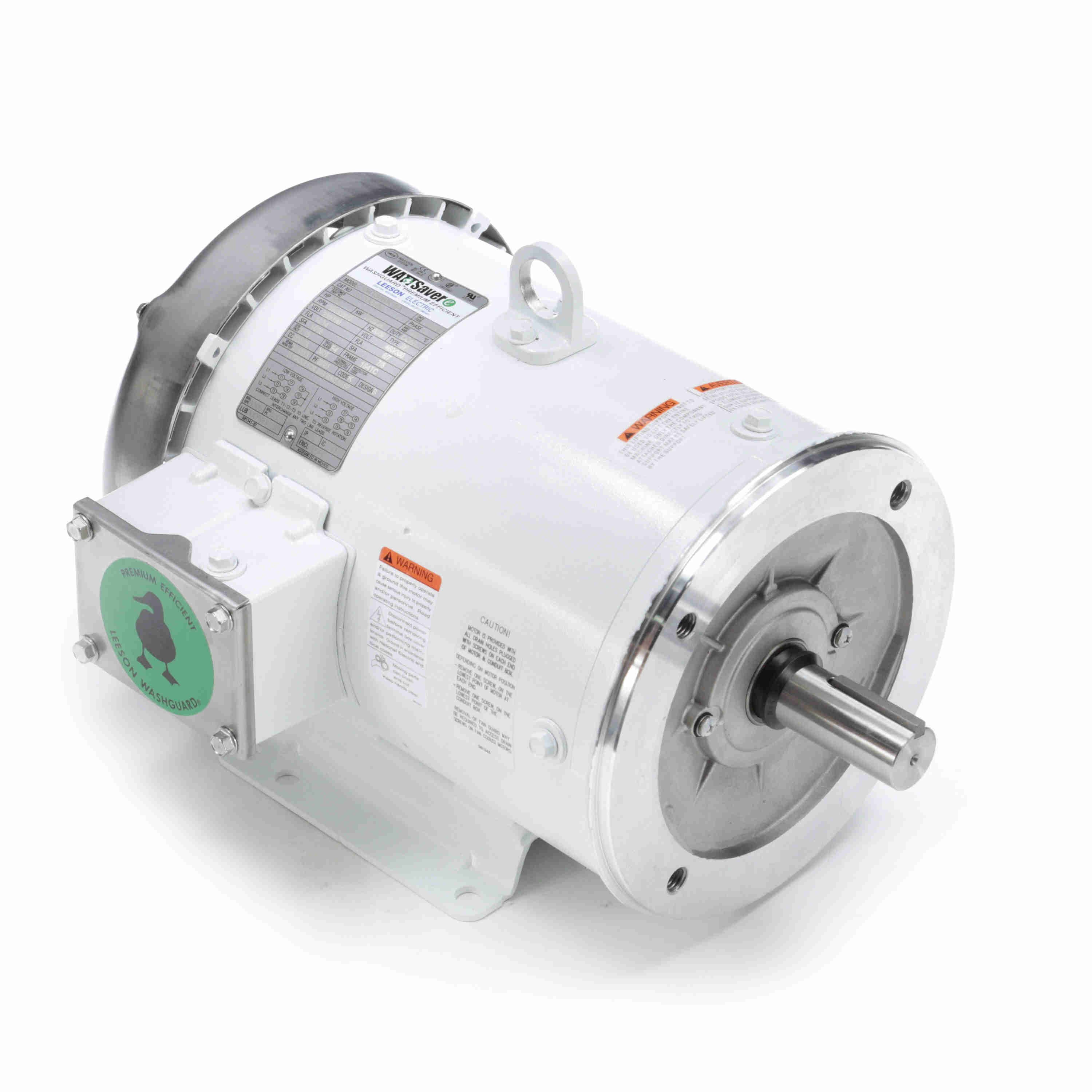

LEESON 132200.00 C184T34WK10A General Purpose Motor, 5/3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: CH6HTR
Model: 132200.00
In Stock

Get it by Thursday, Apr 16

£2123.47/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 104°F
Application Washdown
Bearing Type Ball
Body Dia. 8.38"
Bolt Circle Dia. 7 1/4"
Cc Number CC005A
Conduit Box Location Exterior
Drive End Bearing Size 6207
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 88.5%
Efficiency Group Premium
Enclosure Type Tefc
Finish Painted
Frame 184TC
Frame Material Rolled Steel
Frame Type 184TC
Frequency 60 Hz
Full Load Amps 12/6A
Green Certification Or Other Recognition NEMA Premium Rated
Hp 5 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Kw 3.7 kW
Length Less Shaft 12 5/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CWSE
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3515 RPM
Nema Design B
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 88.5%
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Overall Length 15"
Phase 3
Product Type Washdown Brake Motor
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Dia. 1 1/8"
Shaft Length 2 3/4"
Standard Logo ce.png, csa.png, ul.png
Standards Bissc Approved, Ce, Csa Certified, Ul Recognized, Usda Approved
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Motor Thermal Protection None

Product Details

Shipping Information

Height 31.45
Length 51.13
Width 37.16
Country Of Origin MX
Weight 40.500000
