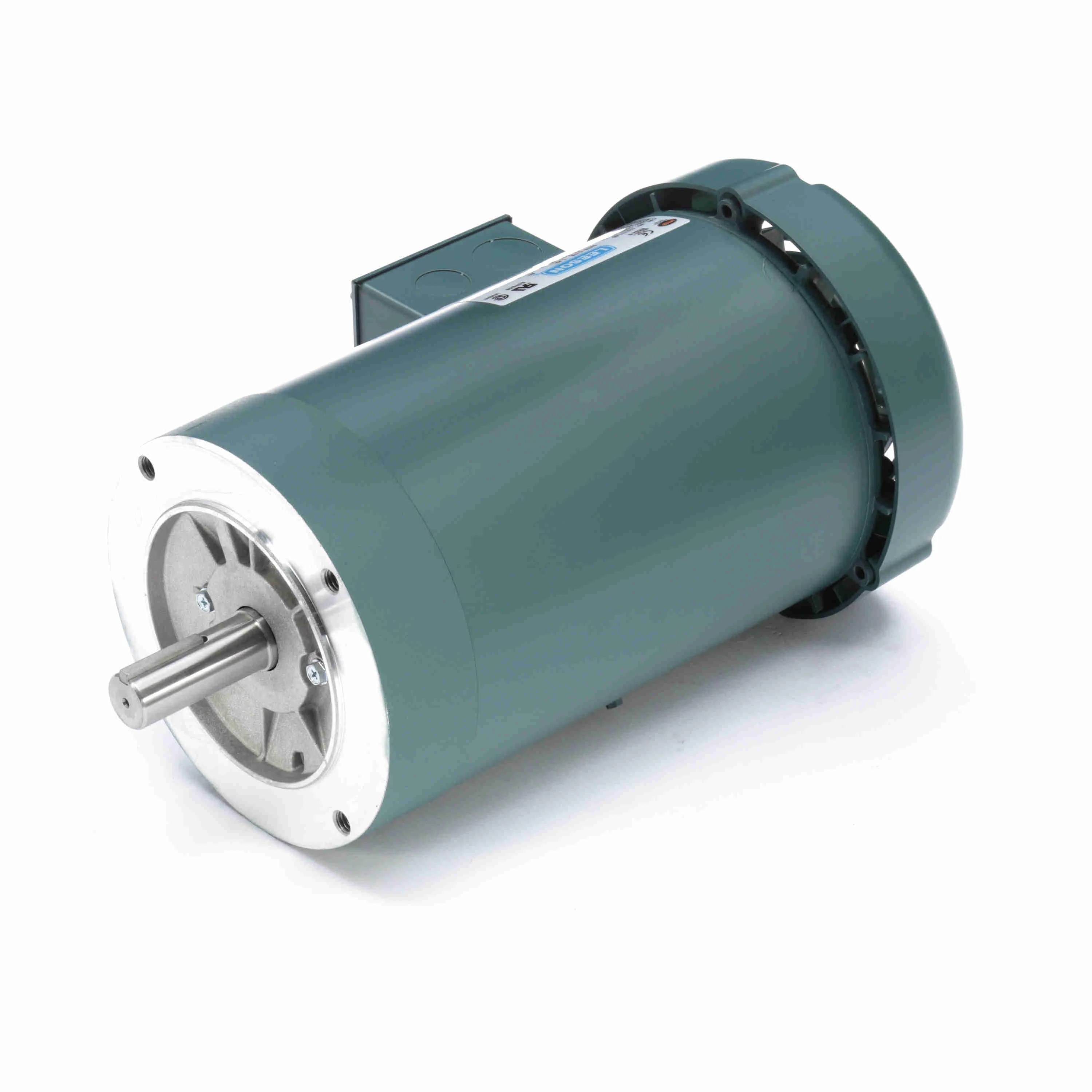

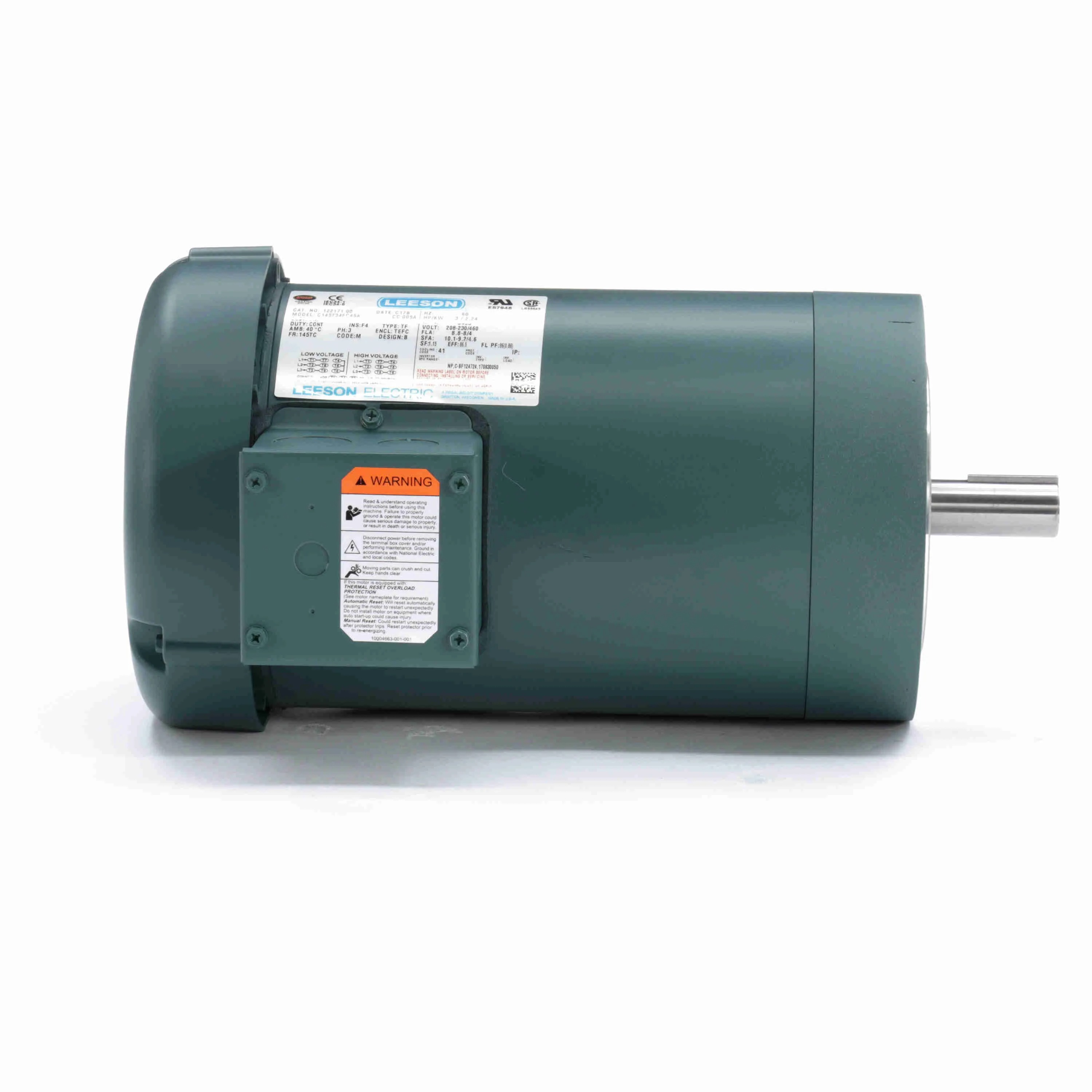

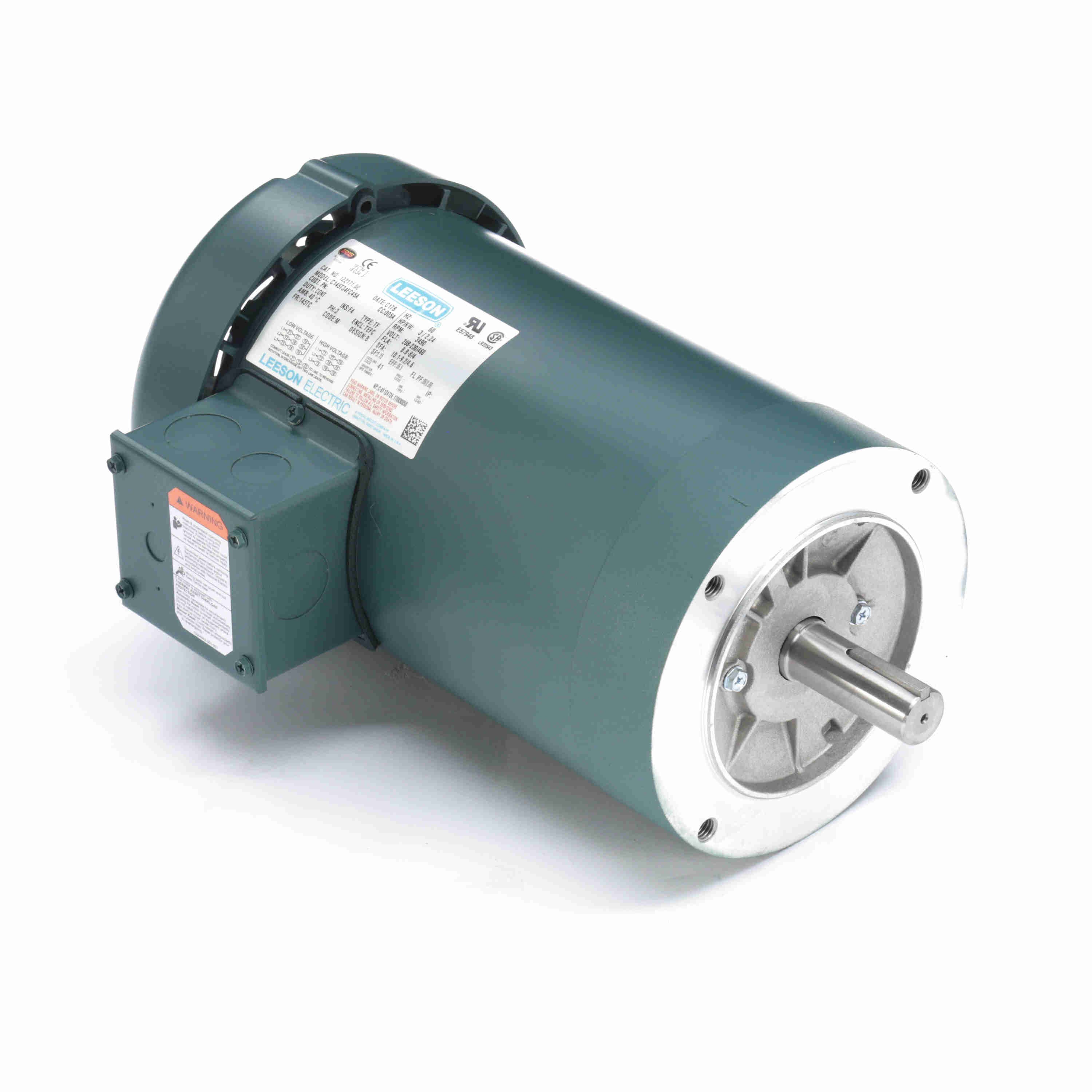

LEESON 122171.00 C145T34FC45A General Purpose Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM

Item: AJ2RNV
Model: 122171.00
In Stock

Get it by Wednesday, Apr 15

£1070.11/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item General Purpose Motor
Ambient Temp. 104°F
Amps 8/4A
Bearing Type Ball
Code M
Conduit Box Position F1
Design Code B
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 86.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Frame 145TC
Frame Length 8"
Frame Material Rolled Steel
Frame Type 145TC
Frequency 60 Hz
Full Load Amps 8.8-8/4A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Ip Code IP43
Kva Code M
Kw 2.2 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Ambient Temp. 40°C
Max. Rpm 3490 RPM
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Air Over
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Design T
Motor Shaft Rotation Reversible
Motor Type Three Phase
Mounting Type Face
Nameplate Rpm 3600 RPM
Nema Design B
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 86.5%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 2.24 kW
Overall Length 13 15/16"
Packaging B
Phase 3
Power Factor 86
Removable Base Permanently Lubricated Bearings
Resistance Main 3.83 ohms
Rpm 3400-3600 RPM
Rpm Range 3001-3600 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Standard Logo ul.png
Standards Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type TF
Usable @ 208v Yes
Voltage 208-230/460V
Width 10 11/25"
Motor Thermal Protection None

Product Details

    • Supersedes Leeson - G120993.00
    • Eff 100%: 86.5
    • Bearing OPE: 6203
    • CC Number: CC005A
    • Bearing PE: 6205
    • Nameplate: 993500
    • Winding: T632209
    • GROUP: 3
    • Paint: GREEN - LEESON WATTSAVER
    • S. F Amps: 10.1-9.2 / 4.6

Shipping Information

height 27.64
length 49.53
width 26.52
country of origin US
weight 21.150000
