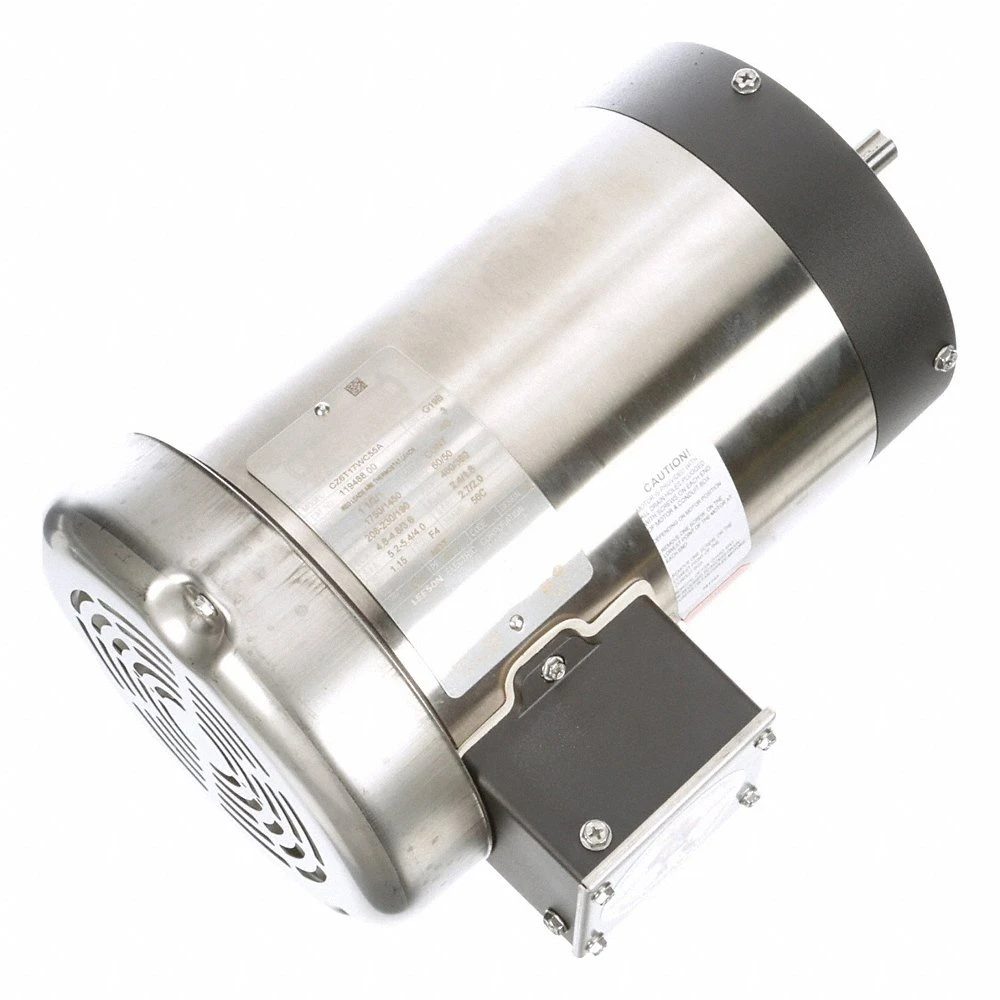

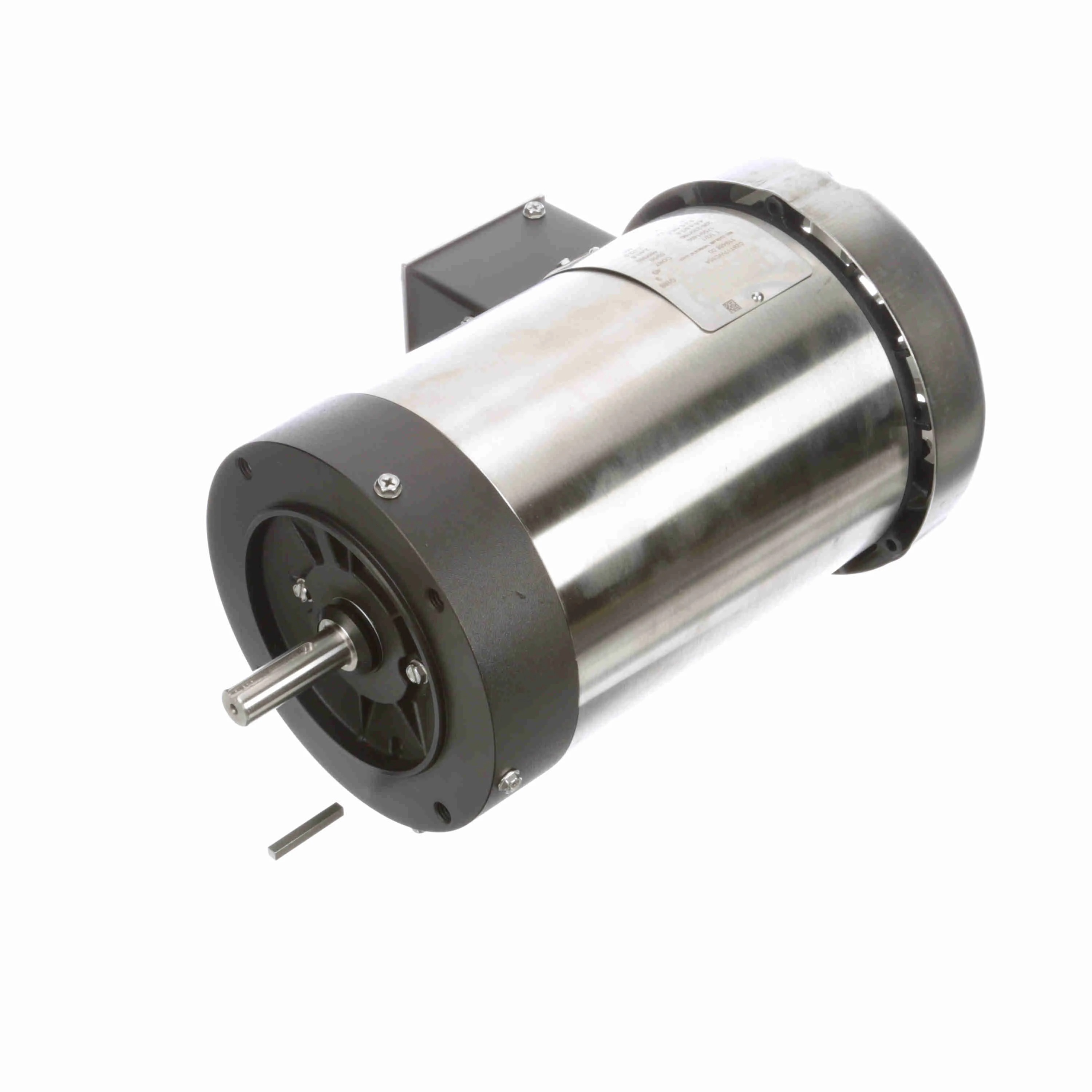

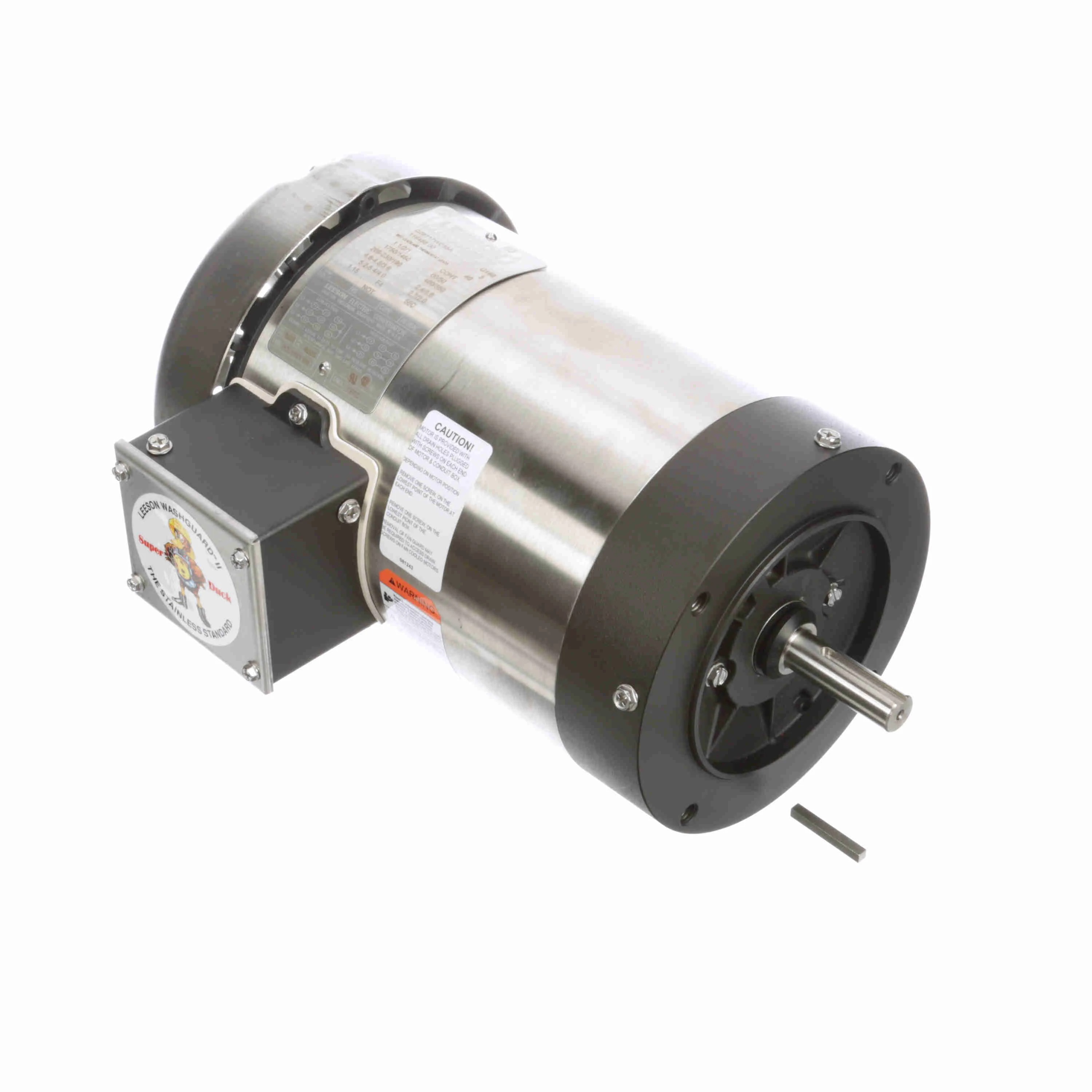

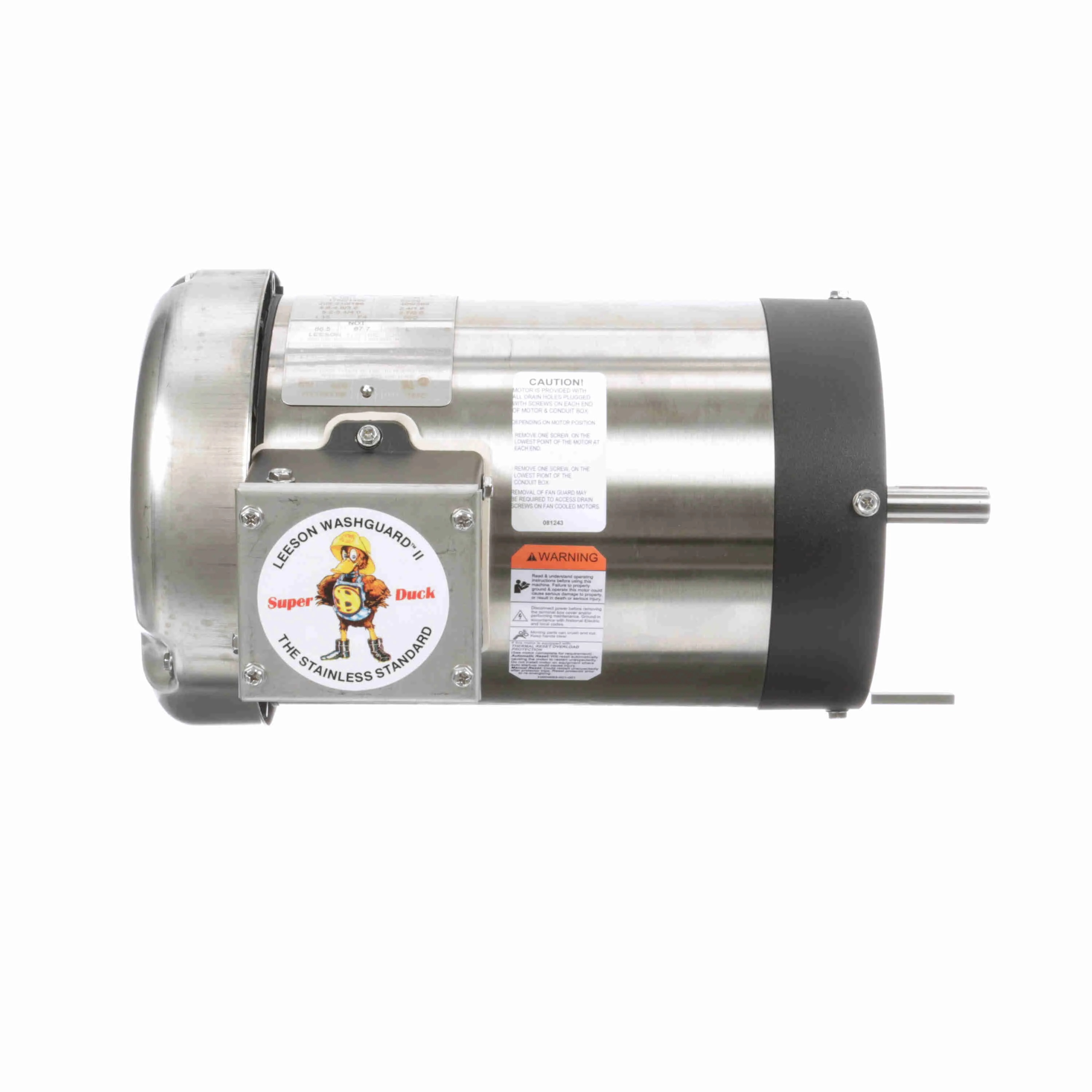

LEESON 119488.00 CZ6T17WC55A Washdown Motor, Three-Phase, 1 1/2 HP, 1750 RPM, 230/460V AC, 56C Frame Size

Item: EA7UGC
Model: 119488.00
In Stock

Get it by Thursday, Apr 16

£2494.98
5.00% off
£2370.24/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Frame Finish Painted Epoxy Coated, Epoxy Coated
Frame Type 56C
frequency 60/50 Hz
Full Load Amps 4.8/2.4A
Hp 1 1/2 hp
Insulation Class Class F
Motor Application General Purpose
Motor Design Three-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type C-Face
Motor Service Factor 1.15
Motor Shaft Rotation CW, CCW
Motor Thermal Protection T Stat
No. Of Speeds 1
Nominal Voltage 230/460V AC
Phase 3
Rpm Range 1701-1800/1400-1800 RPM
Usable @ 208v No
Voltage 230/460V AC
Voltage Compatibility 460/230V AC

Product Details

Washdown Motor

Shipping Information

height 27.64
length 49.53
width 26.52
country of origin US
weight 21.150000
