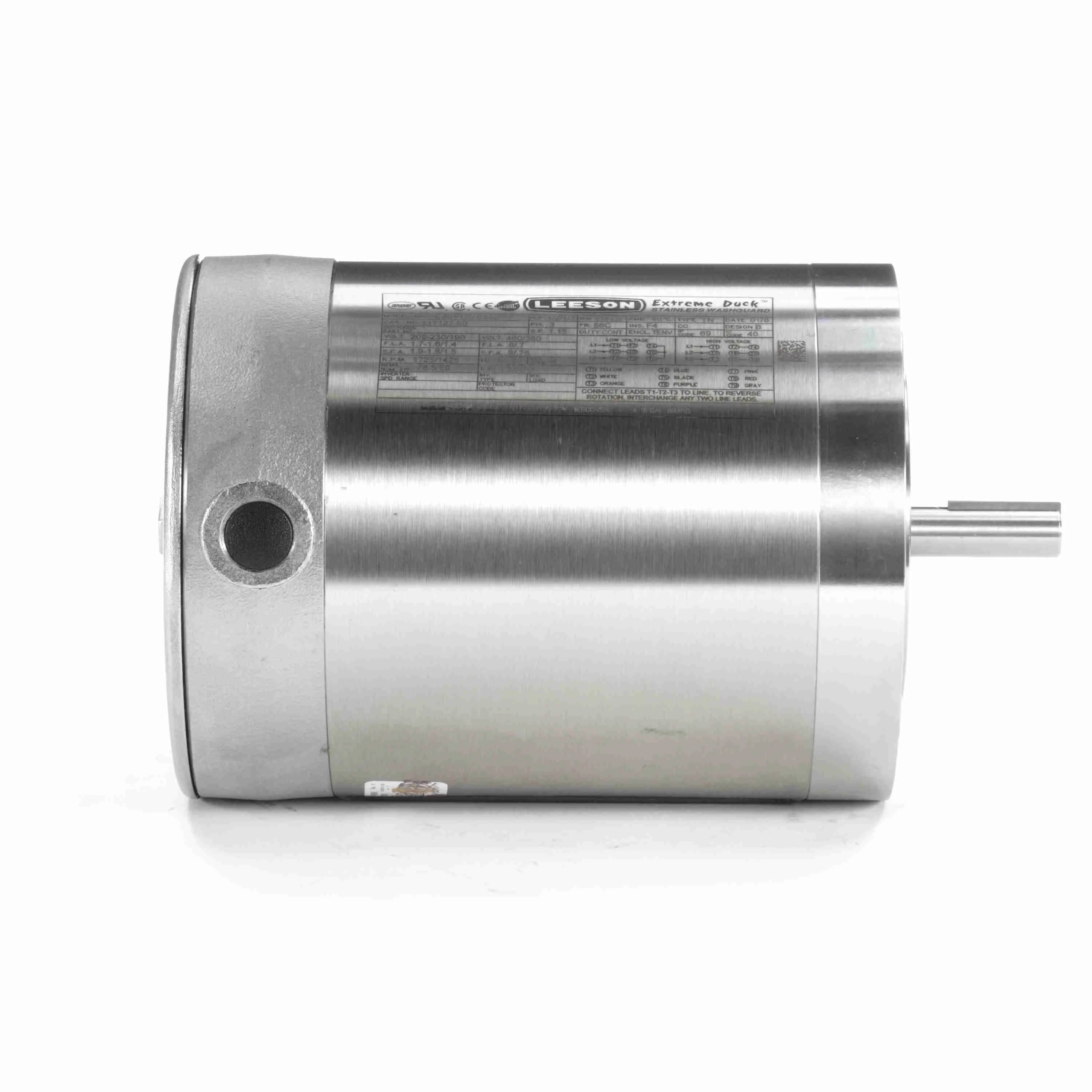

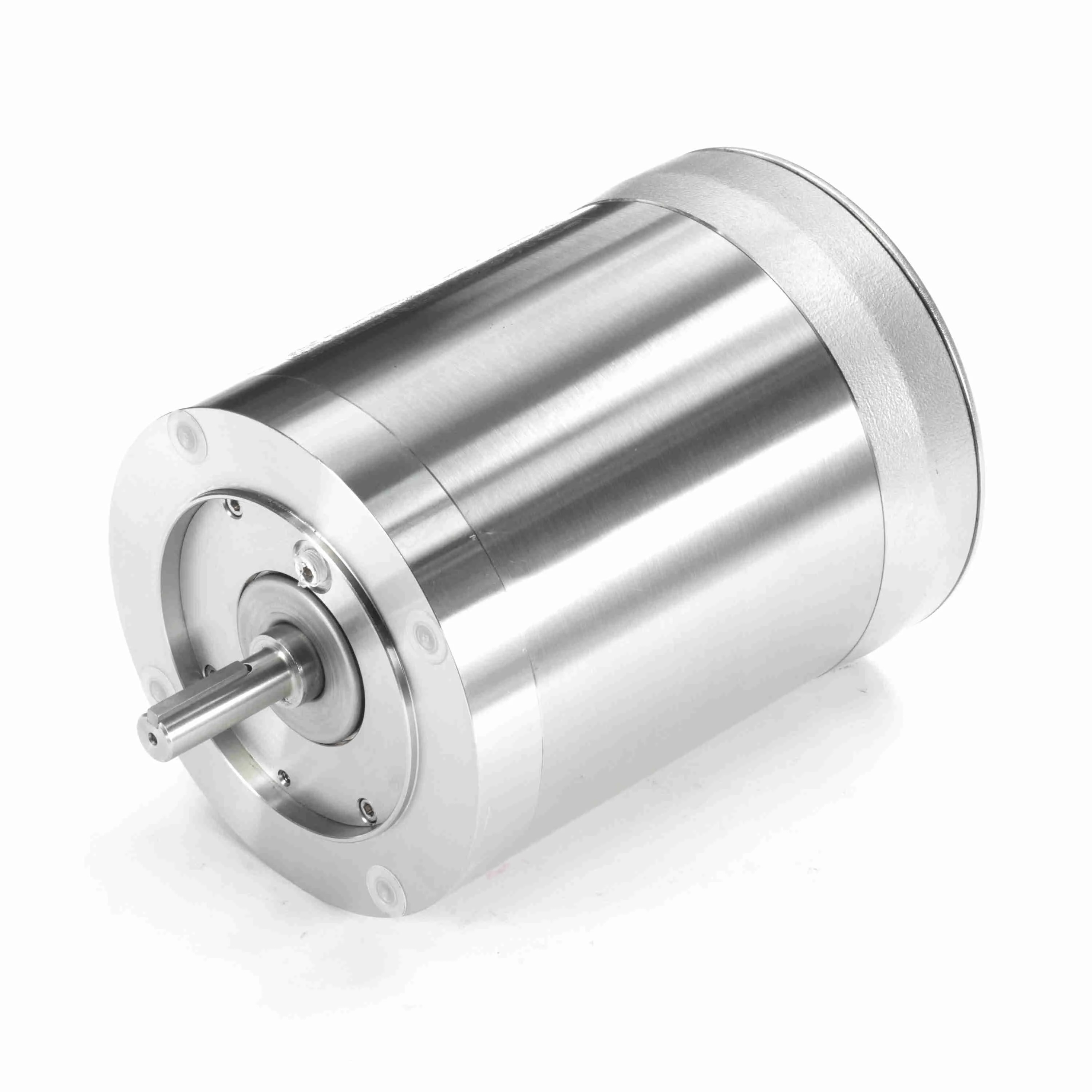

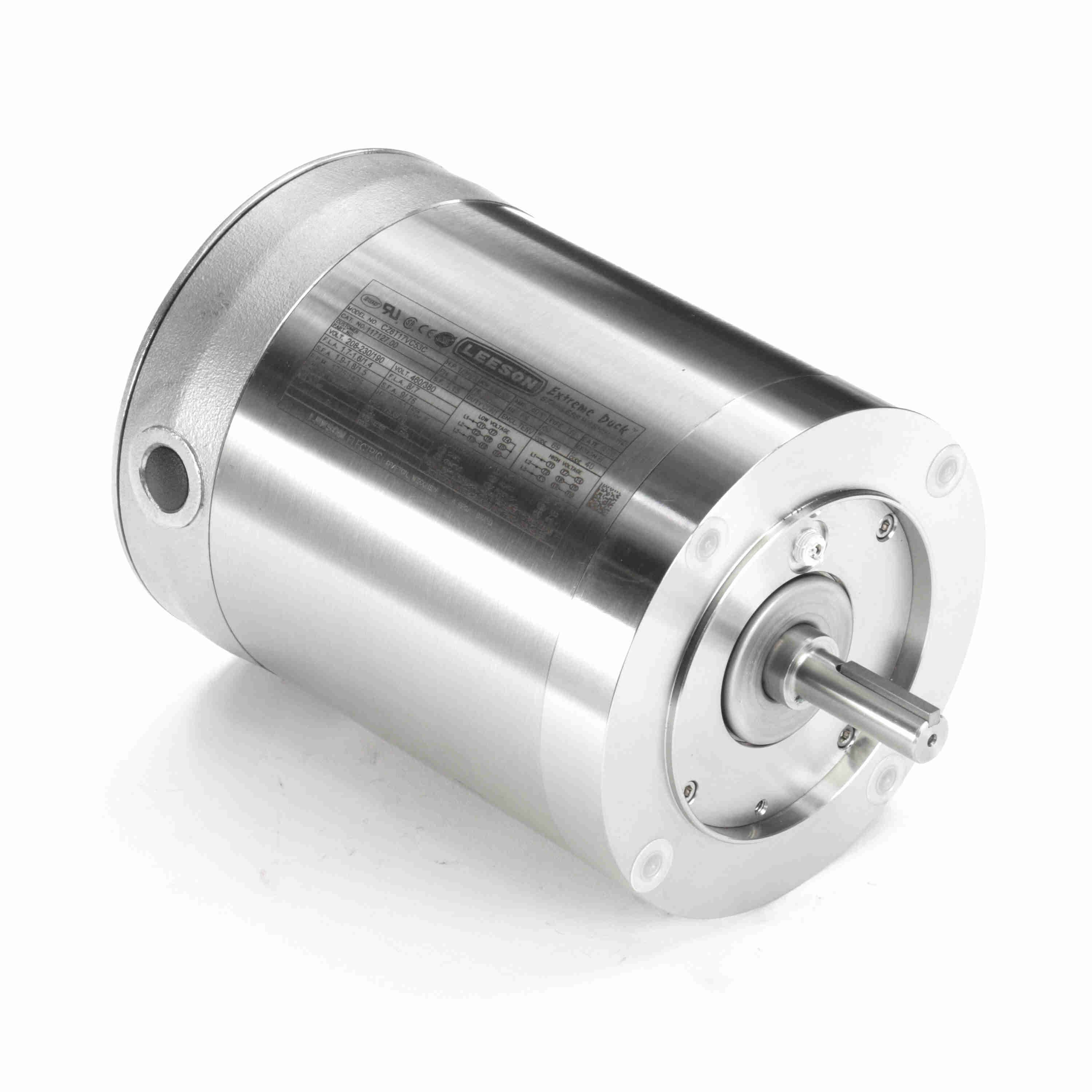

LEESON 117127.00 CZ6T17TC1D General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AE2MBT
Model: 117127.00
In Stock

Get it by Friday, Apr 17

£1537.58/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 104°F
Amps 1.6/0.8A
Application Washdown
Bearing Type Ball
Body Dia. 6 14/25"
Bolt Circle Dia. 5 7/8"
Conduit Box Oversized Stainless Steel Bicb And Threaded Cover With O Ring
Conduit Box Location Exterior
Conduit Box Position F1
Design Code B
Drain Plug None
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 78.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tenv
Endshield Material Stainless Steel
Finish Paint Free
Frame 56C
Frame Length 5 3/4"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 1.6A
Height 10 22/25"
Hp 1/2 hp
Hz 50/60 Hz
Includes Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover
Ins. Class Class F
Insulation Class Class F
Ip Code IP69
Kva Code K
Kw 0.37 kW
Length 19 1/2"
Length Less Shaft 9"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Max. Rpm 1725 RPM
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Face
Nameplate Rpm 1725 RPM
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 78.5%
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Overall Length 11"
Phase 3
Power Factor 73.6
Product Datasheet leeson-117127-00.pdf
Product Type Washdown Motor
Resistance Main 8.17 ohms
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Material Stainless Steel
Shaft Type NEMA 56
Standard Logo ce.png, csa.png, ul.png
Standards Bissc Approved, Csa Certified, Ul Recognized
Starting Method Across The Line
Thermal Protection No Protection
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230/460V
Width 10 11/25"
Motor Thermal Protection None

Product Details

Shipping Information

Height 27.64
Length 49.53
Width 26.52
HS Code 8501514040
Country Of Origin US
Weight 19.350000
