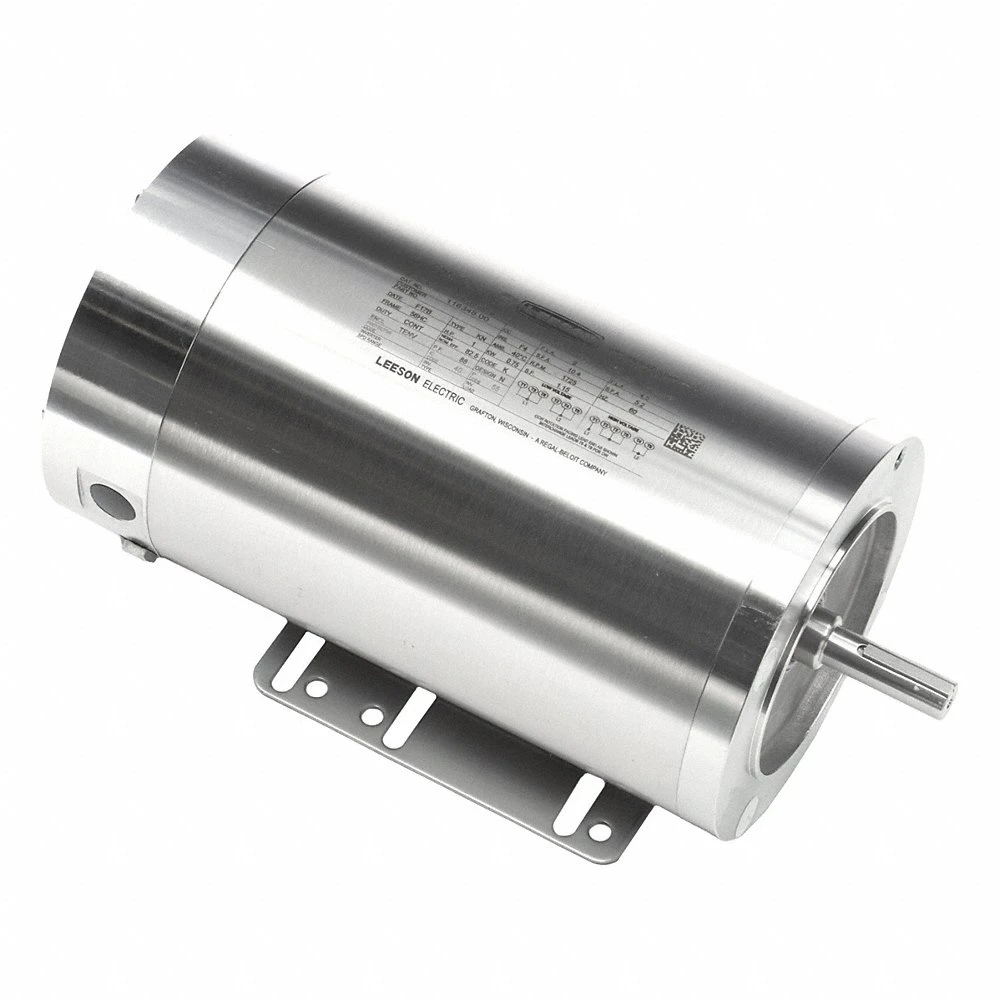

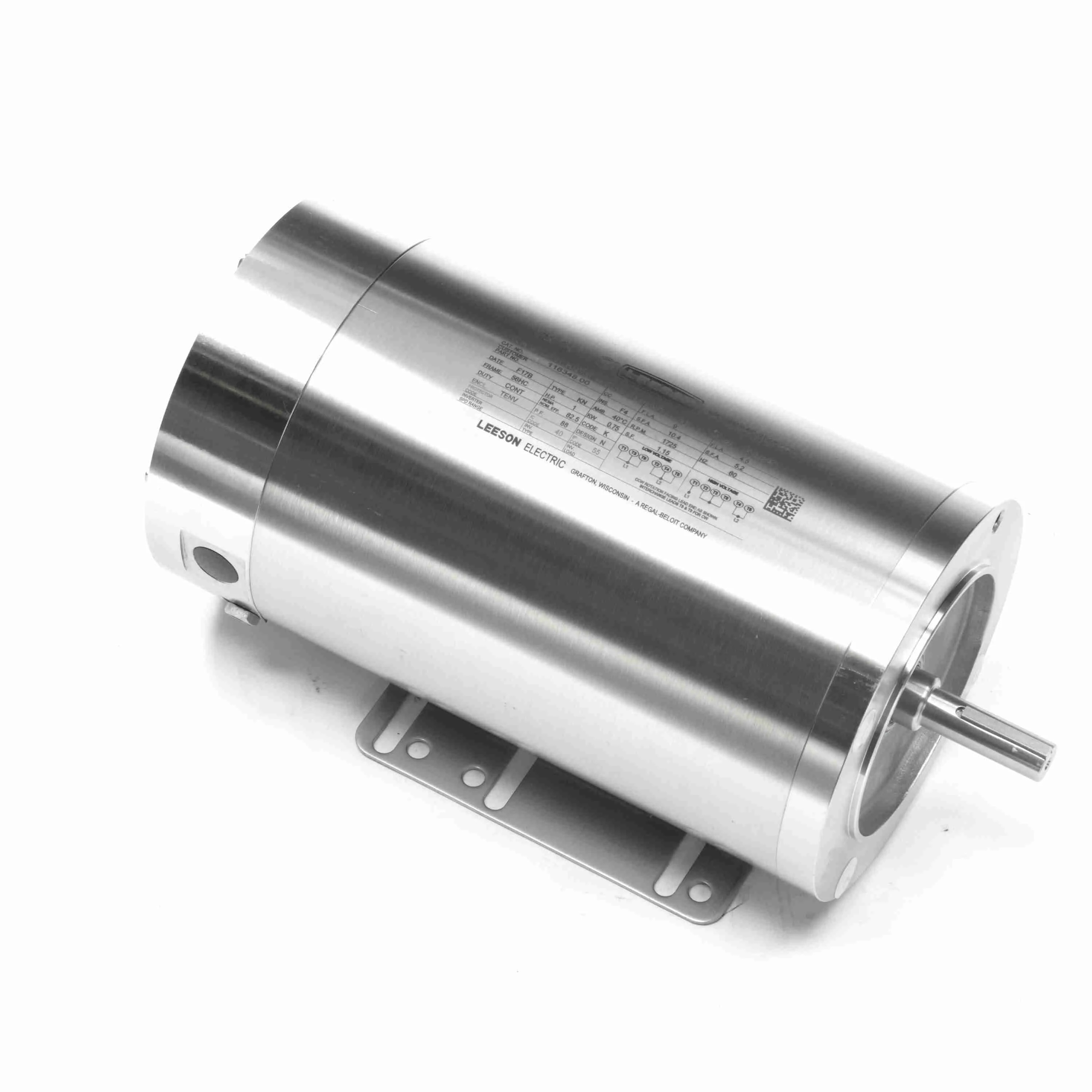

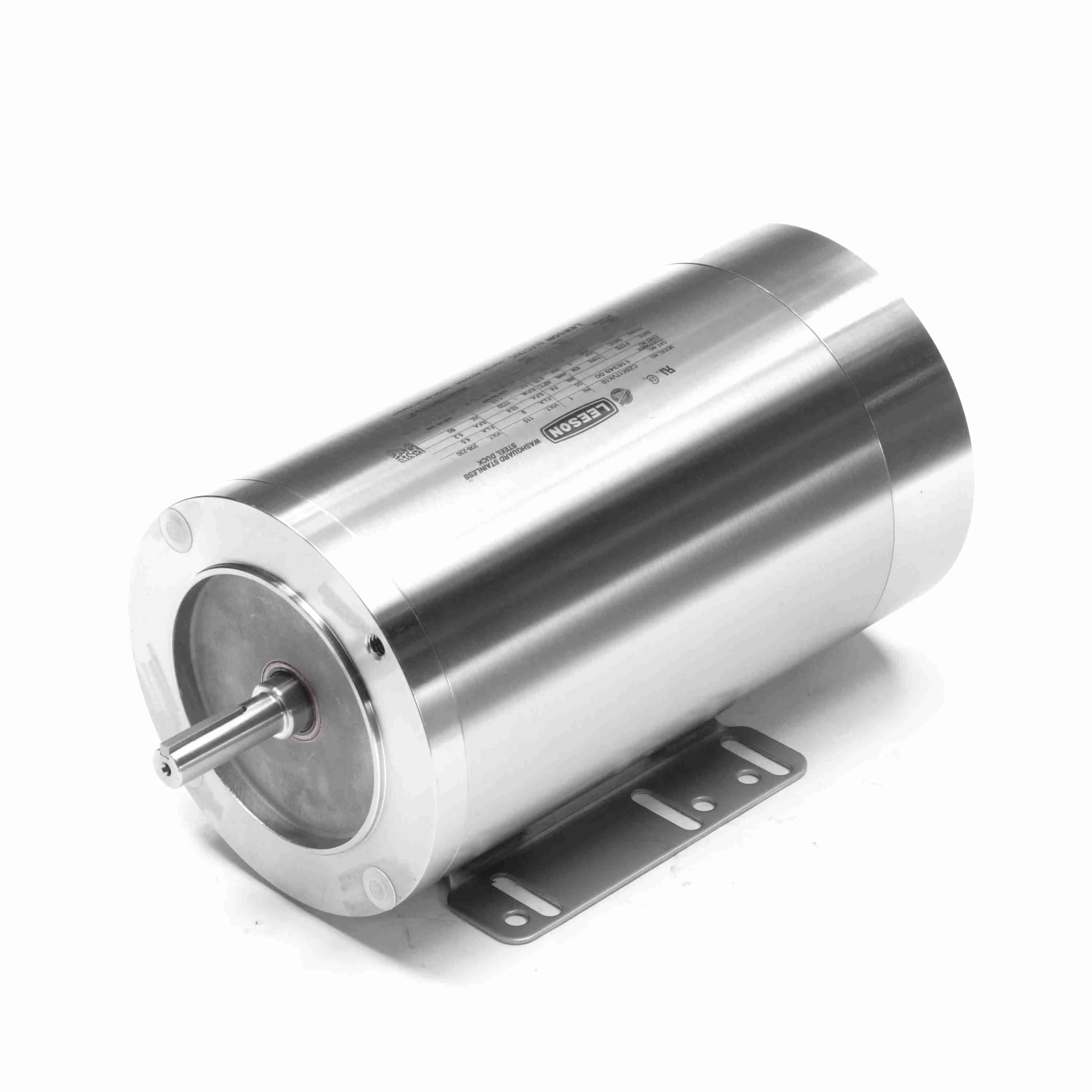

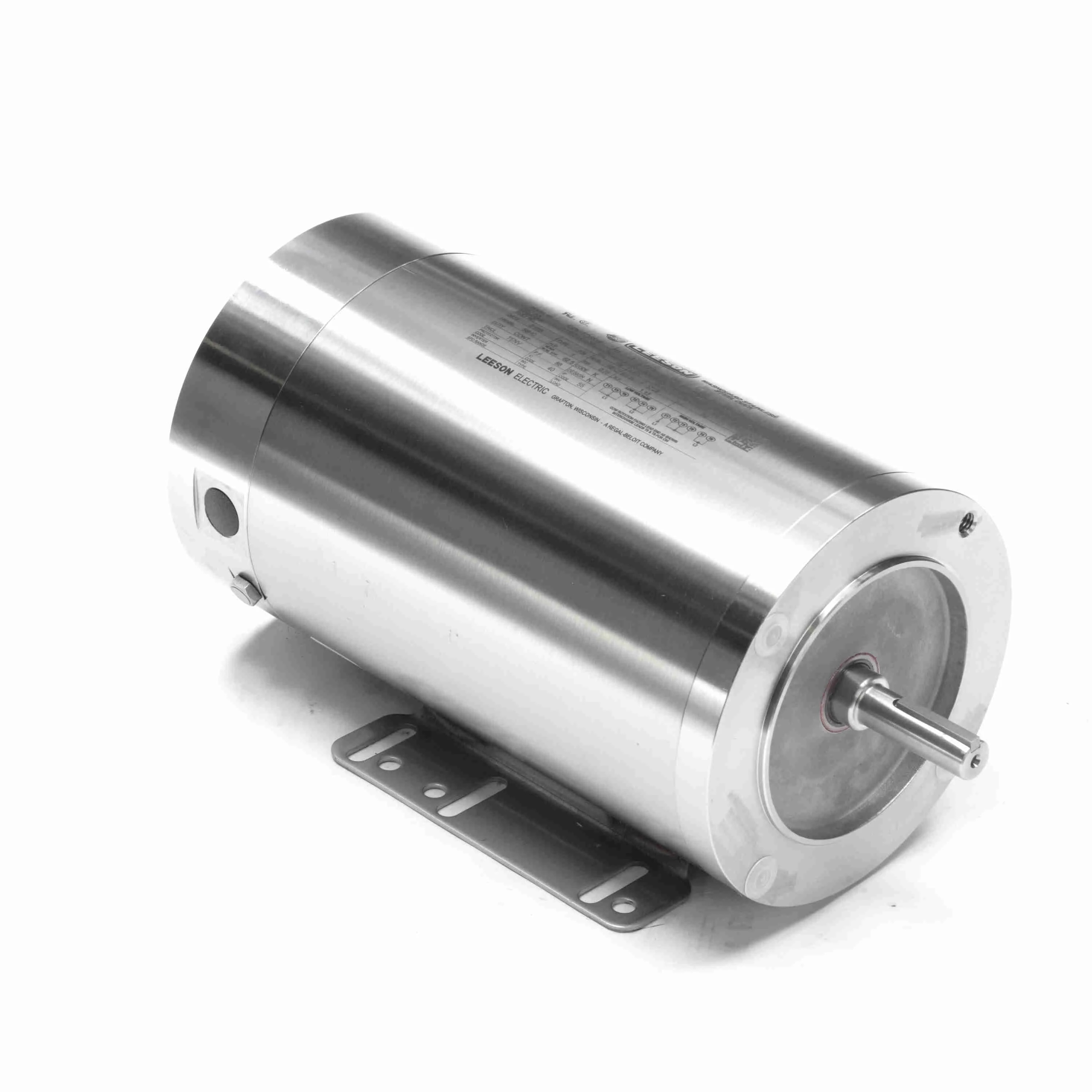

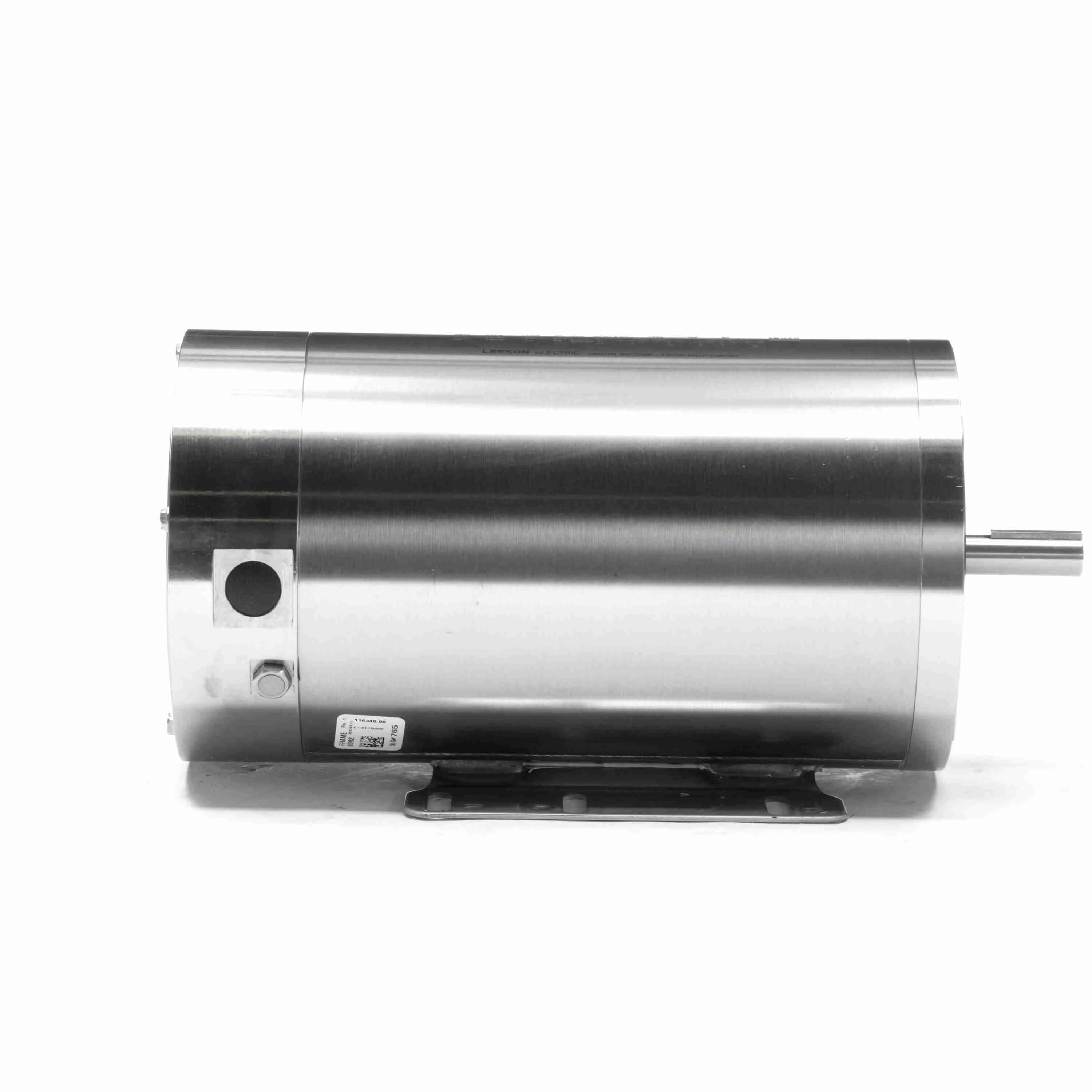

LEESON 116348.00 CZ6K17VK1B Washdown Motor, Capacitor-Start/Run, 1 HP, 1725 RPM, 115/230V AC, TENV
Item: EA7UFZ
Model: 116348.00
In Stock
Get it by Thursday, Apr 16
5.00% off
£3342.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Frame Finish | Painted Epoxy Coated, Epoxy Coated |
|---|---|
| Frame Type | 56HC |
| frequency | 60 Hz |
| Full Load Amps | 9/4.5A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Motor Application | General Purpose |
| Motor Design | Capacitor-Start, Run |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | C-Face, Rigid Base |
| Motor Service Factor | 1.15 |
|---|---|
| Motor Shaft Rotation | CW, CCW |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Voltage | 115/230V AC |
| Phase | 1 |
| Rpm Range | 1701-1800/1400-1800 RPM |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Voltage Compatibility | 115/230V AC |
Product Details
Washdown Motor
Shipping Information
| height | 27.64 |
|---|---|
| length | 49.53 |
| width | 26.52 |
| country of origin | US |
|---|---|
| weight | 22.050000 |
