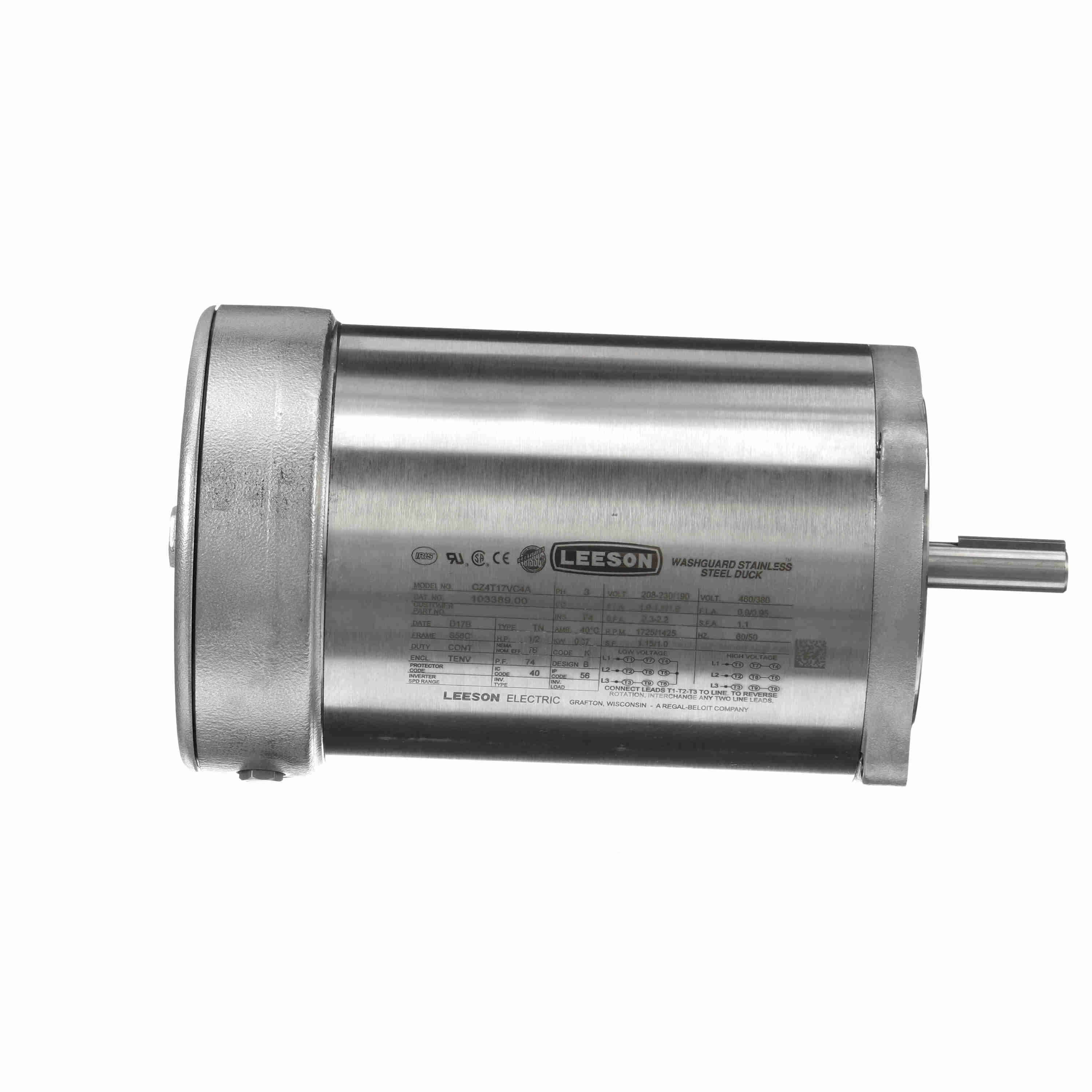

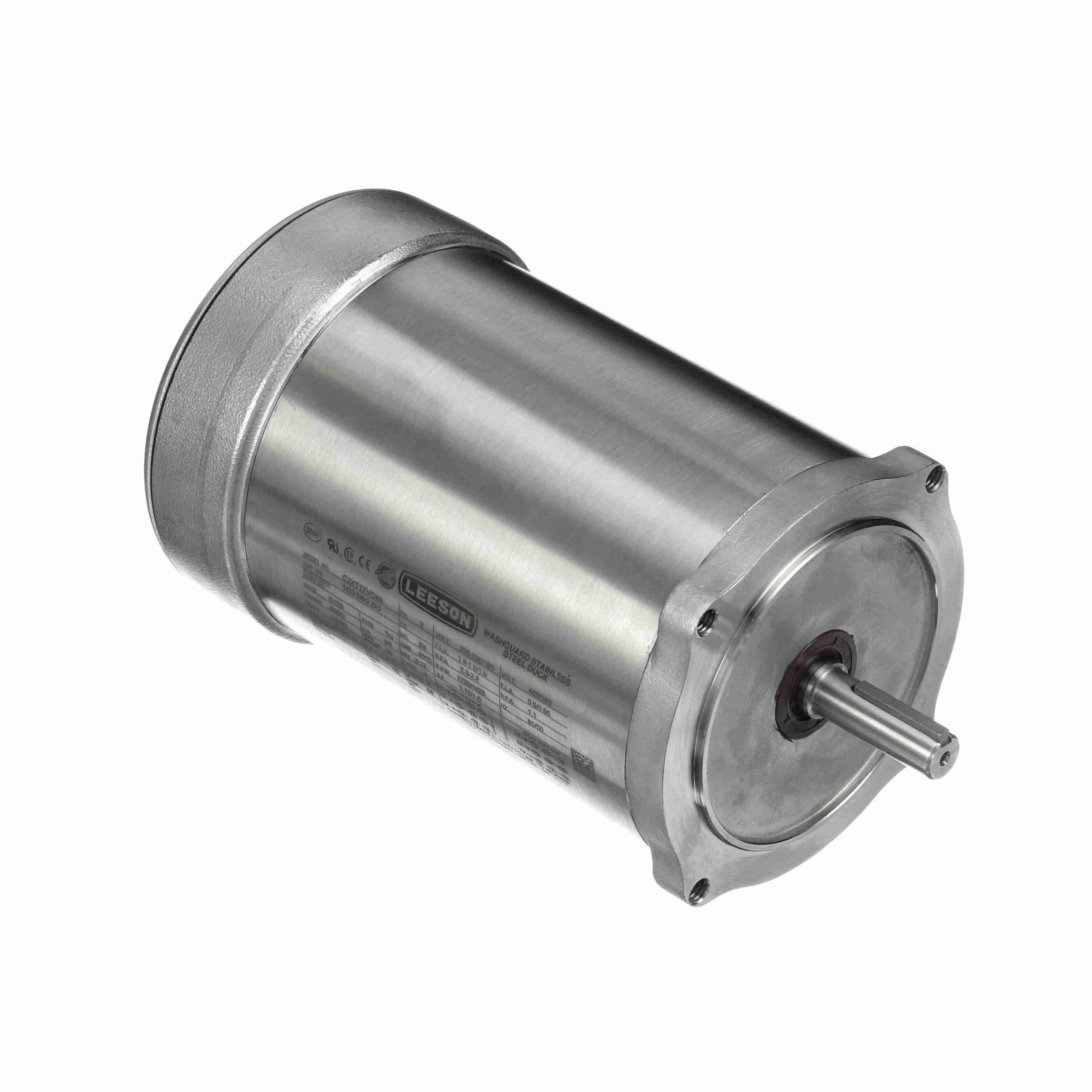

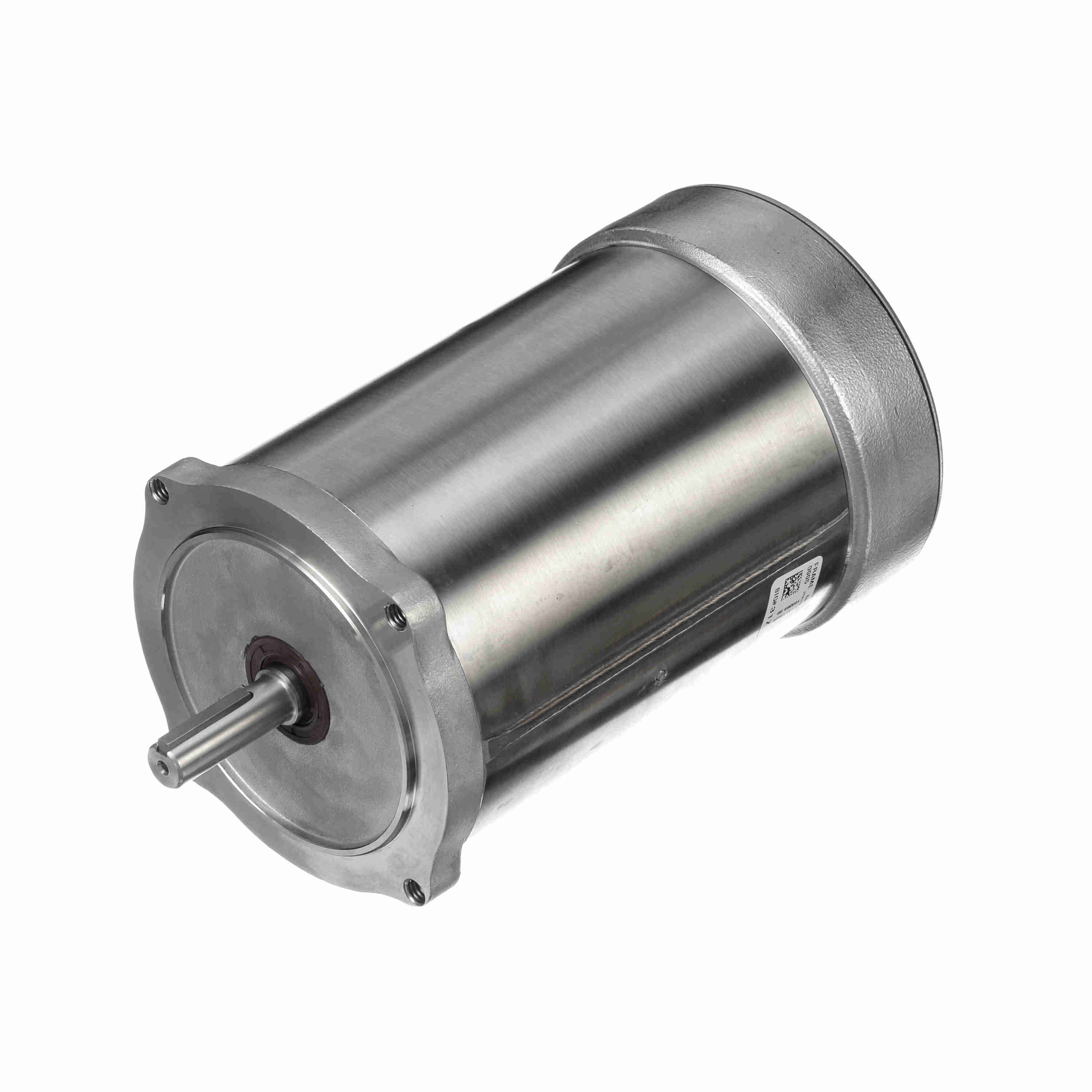

LEESON 103389.00 CZ4T17VC4A General Purpose Motor, 0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Item: AJ2PRF
Model: 103389.00
In Stock
Get it by Friday, Apr 17
£1248.65/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Washdown Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 1.8/0.9A |
| Assembly | 40027 |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6204 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 76% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Frame | S56C |
| Frame Length | 6 3/4" |
| Frame Material | Stainless Steel |
| Frame Type | S56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.9-1.8/0.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP56 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
|---|---|
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6204 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 74 |
| Product Datasheet | leeson-103389-00.pdf |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standard Logo | ce.png, csa.png, ul.png |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Product Details
Shipping Information
| Height | 27.64 |
|---|---|
| Length | 49.53 |
| Width | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight | 13.500000 |
Related Products
| Style | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Ambient Temp. | Type | Shaft Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 132447.00 | 230/460V | 3 hp | 1770 RPM | 182TC | 7.8/3.9A | 104°F | TF | 1 1/8" | 3,388.44 | |
| B | 132448.00 | 230/460V | 5 hp | 1725 RPM | 184TC | 12.6/6.3A | 104°F | TF | 1 1/8" | 2,321.40 | |
| C | 132449.00 | 208-230/460V AC | 5 hp | 3495 RPM | 184TC | 12-13.2/6A | 104°F | TF | 1 1/8" | 3,768.02 |
