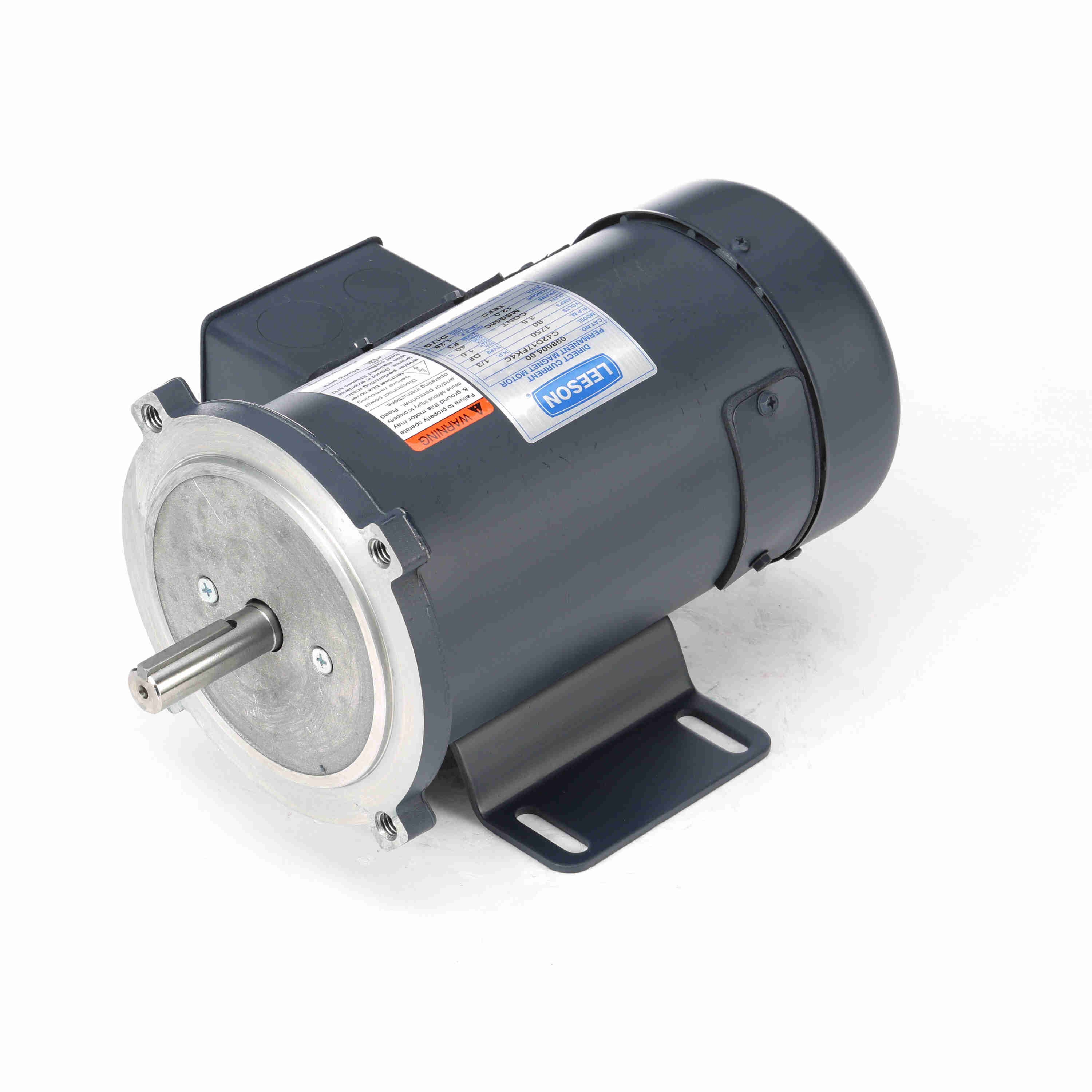

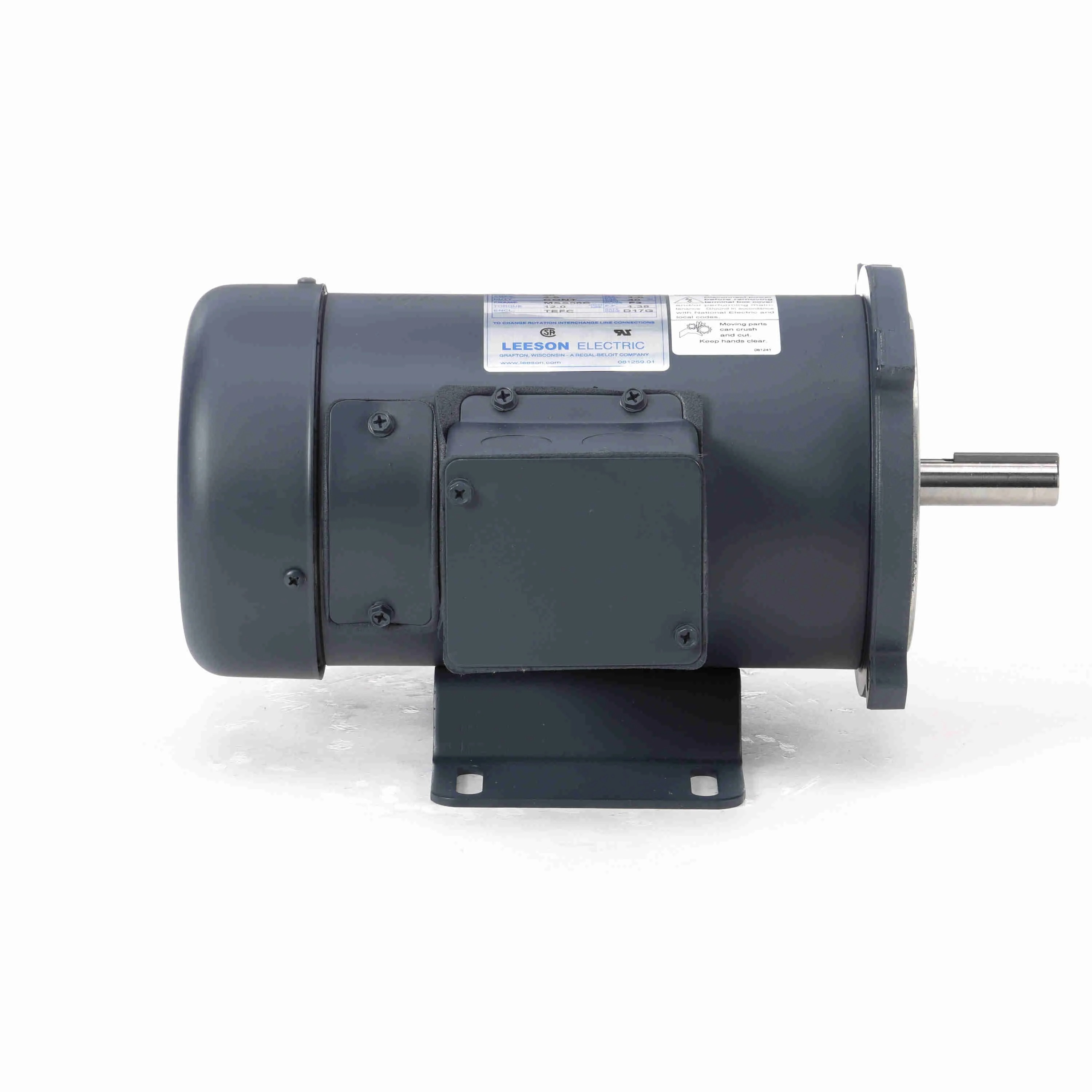

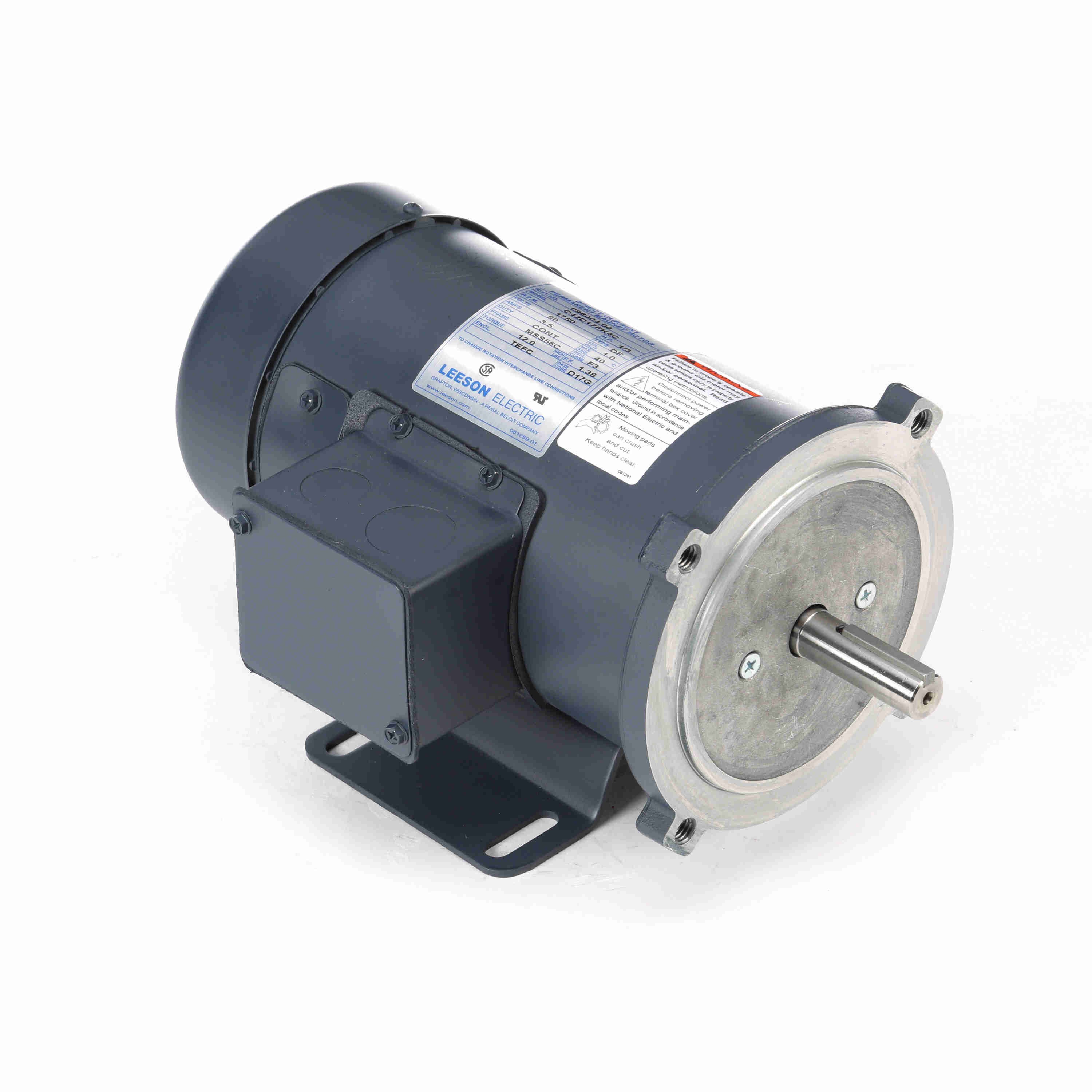

LEESON 098004.00 C42D17FK4C SCR Motor, 0.33 HP, 90V, 1750 RPM
Item: AJ2PFD
Model: 098004.00
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹941.490000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | DC Motor |
|---|---|
| Amps | 3.5A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 7" |
| Frame Type | SS56C |
| Full Load Amps | 3.5A |
| Full Load Torque | 12 lbs.-in. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.25 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9 5/16" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Studs | 4 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11 5/16" |
| Packaging | PG659201.04A |
| Power | 0.25 kW |
| Removable Base | Yes |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Standard Logo | ul.png |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 90V |
| Width | 10 11/25" |
| Motor Thermal Protection | None |
| standard | CSA (LR2025), UL (E49747) |
Product Details
- Bearing OPE: 6203
- Bearing PE: 6203
- Eff 100%: 82%
- Nameplate: 081259
- Winding: D4729
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Shipping Information
| height | 27.64 |
|---|---|
| length | 36.68 |
| width | 26.52 |
| country of origin | US |
|---|---|
| weight | 11.700000 |
