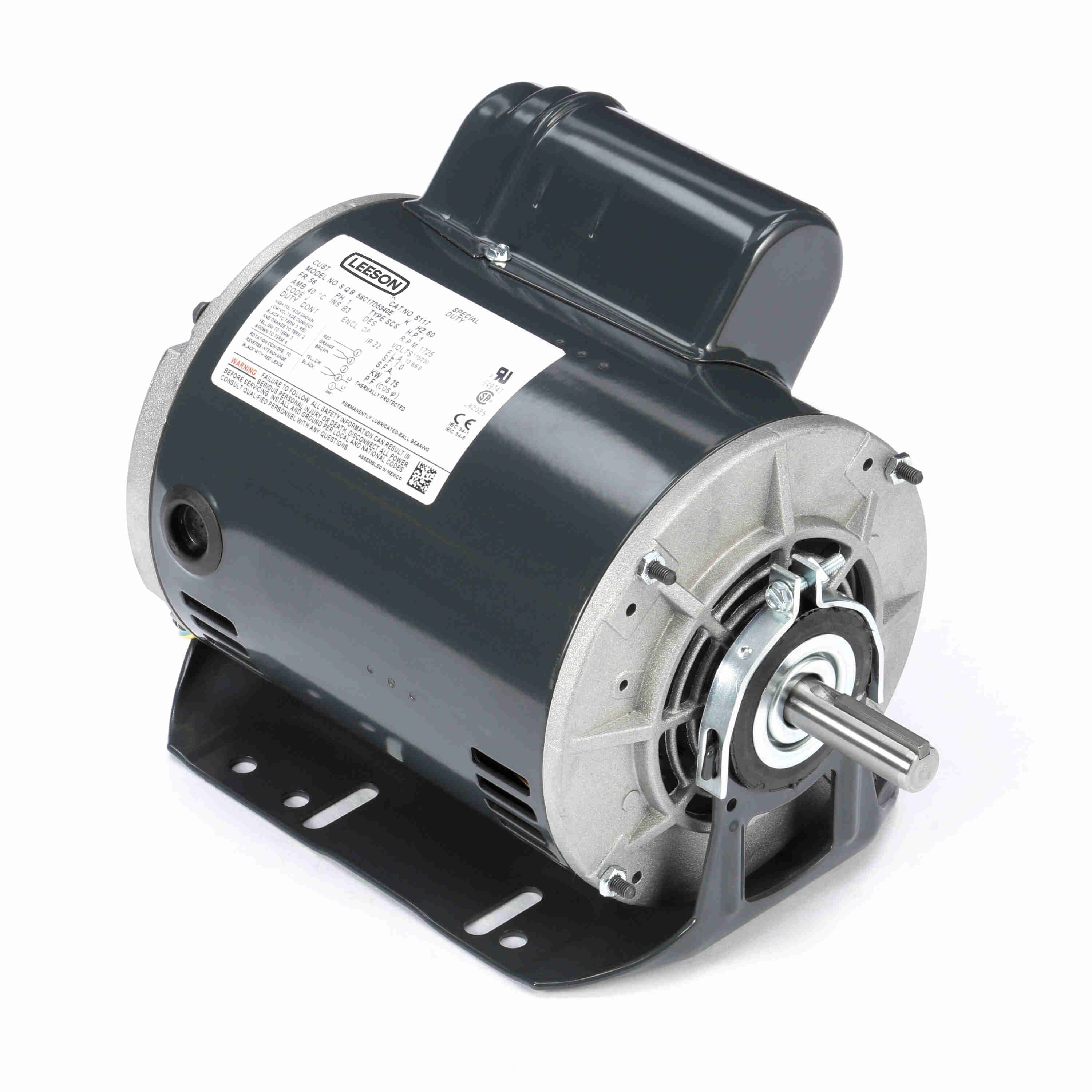

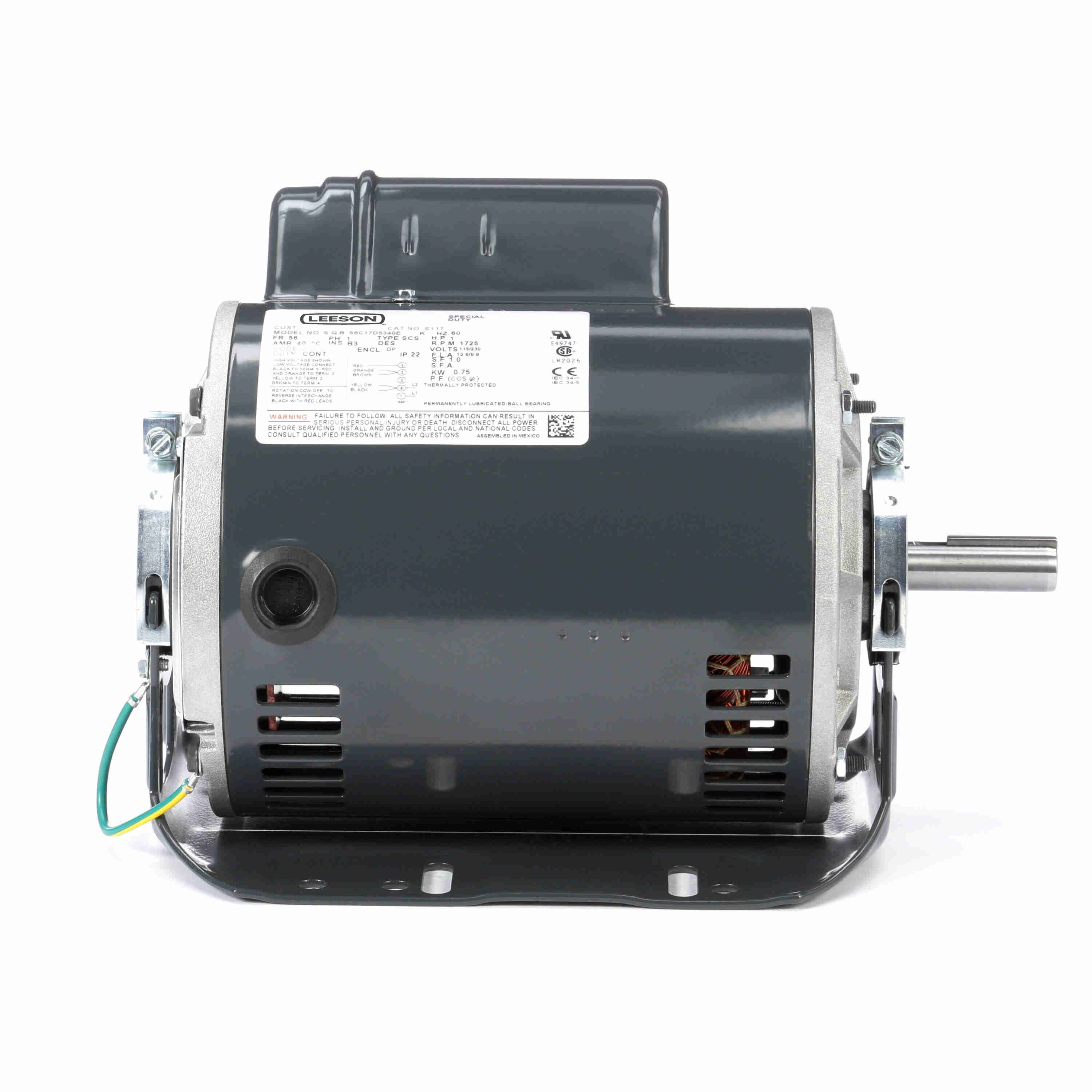

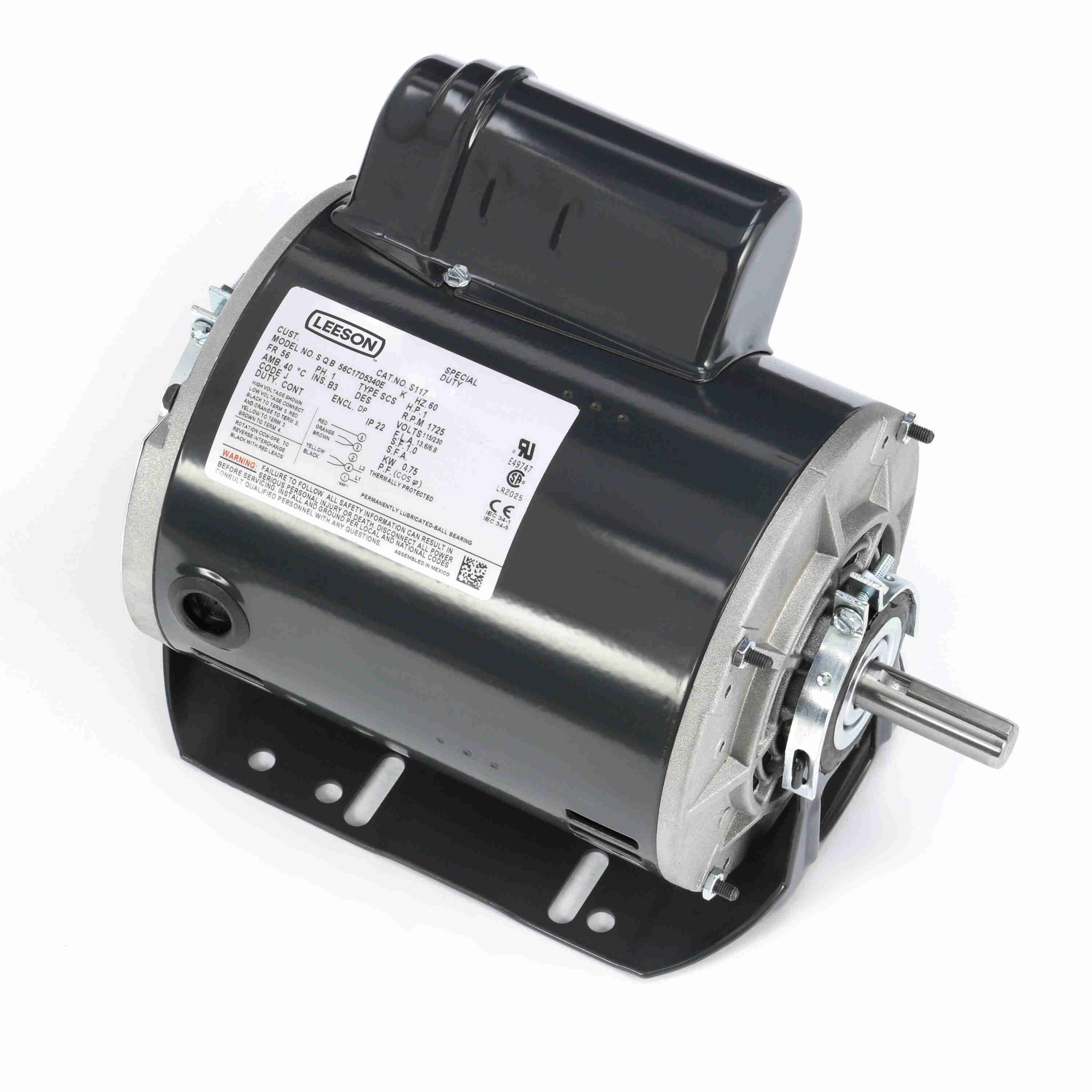

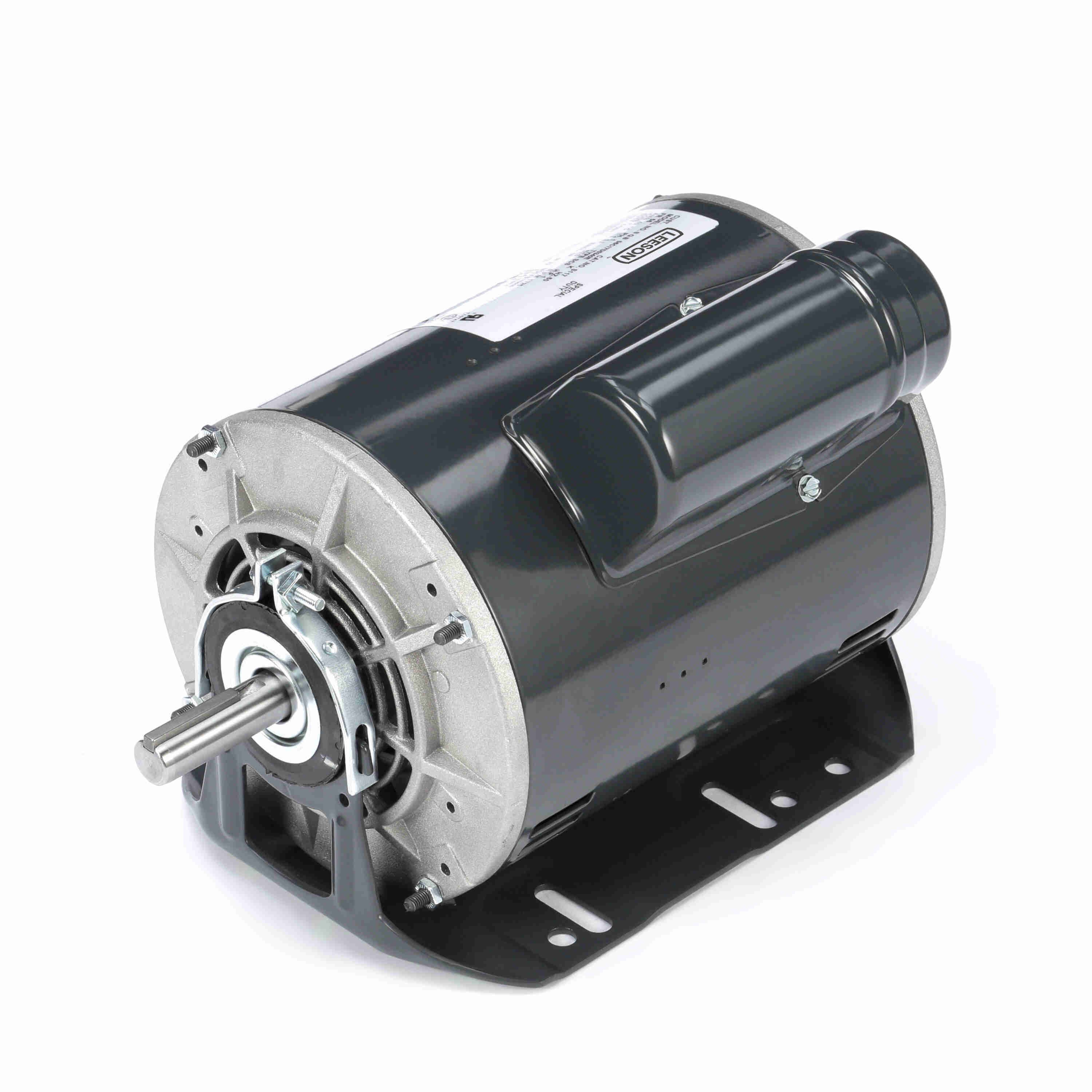

LEESON 056C17D5340 56C17D5340E / S117 General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Item: AF6NGP
Model: 056C17D5340
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
£685.240000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 40°C |
|---|---|
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 7/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Overall Length | 11 3/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Standard Logo | ce.png,csa.png,ul.png |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
Product Details
HVAC Motor
Shipping Information
| height | 19.68 |
|---|---|
| length | 33.66 |
| width | 24.43 |
| hs code | 8501406040 |
|---|---|
| country of origin | MX |
| weight | 13.050000 |
