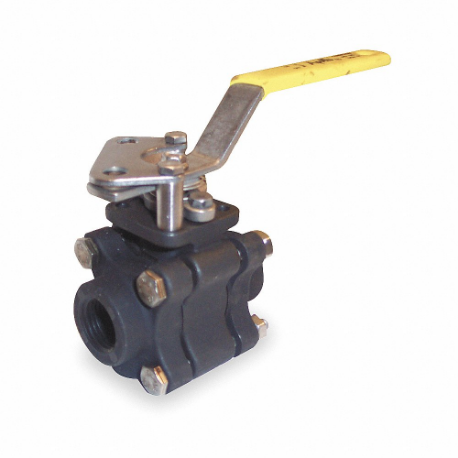

JOMAR VALVE T-CS-2001N-SS-4B Ball Valve, Carbon Steel, 2 Way, 3 Piece, 1 Inch Pipe Size
Item: CH6RUE
Model: T-CS-2001N-SS-4B
25 In Stock
Ships within 2 days via
5.00% off
£299.08/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| 3-a Compliance | Not Rated |
|---|---|
| Ball Grade | Grade CF8M , Stainless Steel |
| Ball Opening Size | 0.81" |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Style | 2-Way |
| Coefficient Of Volume (cv) | 75 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Gas, Liquids |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Height | 3.19" |
| Handle Length | 5" |
| Handle Material Grade | Carbon Steel , Grade A283 |
| Handle Type | Lever |
| Hose I.d. | 1" |
| Max. Pressure | 150 psi |
| Max. Pressure (combustible Gas) | Not Rated |
|---|---|
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. Range | -20°F to +500°F |
| Media Temperature Range | -20°F to +500°F |
| Nominal Valve Size | 1" |
| Overall Length | 3.5" |
| Pipe Size | 1" |
| Port | Standard |
| Seal Material | TFM |
| Seat Material | MPTFE |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +500°F |
| Tube Size | 1" |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Design | Three Piece |
| Valve Series | 601 Series |
| Vented Ball Valve | Non Vented |
| standard | ANSI B1.20.1, ANSI B16.11, API 598, BUY AMERICAN ACT (BAA), NACE CERTIFIED, UL LISTED |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
| Country Of Origin | Taiwan |
|---|---|
| Weight | 1.687500 |
Related Products
| Style | Model | Seat Material | Seal Material | Stem Material | Overall Length | Ball Grade | Handle Material Grade | Body Material | Max. Steam Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T-CS-2001N-SS-4B | MPTFE | TFM | 316 Stainless Steel | 2.72" | - | - | Carbon Steel | 150 psi WSP | 154.96 | |
| A | T-CS-2001N-SS-4B | TFMTM | Graphite | - | - | - | - | Carbon Steel | - | 588.88 | |
| A | T-CS-2001N-SS-4B | - | - | - | - | - | - | - | 150 psi WSP | 184.74 |
