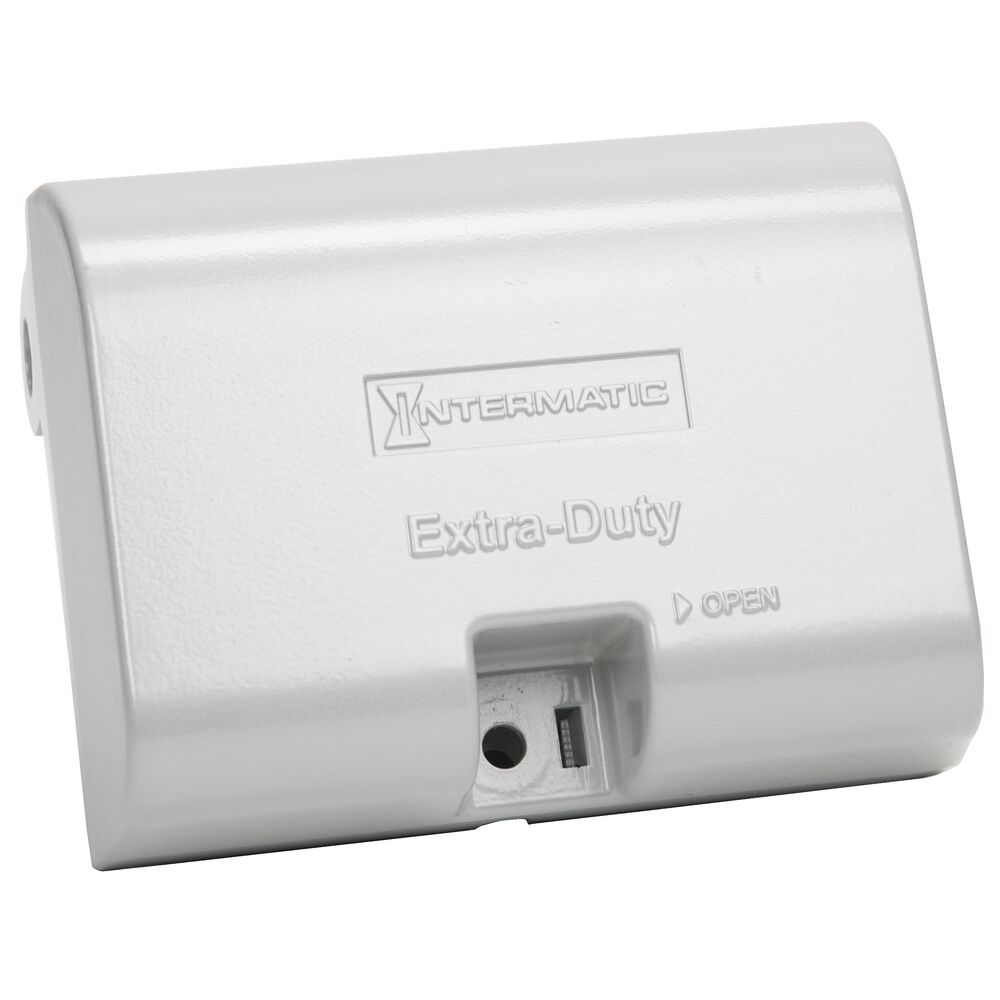

INTERMATIC WP1010HMXD While In Use Weatherproof Cover, Die-Cast Aluminum, 3 1/8 Inch Depth, Horizontal

Item: CJ3VCX
Model: WP1010HMXD
22 In Stock

Ships within 2 days via

£52.8
5.00% off
£50.15/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Box Type Single
Color Gray
Cover Gasket Size 3 mm
Cover Material Die Cast Aluminum
Depth 3 1/8"
Enclosure Material Metal
Enclosure Type Outdoor 3R Type
For Electrical Component Type Decora, Gcfi, Duplex, Toggle Switch
Gasket Material Neoprene
Has Reinforced Hinge Pin Yes
Height 4.444"
Hinge Direction Horizontal
Includes Base, Cover Assembly, Gasket, Mounting Screws
Insert Types Included WP17
Is Extra-duty Rated Yes
Locable Hasp Max. Dia. 1/4"
Material Die Cast Aluminum
Max. Cord Size 12 AWG
Mounting Orientation Horizontal
Nema Enclosure Rating NEMA 3R
Number Of Gangs 1
Number Of Wires 1
Other Certifications REACH
Overall Depth 3 1/8"
Overall Height 4 7/16"
Overall Width 5 3/4"
Product Datasheet intermatic-wp1010hmxd.pdf
Warranty 1 yr.
Width 5 3/4"
standard CEC ARTICLE 26-702, CULUS LISTED, NEC ARTICLE 406.9 (B)(1), UL LISTED

Product Details

Shipping Information

Height 11.21
Length 7.9
Width 14.6
Country Of Origin CN
Weight 0.517500
