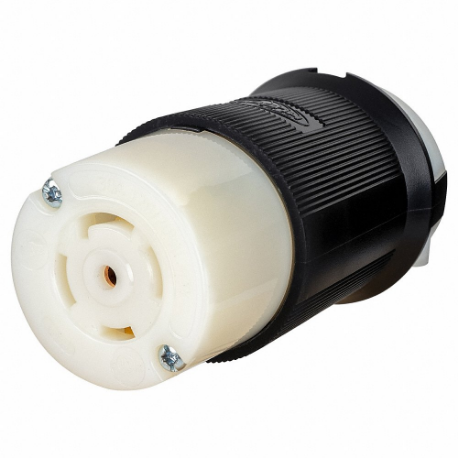

| Item | Locking Connector |
| Amps | 30A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Federal |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | IP20 |
| Length | 2.33" |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Receptacle Configuration | NEMA L21-30R |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Phase | Three |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Voltage | 120/208V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
| Cap Type | No Cap or Cover |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Current Rating | 30 A |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black; White |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75 °C |
| Maximum Operating Temperature | 75 Degrees C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40 Degrees C |
| Minimum Operating Temperature | -40 °C |
| Minimum Wire Size | 16 AWG |
| Nema Configuration | No |
| Nema Configuration | L21-30 |
| Nema Receptacle Configuration | L21-30R |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Overall Length | 2.33" |
| Overall Length | 2.33 in |
| Phase | Three |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Standards | CSA C22.2 No. 42; Federal Specification W-C-596; UL 498 |
| Standards | CSA C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Spring Clamp Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
