| Amps | 60A |
|---|---|
| Circuit Breaker | No |
| Circuit Breaker Amp Rating | 60A |
| Color | Orange |
| Contact Material | Brass |
| Current Rating | 60A |
| Electrical Connection Type | Pin And Sleeve |
| Exposure Conditions | Wateright |
| Fuse Protection | Fused |
| Fuse Type | Class J |
| Grounding | Grounded |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP66 |
| Material | Thermoplastic |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
|---|---|
| Minimum Wire Size | 8 AWG |
| Mounting Style | Screw |
| Nema Enclosure Rating | Not Rated |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Overall Height | 15.36" |
| Overall Width | 10.18" |
| Phase | 1 |
| Receptacle Type | Pin And Sleeve |
| Resistance Properties | Watertight |
| Reverse Service | No |
| Standards | Csa Certified, Culus |
| Ul 94 Flammability Rating | V-0, 5 VA |
| Viewing Window | No |
| Voltage Rating | 120/240V AC |
| Wattage | 15000 W |
| Wire Size | 8 AWG to 2 AWG |

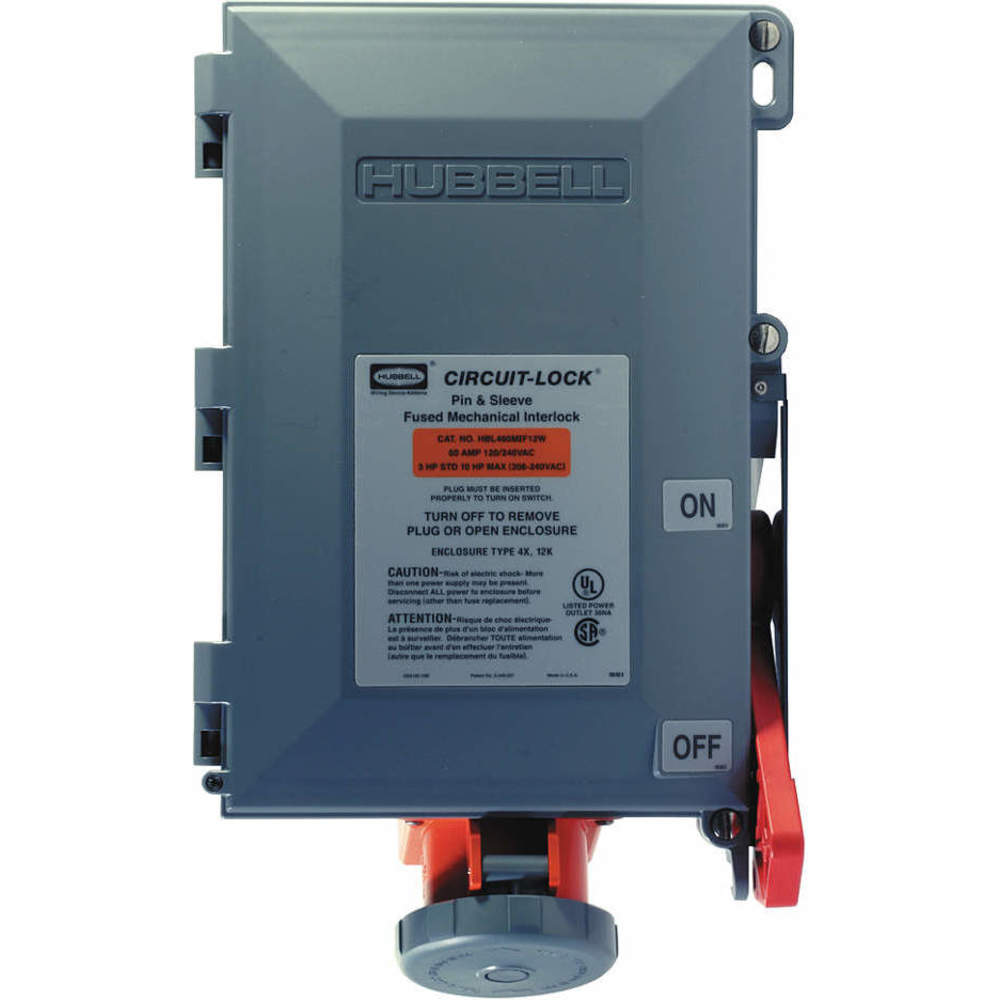

Circuit-lock Watertight Mechanical Interlock Device
| height | 39.01 |
|---|---|
| length | 48.77 |
| width | 25.86 |
| hs code | 8536908085 |
|---|---|
| country of origin | US |
| weight | 8.527500 |
| Style | Model | Current Rating | Phase | Number Of Poles | Number Of Wires | Color | Hp | Amps | Wire Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL420MI7W | 20A | 3 | 3 | 4 | Red | - | 20A | 14 AWG to 10 AWG | 1,832.57 | |
| B | HBL420MI9W | 20A | 3 | 3 | 4 | Blue | - | 20A | 14 AWG to 10 AWG | 1,871.61 | |
| C | HBL420MI5W | 20A | 3 | 3 | 4 | Black | - | 20A | 14 AWG to 10 AWG | 1,749.22 | |
| D | HBL420MI12W | 20A | 1 | 3 | 4 | Orange | - | 20A | 14 AWG to 10 AWG | 1,865.95 | |
| E | HBL430MIFS2W | 30A | 1, 3 | 3 | 4 | - | - | 30A | 12 AWG to 8 AWG | 3,204.76 | |
| E | HBL460MIFS2W | 60A | 1, 3 | 3 | 4 | - | 50 hp | 60A | 8 AWG to 2 AWG | 3,259.75 | |
| F | HBL430MIS2W | 30A | 1, 3 | 3 | 4 | - | - | 30A | 12 AWG to 8 AWG | 1,718.99 |
