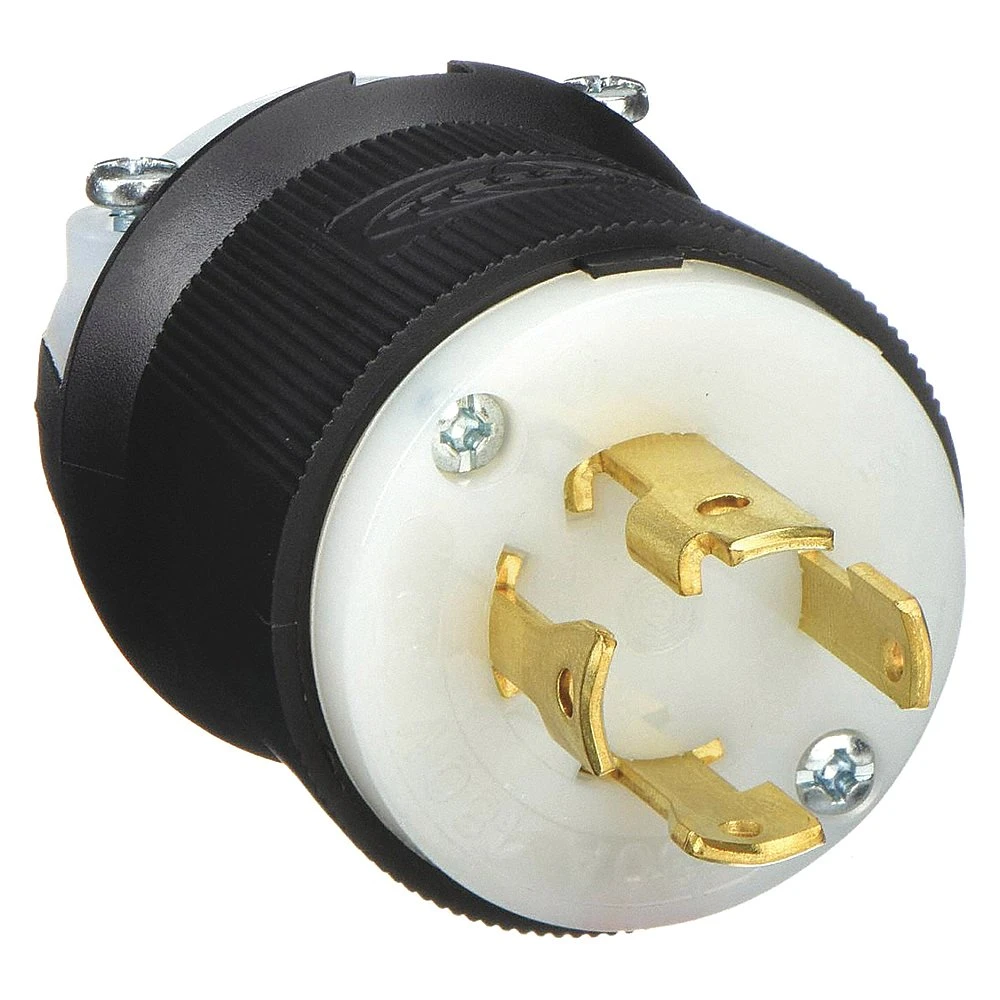

HUBBELL WIRING DEVICE-KELLEMS HBL2731 Male Plug, 30A, 3-Phase, 480VAC, 3-Pole, 4-Wire Grounding
Item: AE7QZA
Model: HBL2731
22 In Stock
Ships within 2 days via
5.00% off
£99.22/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 30A |
|---|---|
| Antimicrobial | No |
| Blade Material | Brass |
| Body Length | 2.33" |
| Cable Range | 0.35" to 1.15" |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Cord Size | 0.35" to 1.15" |
| Current Rating | 30A |
| Face Diameter | 2.21" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 2 3/4" |
| Horsepower Rating | 10 hp |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Length | 2.33" |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 10 hp |
| Maximum Operating Temperature | 75°C |
|---|---|
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Plug Configuration | L16-30P |
| Nema Rating | NEMA L16-30P |
| Number Of Blades | 4 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outside Diameter | 2.33" |
| Overall Length | 2.33" |
| Phase | 3 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 480V AC |
| Wattage | 14400 W |
| Width | 2.33" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
| standard | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, UL 498 |
Product Details
Locking Plug
Shipping Information
| height | 6.98 |
|---|---|
| length | 5.92 |
| width | 5.92 |
| hs code | 8536698000 |
|---|---|
| country of origin | US |
| weight | 0.135000 |
Related Products
| Style | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Wiring Style | Shrouded | Housing Color | Ip Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL4720CBK | 1 | 2 | 15A | 125V AC | Standard | No | Black | IP20 | 36.39 | |
| B | HBL2311BK | 1 | 2 | 20A | 125V AC | Standard | No | Black | IP20 | 42.33 | |
| C | HBL2611BK | 1 | 2 | 30A | 125V AC | Standard | No | Black | IP20 | 65.23 | |
| D | HBL2321BK | 1 | 2 | 20A | 250V AC | Standard | No | Black | IP20 | 38.96 | |
| E | HBL2621BK | 1 | 2 | 30A | 250V AC | Standard | No | Black | IP20 | 71.66 | |
| F | HBL2511BK | 3 | 4 | 20A | 120/208V AC | Standard | No | Black | IP20 | 77.46 | |
| G | HBL2811BK | 3 | 4 | 30A | 120/208V AC | Standard | No | Black | IP20 | 96.30 |
