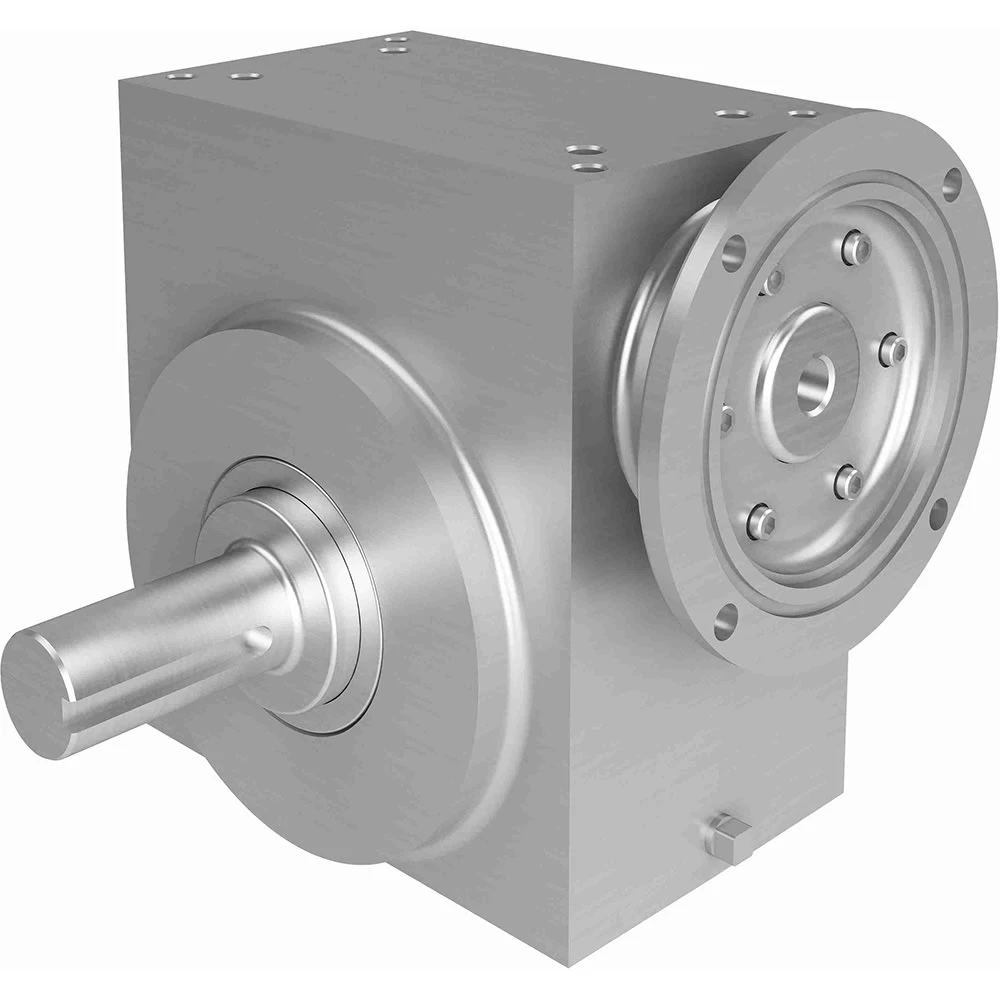

HUB CITY 0270-09207 Worm Reducer, 2.114 Hp, 1.500 Inch I.D, 0.875 Inch O.D, Stainless Steel
Item: AX9TMJ
Model: 0270-09207
In Stock
Get it by Thursday, Apr 16
£3718.96/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 2.114 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Rpm | 29.2 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 60:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 3274 lbs.-in. |
Product Details
Shipping Information
| height | 38.1 |
|---|---|
| length | 50.8 |
| width | 38.1 |
|---|---|
| weight | 35.550000 |
