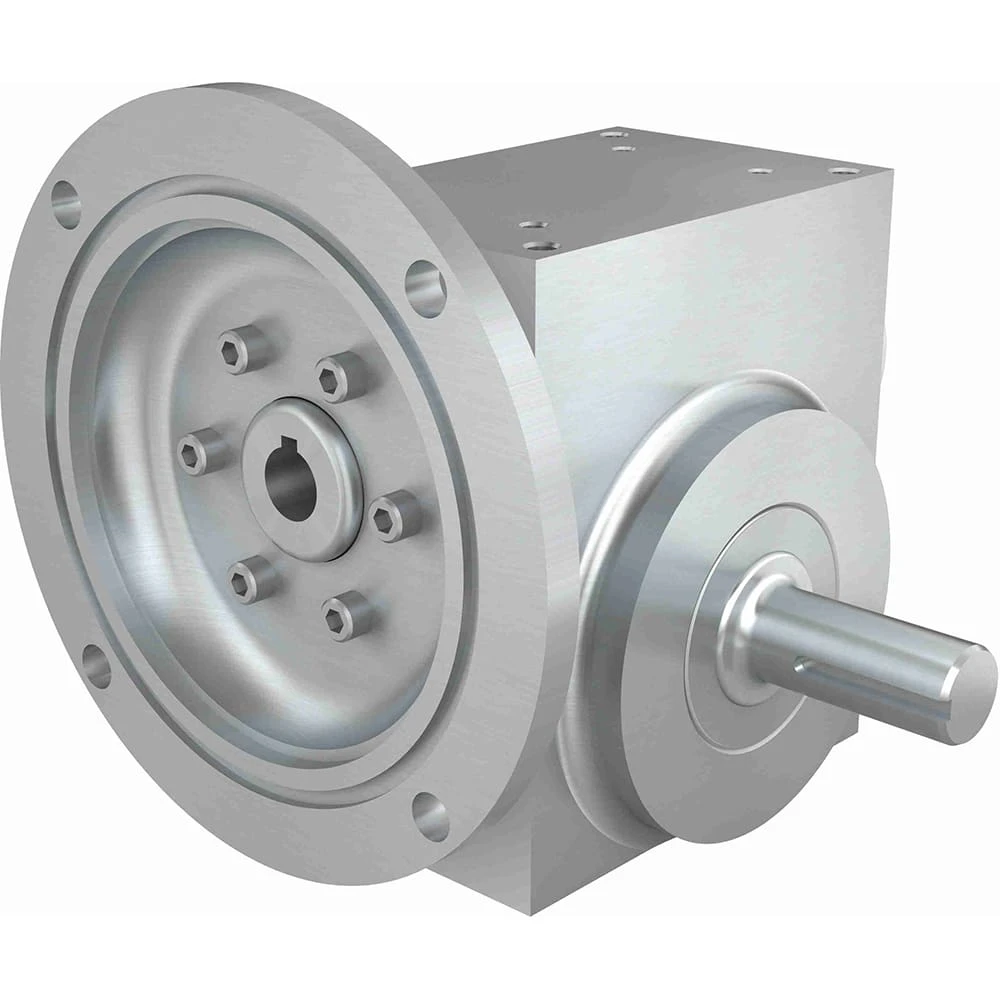

HUB CITY 0270-07619 Worm Reducer, 0.449 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel | AN8APT

HUB CITY 0270-07619 Worm Reducer, 0.449 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel

Item: AN8APT

Model: 0270-07619

In Stock

Get it by Thursday, Apr 16

£1638.83/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	1 3/4"
Center Distance Range	1" to 3 1/4"
Frame Size	56C
Gear Type	Worm Right Angle
Housing Material	Stainless Steel
Hp Range	0 hp to 1/2 hp, 1/3 hp
Input Dia.	5/8"
Input Hp @ 1750 Rpm	0.449 hp
Input Style	C Face Quill
Keyway Size	3/16" x 3/32"
No. Of Gear Reductions	1
Output Dia.	7/8"

Output Rpm	29.2 RPM
Output Shaft	Shaft
Output Shaft Direction	Right
Output Torque Range	500 lbs.-in. to 1000 lbs.-in.
Overhung Load	550
Product Line	Stainless Steel Worm Gear Drive
Product Type	Right Angle
Ratio	60:1
Service Factor	1
Style	C
Torque Rating	623 lbs.-in.

Product Details

Shipping Information

Height	27.94
Length	27.94

Width	22.86
Weight	11.250000

Related Products

A

B

C

D

E

F

G

Style	Model	ratio	motor frame size	output	output rpm	frame size	gear type	mounting type	center distance	Price (ex. VAT)	Cart
A	0270-07610	5:1	-	-	350 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
B	0270-07599	7.5:1	-	-	233.3 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
C	0270-07605	40:1	-	-	43.75 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
D	0270-07590	20:1	-	-	87.5 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
E	0270-07592	30:1	-	-	58.3 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
F	0270-07607	60:1	-	-	29.2 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
G	0270-07609	100:1	-	-	17.5 RPM	56C	Worm Right Angle	-	1 3/4"	1,365.69
