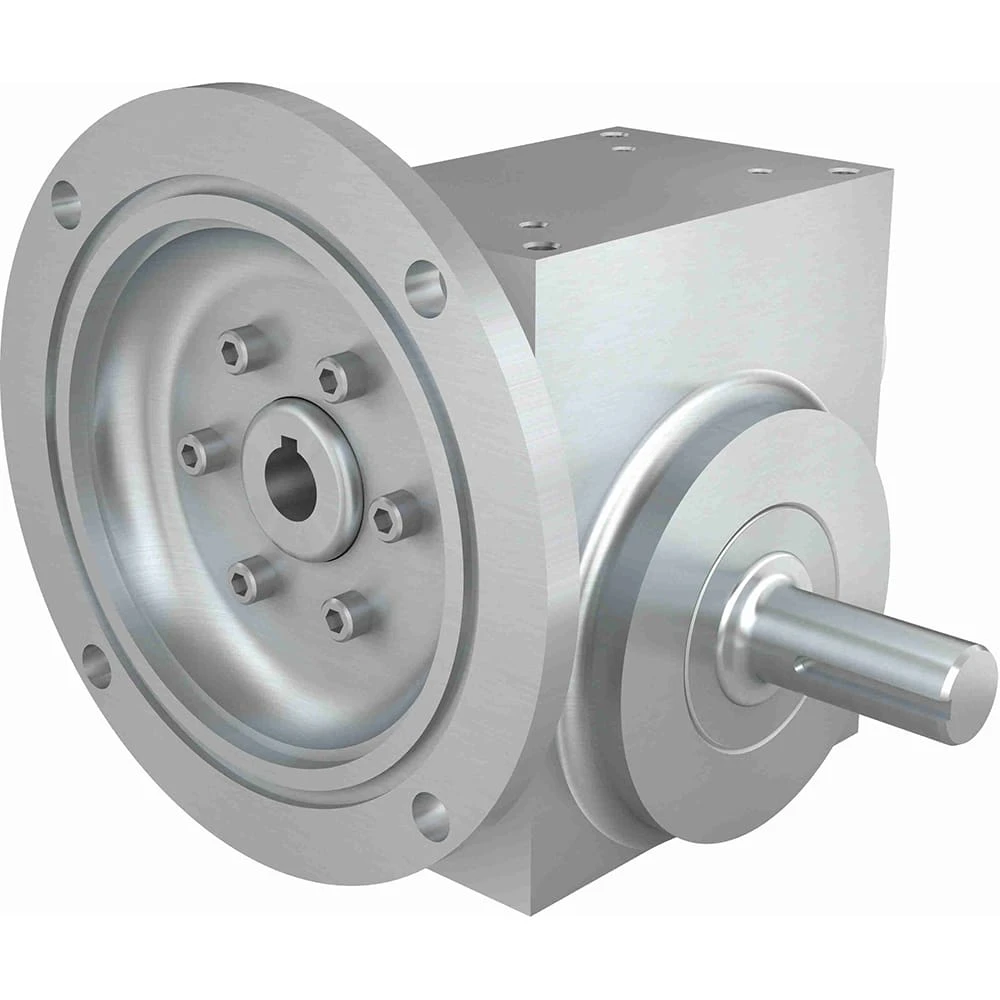

HUB CITY 0270-07610 Worm Reducer, 2.6 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel
Item: AN6PUN
Model: 0270-07610
In Stock
Get it by Thursday, Apr 16
£1638.83/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 1 3/4" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 2 3/5 hp |
| Input Style | C Face Quill |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Rpm | 350 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 5:1 |
| Service Factor | 1 |
| Style | C |
| Torque Rating | 436 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 27.94 |
| width | 22.86 |
|---|---|
| weight | 11.250000 |
Related Products
| Style | Model | ratio | motor frame size | output | output rpm | frame size | gear type | mounting type | center distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-07599 | 7.5:1 | - | - | 233.3 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| B | 0270-07605 | 40:1 | - | - | 43.75 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| C | 0270-07590 | 20:1 | - | - | 87.5 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| D | 0270-07592 | 30:1 | - | - | 58.3 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| E | 0270-07607 | 60:1 | - | - | 29.2 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| F | 0270-07609 | 100:1 | - | - | 17.5 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 | |
| G | 0270-07618 | 50:1 | - | - | 35 RPM | 56C | Worm Right Angle | - | 1 3/4" | 1,365.69 |
