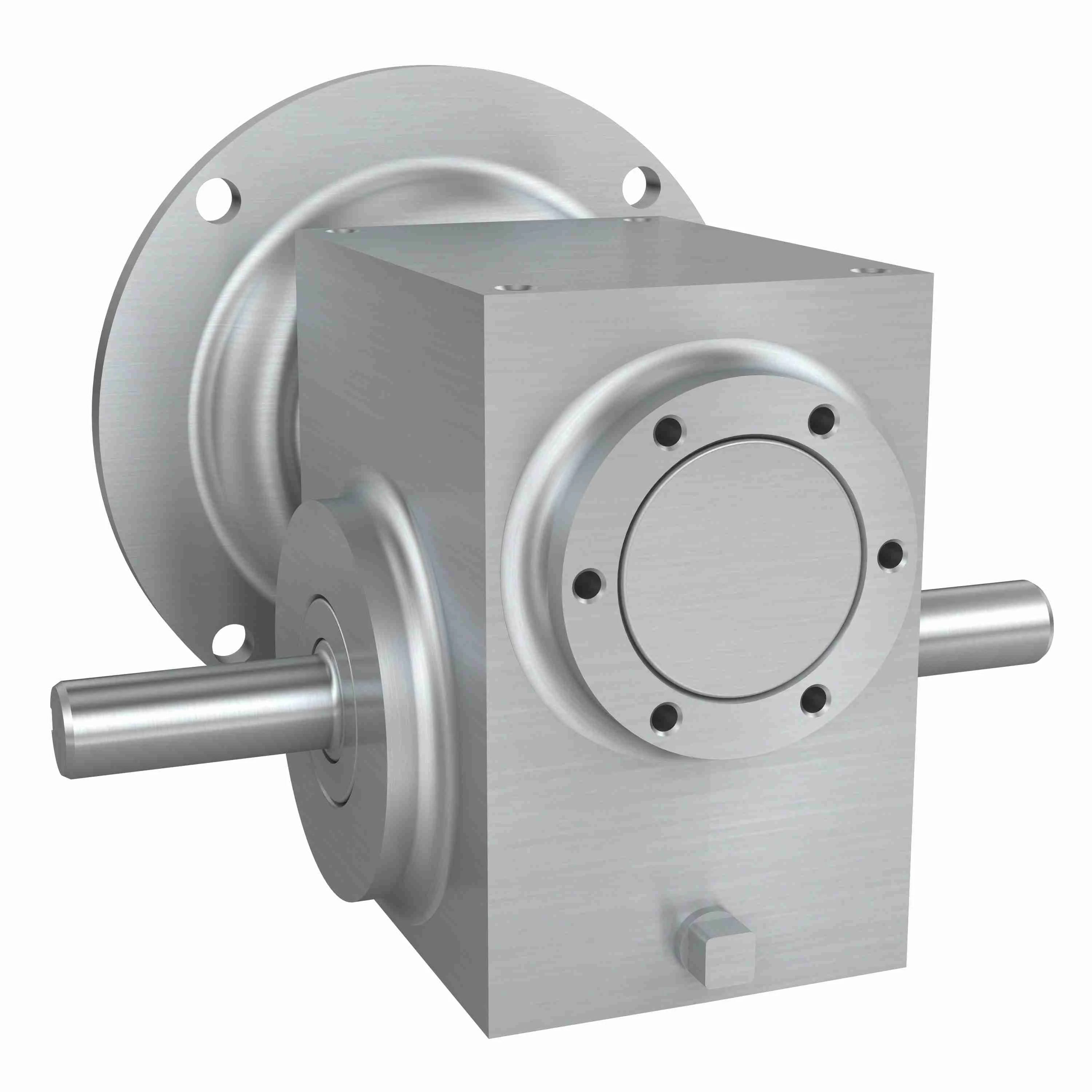

HUB CITY 0270-07426 Worm Reducer, 0.919 Hp, 0.750 Inch I.D, 0.875 Inch O.D, Stainless Steel
Item: AX8UTP
Model: 0270-07426
In Stock
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£0/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 1.54" |
|---|---|
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Diameter | 7/8" |
| Input Hp | 0.919 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 140TC |
| Mounting Style | A |
| Output | 87.5 RPM |
| Output Diameter | 3/4" |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 518 lbs.-in. |
| Overhung Load | 860 lbs.-in. |
| Ratio | 20:1 |
| Reduction | Single |
| Service Factor | 1 |
| Standard_logo | Ip69K.Png, Usda.Png |
| Style | A |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 27.94 |
| width | 22.86 |
|---|---|
| weight | 9.450000 |
Related Products
| Style | Model | motor frame size | output | ratio | gear type | center distance | input style | housing material | service factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-07416 | 56C | 58.3 RPM | 30:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| B | 0270-07401 | 56C | 116.7 RPM | 15:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| C | 0270-07404 | 56C | 58.3 RPM | 30:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| D | 0270-07405 | 56C | 43.75 RPM | 40:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| E | 0270-07407 | 56C | 29.2 RPM | 60:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| F | 0270-07413 | 56C | 116.7 RPM | 15:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 | |
| G | 0270-07419 | 56C | 29.2 RPM | 60:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | 1,695.47 |
