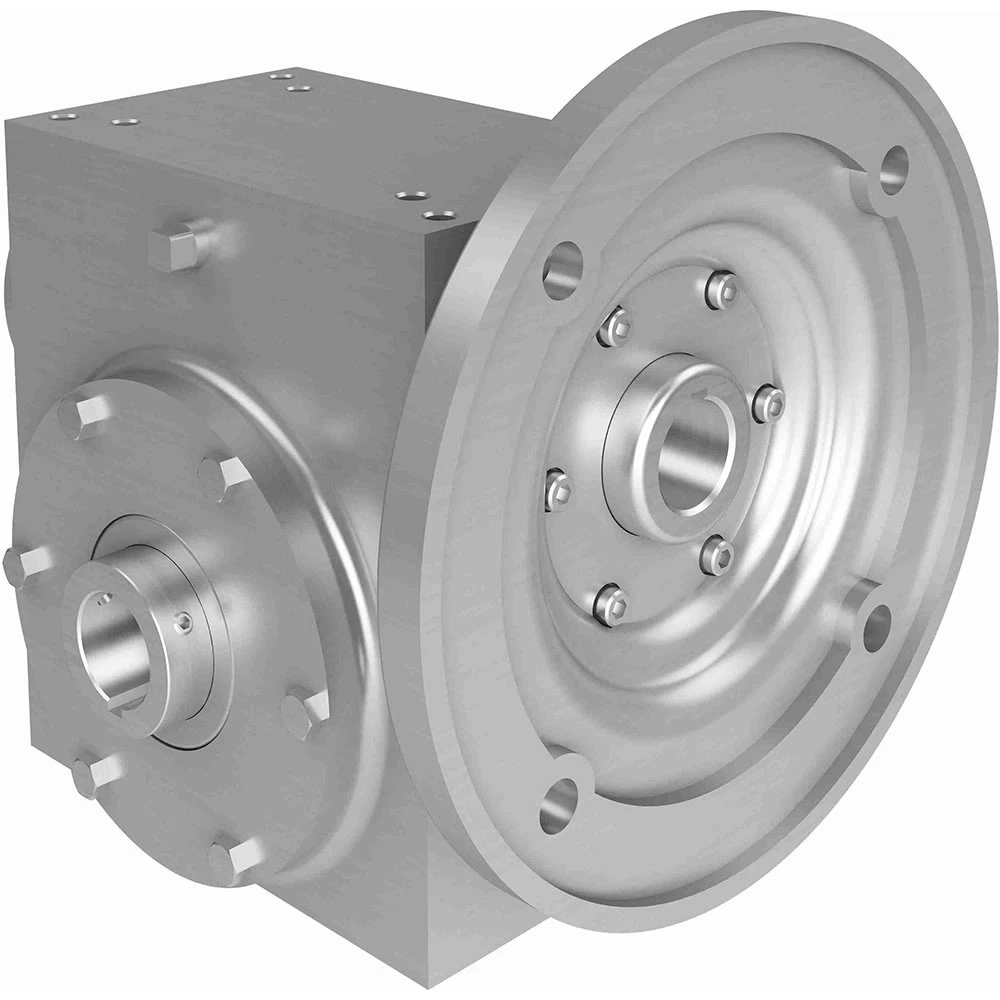

HUB CITY 0270-06895 Worm Reducer, 2.145 Hp, 1.125 Inch I.D, 1.250 Inch O.D, Stainless Steel | AX6JER

HUB CITY 0270-06895 Worm Reducer, 2.145 Hp, 1.125 Inch I.D, 1.250 Inch O.D, Stainless Steel

Item: AX6JER

Model: 0270-06895

In Stock

Get it by Friday, Apr 17

£3705.32/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.63"
Center Distance Range	1" to 3 1/4"
Frame Size	180TC
Gear Type	Worm Right Angle
Housing Material	Stainless Steel
Hp Range	2 hp to 3 hp
Input Dia.	1 1/8"
Input Style	C Face Quill
Keyway Size	1/4" x 1/8"
Max. Input Hp	2.145 hp
No. Of Gear Reductions	1

Output Dia.	1 1/4"
Output Rpm	58.3 RPM
Output Shaft	Hollow Bore
Output Shaft Direction	Left Or Right
Output Torque Range	1000 lbs.-in. to 2500 lbs.-in.
Product Line	Stainless Steel Worm Gear Drive
Product Type	Right Angle
Ratio	30:1
Service Factor	1
Style	A
Torque Rating	1883 lbs.-in.

Product Details

Shipping Information

Height	30.48
Length	40.64

Width	30.48
Weight	24.750000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	ratio	motor frame size	output	output diameter	output rpm	frame size	gear type	Price (ex. VAT)	Cart
A	0270-06763	2.145 hp	30:1	-	-	-	58.3 RPM	56C	Worm Right Angle	2,635.96
B	0270-06752	1.695 hp	40:1	-	-	-	43.75 RPM	56C	Worm Right Angle	3,044.56
C	0270-06760	3.614 hp	15:1	-	-	-	116.7 RPM	56C	Worm Right Angle	3,044.56
D	0270-06761	2.965 hp	20:1	-	-	-	87.5 RPM	56C	Worm Right Angle	3,044.56
E	0270-06753	1 21/50 hp	50:1	-	-	-	35 RPM	56C	Worm Right Angle	2,635.96
F	0270-06751	2.145 hp	30:1	-	-	-	58.3 RPM	56C	Worm Right Angle	2,635.96
G	0270-06714	2.487 hp	25:1	-	-	-	70 RPM	56C	Worm Right Angle	3,044.56
