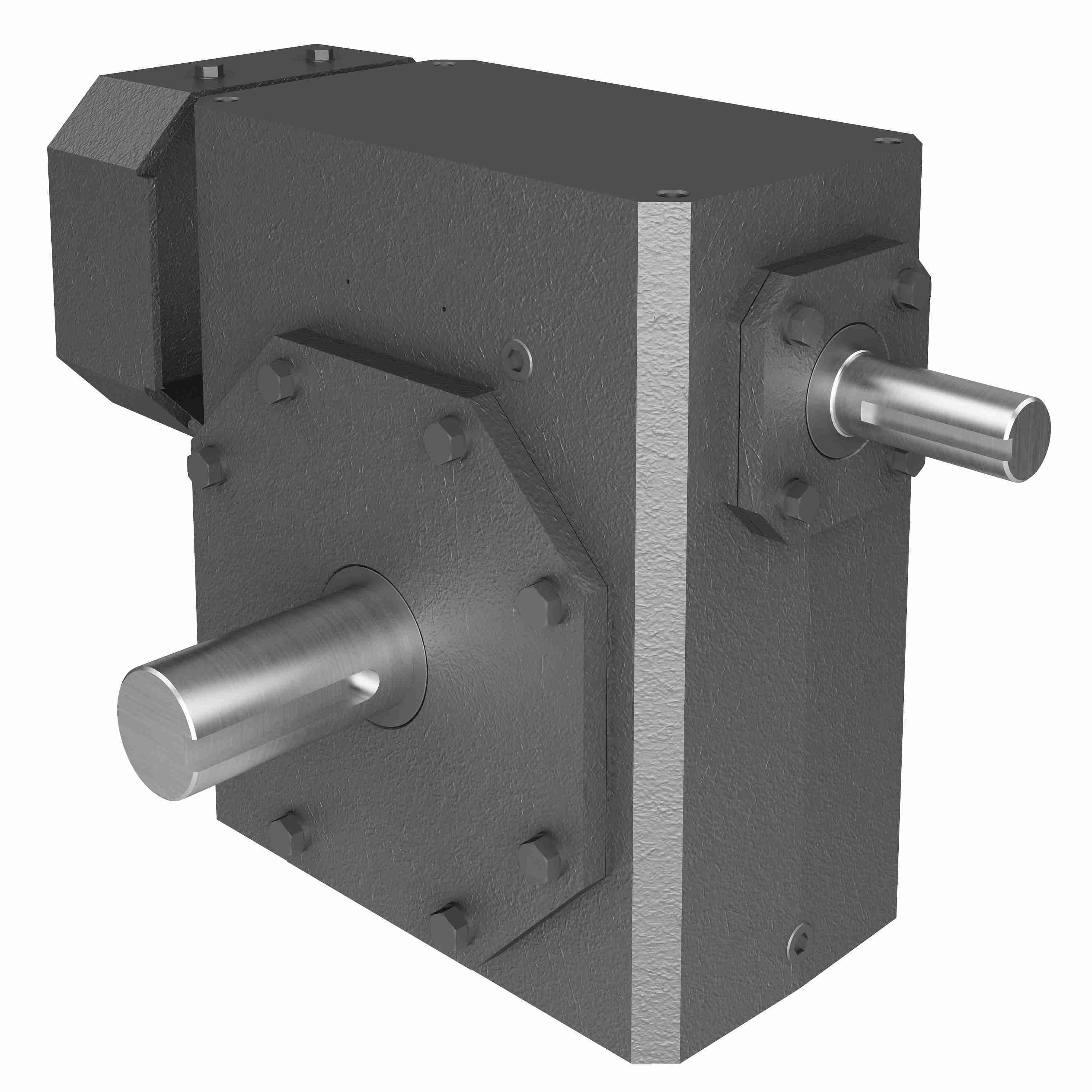

HUB CITY 0270-05021 Worm Reducer, 7.24 Hp, 1.5 Inch I.D, 2.500 Inch O.D, Cast Iron
Item: AY9DQM
Model: 0270-05021
In Stock
Get it by Thursday, Apr 16
£6158.54/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 6" |
|---|---|
| Center Distance Range | Above 3.25" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1 1/2" |
| Input Style | Shaft |
| Max. Input Hp | 7 6/25 hp |
| Output Dia. | 2 1/2" |
| Output Rpm | 35 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Direction | Left |
| Output Torque Range | 10000 lbs.-in. to 20000 lbs.-in. |
| Product Line | Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 10079 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 76.2 |
|---|---|
| length | 121.92 |
| width | 60.96 |
|---|---|
| weight | 129.600000 |
Related Products
| Style | Model | max. input hp | ratio | output rpm | output | gear type | center distance | input style | housing material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-05003 | 24.99 hp | 10:1 | 179.5 RPM | - | Worm | 6" | Shaft | Cast Iron | 5,132.12 | |
| B | 0270-05013 | - | 5:1 | - | 341.5 RPM | Worm | 6" | Shaft | Cast Iron | - |
RFQ
|
| C | 0270-05033 | 7 6/25 hp | 50:1 | 35 RPM | - | Worm | 6" | Shaft | Cast Iron | 5,132.12 | |
| A | 0270-05009 | 7 6/25 hp | 50:1 | 35 RPM | - | Worm | 6" | Shaft | Cast Iron | 5,132.12 | |
| C | 0270-05027 | 24.99 hp | 10:1 | 179.5 RPM | - | Worm | 6" | Shaft | Cast Iron | 5,132.12 | |
| D | 0270-05036 | - | 100:1 | - | 17.5 RPM | Worm | 6" | Shaft | Cast Iron | - |
RFQ
|
| E | 0270-05022 | 6 3/20 hp | 60:1 | 29.2 RPM | - | Worm | 6" | Shaft | Cast Iron | 4,887.73 |
