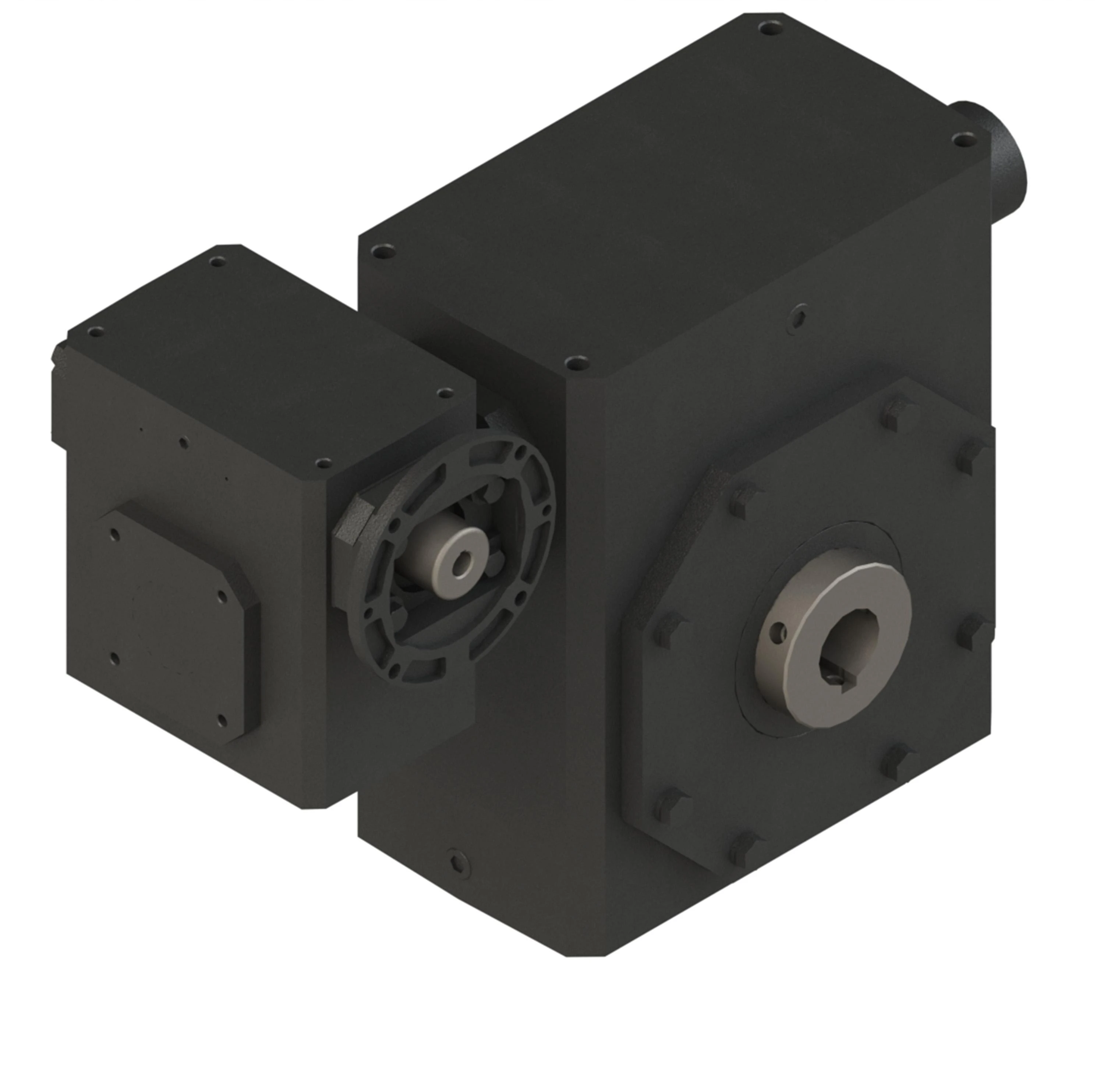

HUB CITY 0270-02539 Worm Reducer, 4.95 Hp at 1750 RPM Hp, 1.125 Inch I.D, 3.438 Inch O.D, Cast Iron
Item: AN7YLX
Model: 0270-02539
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 6" |
|---|---|
| Gear Type | Double Worm |
| Housing Material | Cast Iron |
| Input Diameter | 1 1/8" |
| Input Hp | 4.95 hp @ 1750 RPM |
| Input Style | C Face Quill |
| Keyway | 1/4" x 1/8" |
| Motor Frame Size | 180TC |
| Mounting Style | Select |
| Output | 8.5 RPM |
|---|---|
| Output Diameter | 3.438" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 24607 lbs.-in. |
| Ratio | 200:1 |
| Reduction | Double |
| Service Factor | 1 |
Product Details
Speed Reducer
Related Products
| Style | Model | ratio | motor frame size | output | output diameter | output rpm | gear type | center distance | input style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-02538 | 250:1 | - | - | - | 7.1 RPM | Double Worm | 6" | C Face Quill | 7,423.38 | |
| A | 0270-02608 | 100:1 | 210Tc | 16.5 RPM | 3.438" | - | Double Worm | 6" | C Face Quill | - |
RFQ
|
| A | 0270-02537 | 400:1 | - | - | - | 4.3 RPM | Double Worm | 6" | C Face Quill | 8,574.01 | |
| B | 0270-02599 | 1200:1 | 180TC | 1.4 RPM | 3.438" | - | Double Worm | 6" | C Face Quill | - |
RFQ
|
| A | 0270-02532 | 1000:1 | 180TC | 1.8 RPM | 2.938" | - | Double Worm | 6" | C Face Quill | - |
RFQ
|
| A | 0270-02534 | 600:1 | 180TC | 2.9 RPM | 2.188" | - | Double Worm | 6" | C Face Quill | - |
RFQ
|
| A | 0270-02551 | 150:1 | 180TC | 11.4 RPM | 2.438" | - | Double Worm | 6" | C Face Quill | - |
RFQ
|
