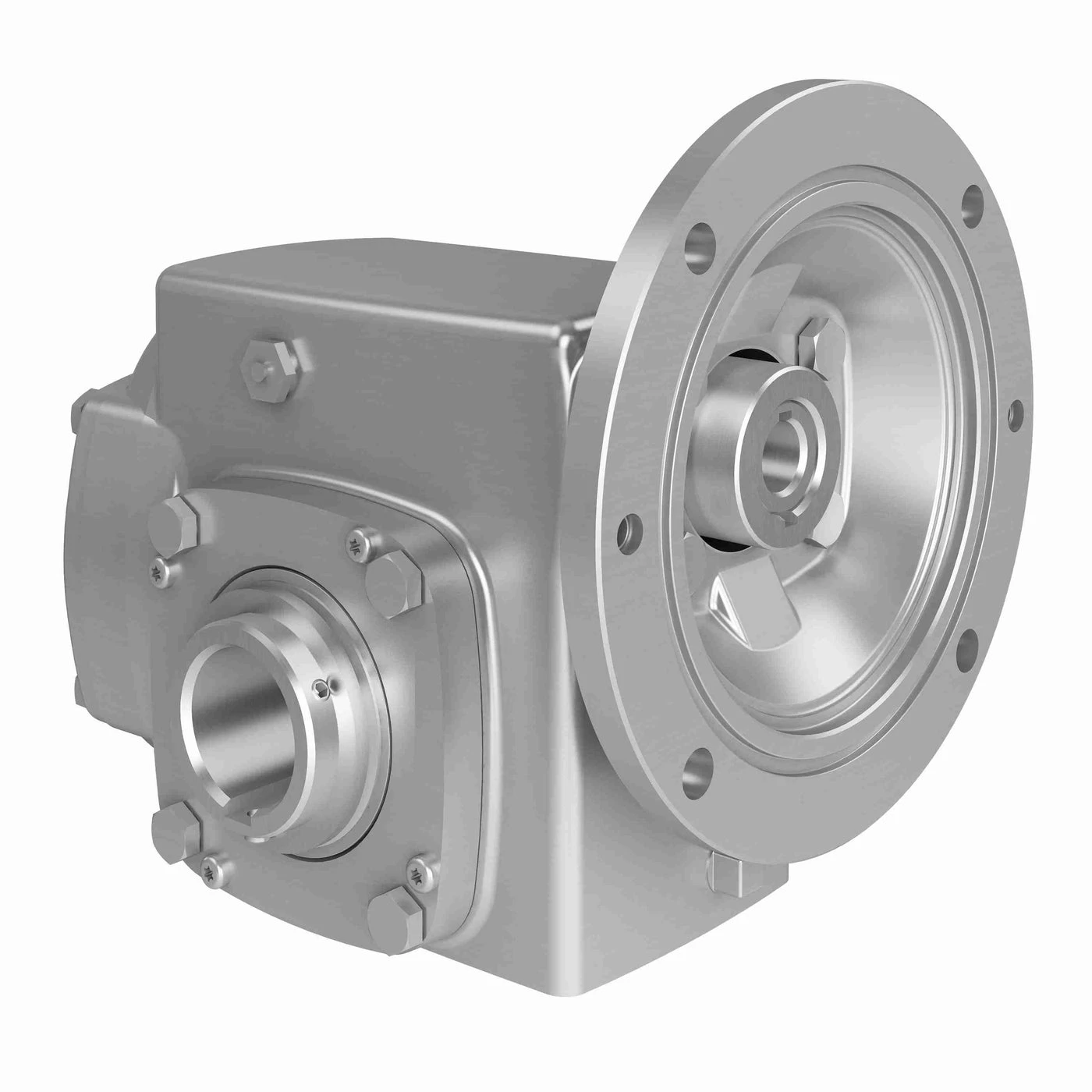

HUB CITY 0250-56851 Helical Hypoid Reducer, 2.18 HP, 0.626 Inch I.D, 1.438 Inch O.D, Stainless Steel
Item: AN8AKU
Model: 0250-56851
In Stock
Get it by Friday, Apr 17
£3,107.83/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.509" |
|---|---|
| Frame Size | 56C |
| Gear Drive Size | SSHERA35 |
| Housing Height | 5.93" |
| Housing Length | 7 1/5" |
| Housing Material | Stainless Steel |
| Housing Width | 6" |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 0.626" |
| Input Hp | 2 9/50 hp |
| Input Hp @ 1750 Rpm | 2 9/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 6" |
| Max. Input Hp | 2 9/50 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 15:1 |
| Output Dia. | 1.438" |
| Output Rpm | 112.2 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 15.6:1 |
| Service Factor | 1 |
| Style | ES |
| Torque Rating | 1100 lbs.-in. |
Shipping Information
| Height | 27.94 |
|---|---|
| Length | 30.48 |
| Width | 25.4 |
|---|---|
| Weight | 15.750000 |
Related Products
| Style | Model | max. input hp | center distance | input style | ratio | output rpm | frame size | motor frame size | output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-56856 | 29/50 hp | 2.509" | C Face Quill | 58.33:1 | 30 RPM | 56C | - | - | 2,352.35 | |
| B | 0250-57240 | - | 3.263" | C Face Quill | 59.79:1 | - | - | 56C | 29.3 RPM | 3,141.50 | |
| C | 0250-56804 | 1 7/10 hp | 2.509" | C Face Quill | 19.93:1 | 87.8 RPM | 56C | - | - | 2,589.86 | |
| D | 0250-56808 | 29/50 hp | 2.509" | C Face Quill | 58.33:1 | 30 RPM | 56C | - | - | 1,741.99 | |
| E | 0250-56817 | 4.23 hp | 2.509" | C Face Quill | 8.02:1 | 218.2 RPM | 56C | - | - | 2,589.86 | |
| F | 0250-56818 | 2.97 hp | 2.509" | C Face Quill | 11.42:1 | 153.2 RPM | 56C | - | - | 2,352.35 | |
| G | 0250-56821 | 1.17 hp | 2.509" | C Face Quill | 29.1:1 | 60.1 RPM | 56C | - | - | 2,352.35 |
