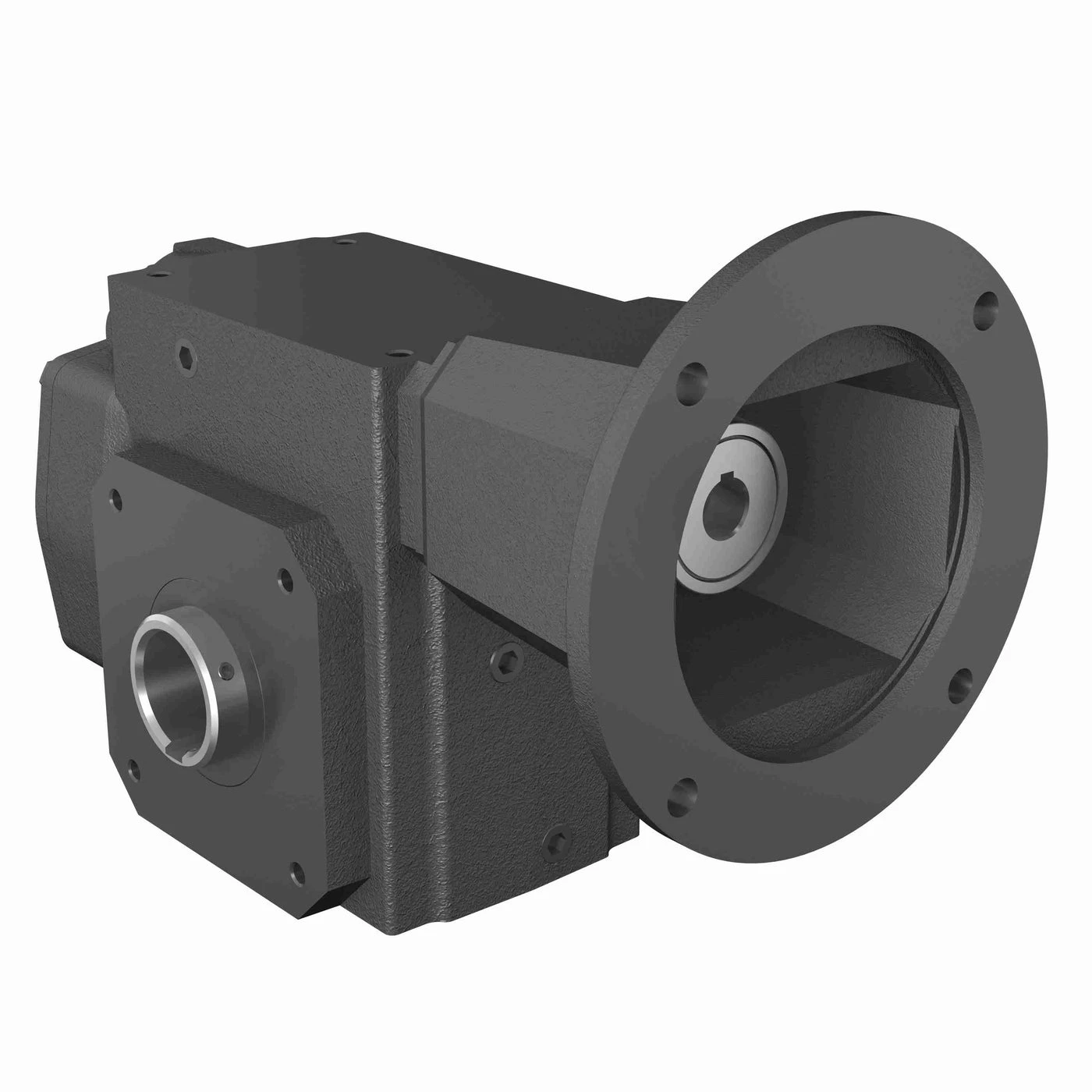

HUB CITY 0250-56566 Helical Hypoid Reducer, 0.78 HP, 0.626 Inch I.D, 1.438 Inch O.D, Cast Iron
Item: AY4EXJ
Model: 0250-56566
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.509" |
|---|---|
| Frame Size | 56C |
| Gear Drive Size | HERA35 |
| Housing Height | 5 3/4" |
| Housing Length | 7.19" |
| Housing Material | Cast Iron |
| Housing Width | 5 1/2" |
| Hp Range | 1/2 hp to 1 hp |
| Input Dia. | 0.626" |
| Input Hp | 39/50 hp |
| Input Hp @ 1750 Rpm | 39/50 hp |
| Input Style | C Face Coupled |
| Length Through Bore | 5 1/2" |
| Max. Input Hp | 39/50 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 40:1 |
| Output Dia. | 1.438" |
| Output Rpm | 40.2 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 43.53:1 |
| Service Factor | 1 |
| Style | PS |
| Torque Rating | 1100 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 30.48 |
| width | 25.4 |
|---|---|
| weight | 13.500000 |
Related Products
| Style | Model | max. input hp | output rpm | frame size | ratio | center distance | input style | housing material | no. of gear reductions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-56617 | 4.23 hp | 218.2 RPM | 140TC | 8.02:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| B | 0250-56535 | 13/20 hp | 33.3 RPM | 56C | 52.5:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| C | 0250-56536 | 29/50 hp | 30 RPM | 56C | 58.33:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| D | 0250-56563 | 2 9/50 hp | 112.2 RPM | 56C | 15.6:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| E | 0250-56564 | 1 7/10 hp | 87.8 RPM | 56C | 19.93:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| F | 0250-56519 | 13/20 hp | 33.3 RPM | 56C | 52.5:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 | |
| G | 0250-56604 | 1 7/10 hp | 87.8 RPM | 140TC | 19.93:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,444.15 |
