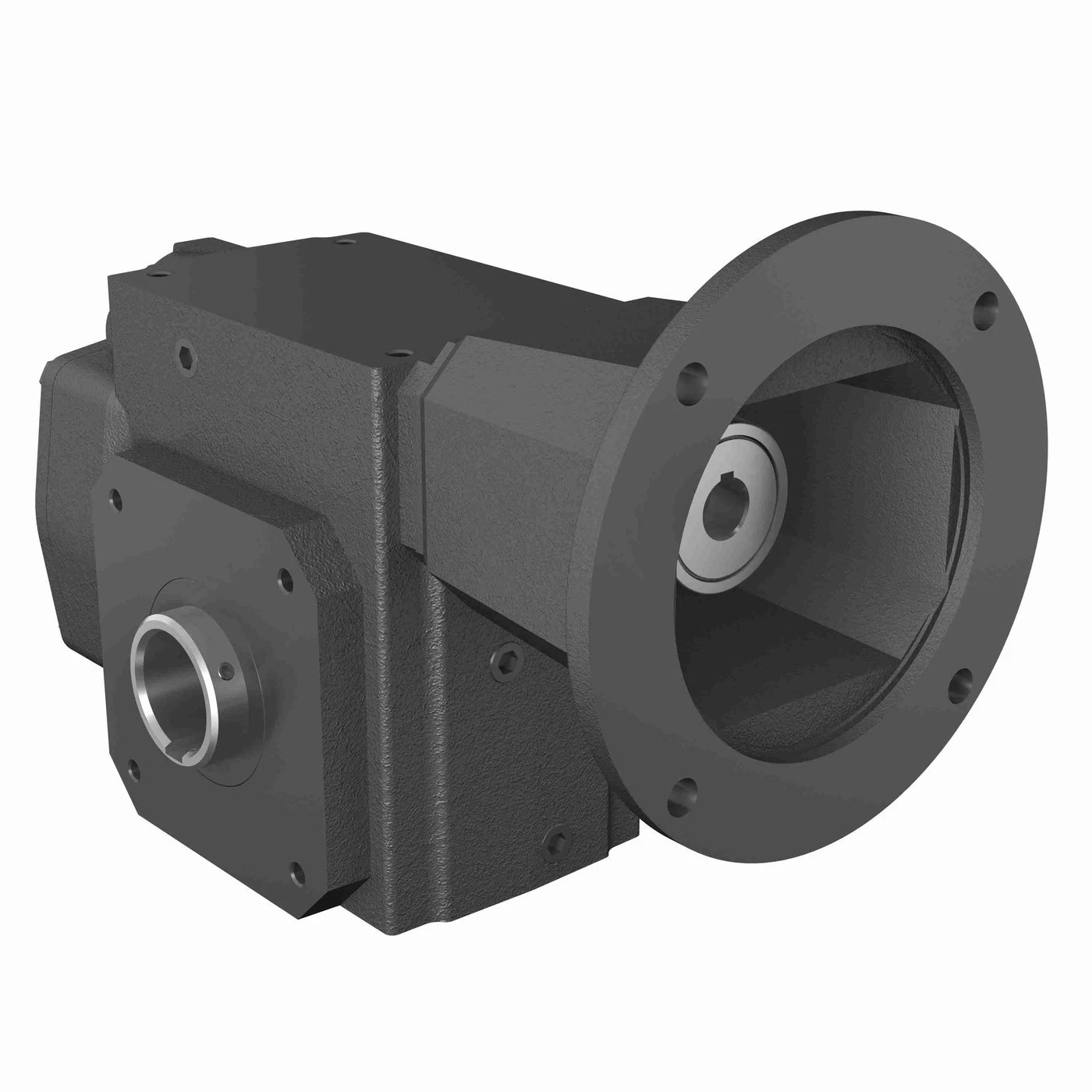

HUB CITY 0250-56538 Helical Hypoid Reducer, 2.97 HP, 0.626 Inch I.D, 1.125 Inch O.D, Cast Iron
Item: AY8UMX
Model: 0250-56538
In Stock
Get it by Thursday, Apr 16
£1473.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.509" |
|---|---|
| Frame Size | 56C |
| Gear Drive Size | HERA35 |
| Housing Height | 5 3/4" |
| Housing Length | 7.19" |
| Housing Material | Cast Iron |
| Housing Width | 5 1/2" |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 0.626" |
| Input Hp | 2 97/100 hp |
| Input Hp @ 1750 Rpm | 2.97 hp |
| Input Style | C Face Coupled |
| Length Through Bore | 5 1/2" |
| Max. Input Hp | 2.97 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 10:1 |
| Output Dia. | 1 1/8" |
| Output Rpm | 153.2 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 11.42:1 |
| Service Factor | 1 |
| Style | PS |
| Torque Rating | 1100 lbs.-in. |
Product Details
Shipping Information
| Height | 27.94 |
|---|---|
| Length | 30.48 |
| Width | 25.4 |
|---|---|
| Weight | 13.500000 |
Related Products
| Style | Model | max. input hp | output rpm | frame size | ratio | center distance | input style | housing material | no. of gear reductions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-56617 | 4.23 hp | 218.2 RPM | 140TC | 8.02:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| B | 0250-56535 | 13/20 hp | 33.3 RPM | 56C | 52.5:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| C | 0250-56536 | 29/50 hp | 30 RPM | 56C | 58.33:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| D | 0250-56563 | 2 9/50 hp | 112.2 RPM | 56C | 15.6:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| E | 0250-56564 | 1 7/10 hp | 87.8 RPM | 56C | 19.93:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| F | 0250-56519 | 13/20 hp | 33.3 RPM | 56C | 52.5:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 | |
| G | 0250-56604 | 1 7/10 hp | 87.8 RPM | 140TC | 19.93:1 | 2.509" | C Face Coupled | Cast Iron | 2 | 1,227.53 |
