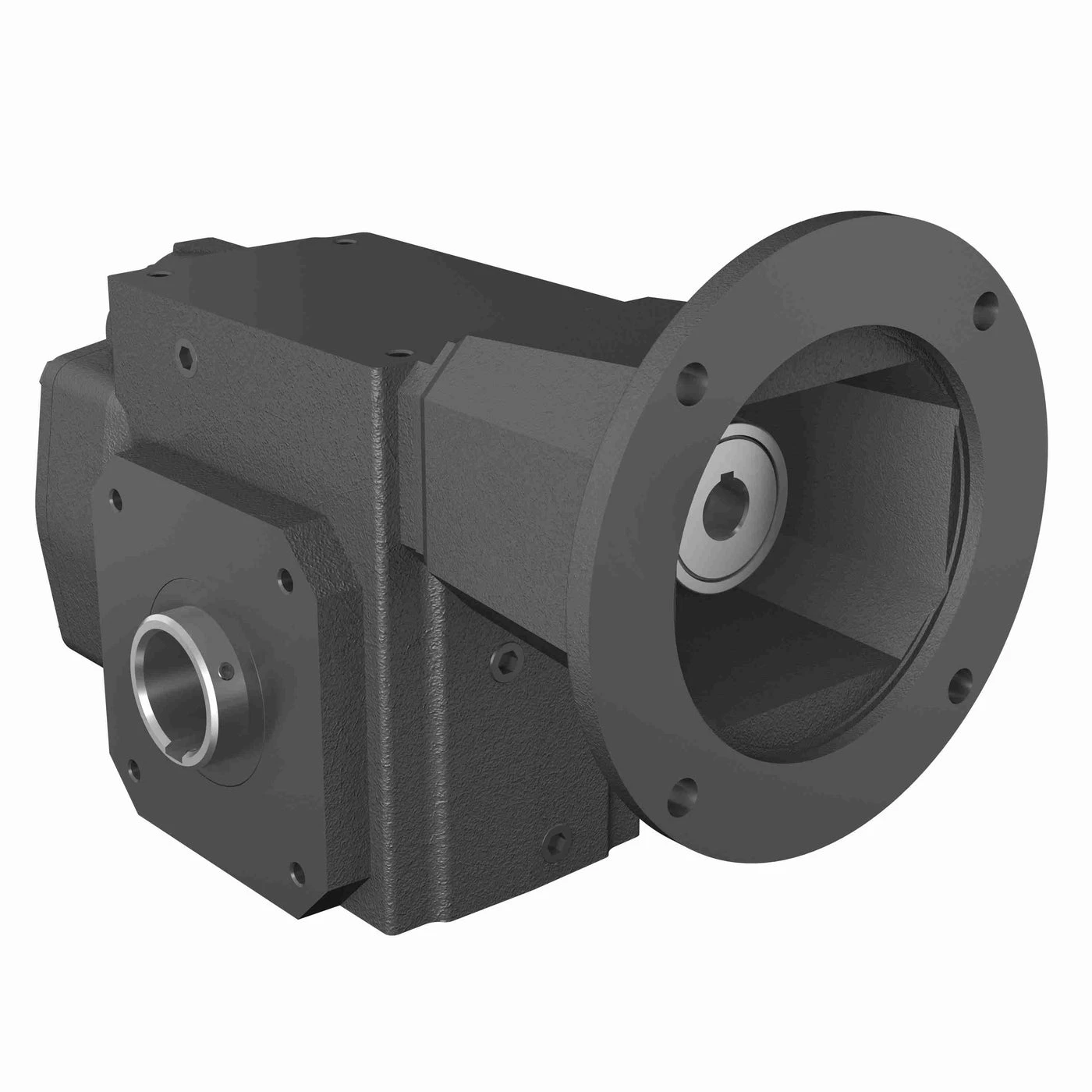

HUB CITY 0250-56021 Helical Hypoid Reducer, 4.95 HP, 0.626 Inch I.D, 2.438 Inch O.D, Cast Iron | AY8QZQ

HUB CITY 0250-56021 Helical Hypoid Reducer, 4.95 HP, 0.626 Inch I.D, 2.438 Inch O.D, Cast Iron

Item: AY8QZQ

Model: 0250-56021

In Stock

Get it by Thursday, Apr 16

Ratio

£5575.54/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	4.287"
Frame Size	56C
Gear Drive Size	HERA75
Housing Height	11 3/8"
Housing Length	13.61"
Housing Material	Cast Iron
Housing Width	9 1/2"
Hp Range	3 hp to 5 hp
Input Dia.	0.626"
Input Hp	4 19/20 hp
Input Hp @ 1750 Rpm	4 19/20 hp
Input Style	C Face Coupled
Length Through Bore	9 1/2"

Max. Input Hp	4 19/20 hp
No. Of Gear Reductions	2
Nominal Ratio	50:1
Output Dia.	2.438"
Output Rpm	33 RPM
Output Shaft	Hollow Bore
Output Torque Range	5000 lbs.-in. to 10000 lbs.-in.
Product Line	HERA
Product Type	Right Angle
Ratio	53.03:1
Service Factor	1
Style	PS
Torque Rating	8500 lbs.-in.

Product Details

Shipping Information

Height	46.36
Length	50.8

Width	42.16
Weight	76.500000

Related Products

A

B

C

D

E

Style	Model	max. input hp	output rpm	frame size	ratio	center distance	input style	housing material	no. of gear reductions	Price (ex. VAT)	Cart
A	0250-56012	8 7/10 hp	58.1 RPM	56C	30.14:1	4.287"	C Face Coupled	Cast Iron	2	4,646.28
B	0250-56166	8 7/10 hp	58.1 RPM	210TC	30.14:1	4.287"	C Face Coupled	Cast Iron	2	4,646.28
C	0250-56186	12 2/5 hp	82.7 RPM	210TC	21.15:1	4.287"	C Face Coupled	Cast Iron	2	4,220.17
D	0250-56118	7 1/50 hp	46.9 RPM	180TC	37.33:1	4.287"	C Face Coupled	Cast Iron	2	4,646.28
E	0250-56187	8 7/10 hp	58.1 RPM	210TC	30.14:1	4.287"	C Face Coupled	Cast Iron	2	4,646.28
