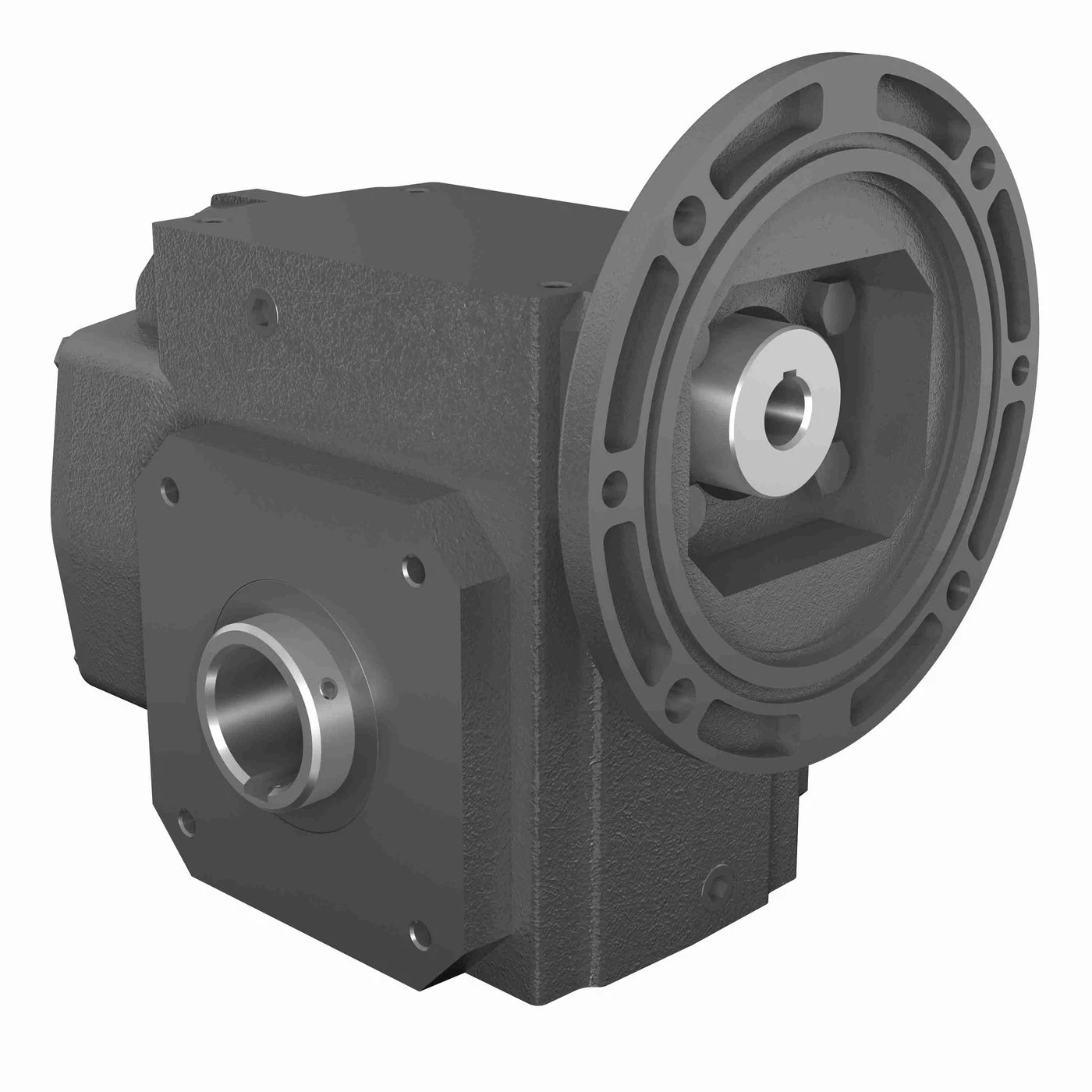

HUB CITY 0250-55901 Helical Hypoid Reducer, 7.02 HP, 1.376 Inch I.D, 2.188 Inch O.D, Cast Iron
Item: AX9YAZ
Model: 0250-55901
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 4.287" |
|---|---|
| Frame Size | 210TC |
| Gear Drive Size | HERA75 |
| Housing Height | 11 3/8" |
| Housing Length | 13.61" |
| Housing Material | Cast Iron |
| Housing Width | 9 1/2" |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1.376" |
| Input Hp | 7 1/50 hp |
| Input Hp @ 1750 Rpm | 7 1/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 9 1/2" |
| Max. Input Hp | 7 1/50 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 40:1 |
| Output Dia. | 2.188" |
| Output Rpm | 46.9 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 5000 lbs.-in. to 10000 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 37.33:1 |
| Service Factor | 1 |
| Style | ES |
| Torque Rating | 8500 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 46.36 |
|---|---|
| length | 50.8 |
| width | 42.16 |
|---|---|
| weight | 76.950000 |
