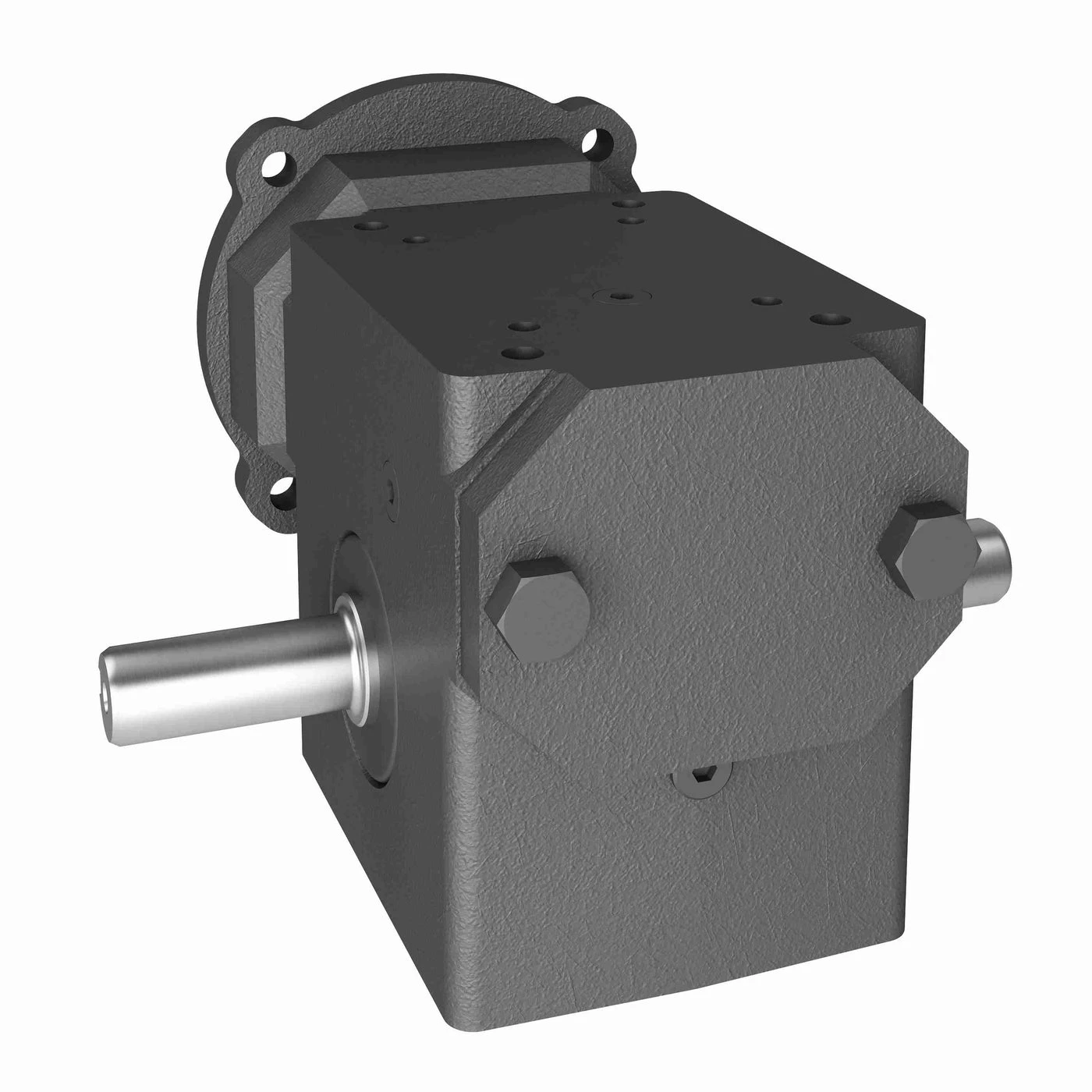

HUB CITY 0230-00088 Worm Reducer, 0.65 Hp, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AN8JBC
Model: 0230-00088
In Stock
Get it by Friday, Apr 17
£844.14/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 1.33" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 13/20 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Rpm | 117 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Overhung Load | 225 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 271 lbs.-in. |
Product Details
Shipping Information
| Height | 22.86 |
|---|---|
| Length | 26.67 |
| Width | 24.13 |
|---|---|
| Weight | 5.400000 |
Related Products
| Style | Model | max. input hp | gear ratio | output rpm | ratio | gear type | series | center distance | input style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-00089 | 0.51 hp | - | 87.5 RPM | 20:1 | Worm | - | 1.33" | C Face Quill | 703.45 | |
| B | 0230-00161 | 0.51 hp | - | 87.5 RPM | 20:1 | Worm | - | 1.33" | C Face Quill | 703.45 | |
| C | 0230-00159 | 43/50 hp | - | 175 RPM | 10:1 | Worm | - | 1.33" | C Face Quill | 609.05 | |
| D | 0230-00085 | 1 19/50 hp | - | 350 RPM | 5:1 | Worm | - | 1.33" | C Face Quill | 703.45 | |
| E | 0230-00130 | 0.207 hp | - | 29.2 RPM | 60:1 | Worm | - | 1.33" | C Face Quill | 703.45 | |
| F | 0230-00087 | 43/50 hp | 10:1 | 175 RPM | 10:1 | Worm | 130PCX Series | 1.33" | C Face Quill | 609.05 | |
| G | 0230-00157 | 1 19/50 hp | 5:1 | 350 RPM | 5:1 | Worm | 130PCX Series | 1.33" | C Face Quill | 609.05 |
