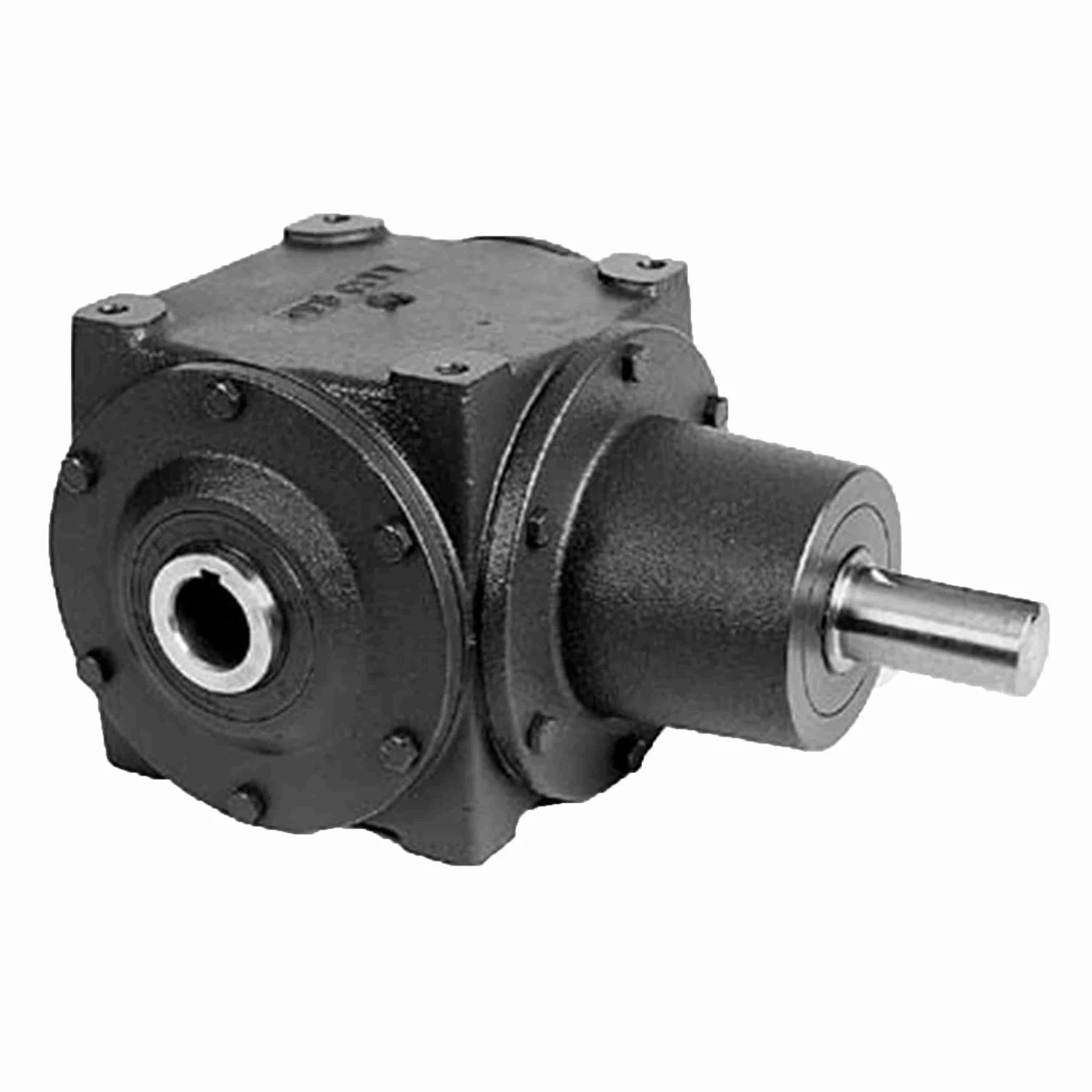

HUB CITY 0220-74776 Bevel Gear Drive, 69 HP, 1.500 Inch I.D, 1.500 Inch O.D, Cast Iron
Item: AN8CJT
Model: 0220-74776
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£5395.57/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Gear Drive Size | 850 |
|---|---|
| Gear Type | Spiral Bevel |
| Housing Height | 8 3/16" |
| Housing Length | 12 9/32" |
| Housing Material | Cast Iron |
| Housing Width | 10" |
| Input Dia. | 1 1/2" |
| Input Hp @ 1750 Rpm | 69 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Rpm | 1166.7 RPM |
|---|---|
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Double |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1.5:1 |
| Service Factor | 1 |
| Style | A, B |
| Torque Rating | 3720 lbs.-in. |
Product Details
Bevel Gear Drive
Shipping Information
| height | 27.94 |
|---|---|
| length | 41.28 |
| width | 39.37 |
|---|---|
| weight | 40.500000 |
Related Products
| Style | Model | output rpm | ratio | gear type | max. input hp | input style | housing material | no. of gear reductions | service factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-74777 | 875 RPM | 2:1 | Spiral Bevel | - | Shaft | Cast Iron | 1 | 1 | 5,138.64 | |
| B | 0220-74775 | 1750 RPM | 1:1 | Spiral Bevel | - | Shaft | Cast Iron | 1 | 1 | 4,186.47 | |

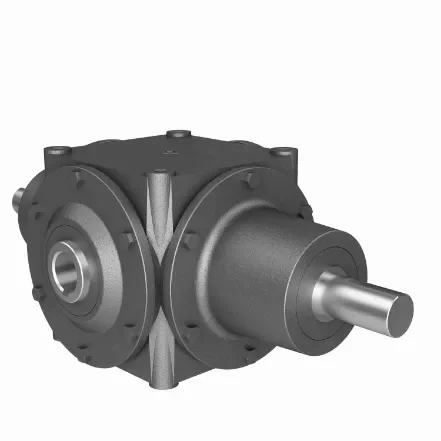

| C | 0220-74779 | 1750 RPM | 1:1 | Spiral Bevel | 132 hp | Shaft | Cast Iron | 1 | 1 | 7,678.65 | |
| D | 0220-74778 | 583.3 RPM | 3:1 | Spiral Bevel | - | Shaft | Cast Iron | 1 | 1 | 5,395.57 |
