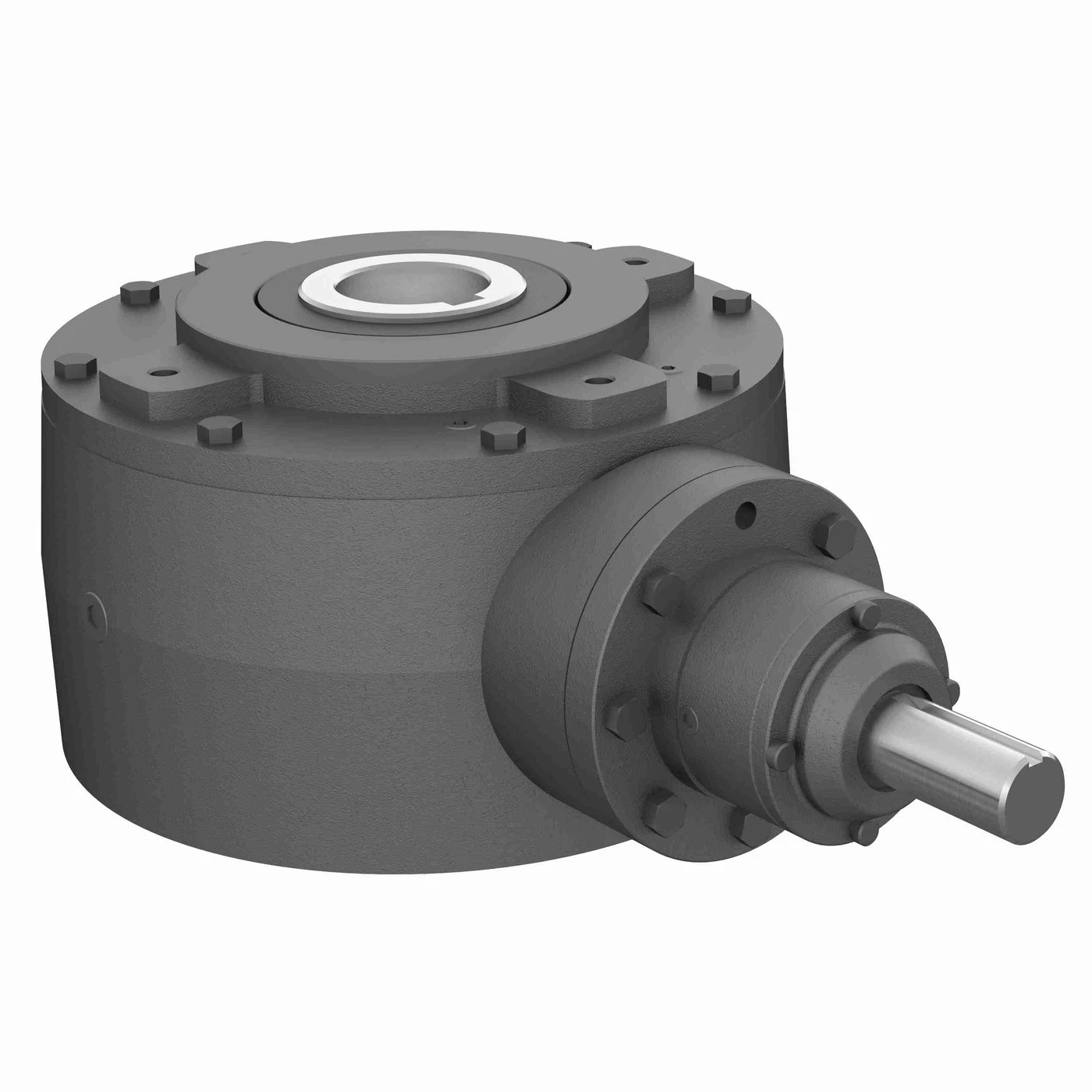

HUB CITY 0220-54001 Bevel Gear Drive, 24.6 HP, 1.375 Inch I.D, 1.500 Inch O.D, Cast Iron
Item: AM9LUV
Model: 0220-54001
In Stock
£6395.77/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Gear Drive Size | 790 |
|---|---|
| Gear Type | Straight Bevel |
| Housing Height | 10 13/16" |
| Housing Length | 14 17/32" |
| Housing Material | Cast Iron |
| Housing Width | 6 19/32" |
| Input Diameter | 1 3/8" |
| Input Hp | 24 3/5 hp |
| Input Style | Shaft |
| Output | 575 RPM |
| Output Diameter | 1 1/2" |
|---|---|
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 2696 lbs.-in. |
| Ratio | 2:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | STD |
Product Details
Bevel Gear Drive
Related Products
| Style | Model | gear type | output | output diameter | ratio | input style | housing material | service factor | output shaft | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-54004 | Spiral Bevel | 463 RPM | 1 1/2" | 3.781 | Shaft | Cast Iron | 1 | Hollow Bore | 3,934.37 | |
| B | 0220-54006 | Spiral Bevel | 463 RPM | 1 3/4" | 3.781 | Shaft | Cast Iron | 1 | Hollow Bore | 3,934.37 | |
| C | 0220-54005 | Spiral Bevel | 463 RPM | 1.688" | 3.781 | Shaft | Cast Iron | 1 | Hollow Bore | 4,957.32 | |
| D | 0220-54003 | Straight Bevel | 575 RPM | 1 3/4" | 2:1 | Shaft | Cast Iron | 1 | Hollow Bore | 5,596.31 |
