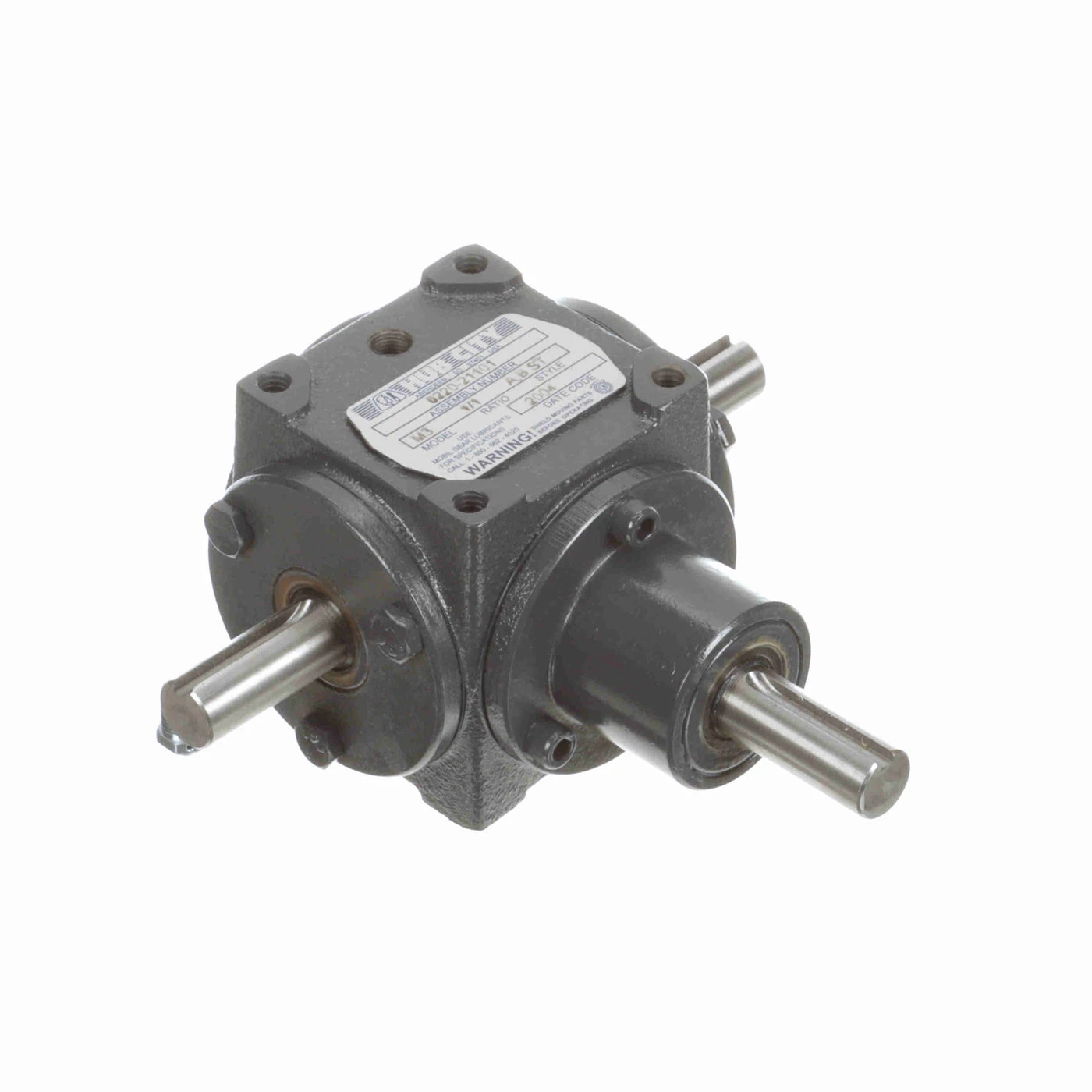

HUB CITY 0220-21106 Bevel Gear Drive, 1.57 HP, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron

Item: AX4NYP
Model: 0220-21106
20 In Stock

Ships within 2 days via

1.50:1
250 lbs.-in.
Double
£1548.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Gear Drive Size M3
Gear Type Straight Bevel
Housing Height 3 3/16"
Housing Length 4 21/32"
Housing Material Cast Iron
Housing Width 3 15/32"
Input Diameter 5/8"
Input Hp 1 57/100 hp
Input Style Shaft
Output 1166.7 RPM
Output Diameter 5/8"
Output Shaft Shaft
Output Shaft Direction Left, Right
Output Torque Range Less than 250 Lbs.-In.
Output Torque Rating 84 lbs.-in.
Ratio 1.51
Reduction Single
Service Factor 1
Style A, B

Product Details

Bevel Gear Drive

Shipping Information

height 2.54
length 2.54
width 2.54
weight 4.500000
