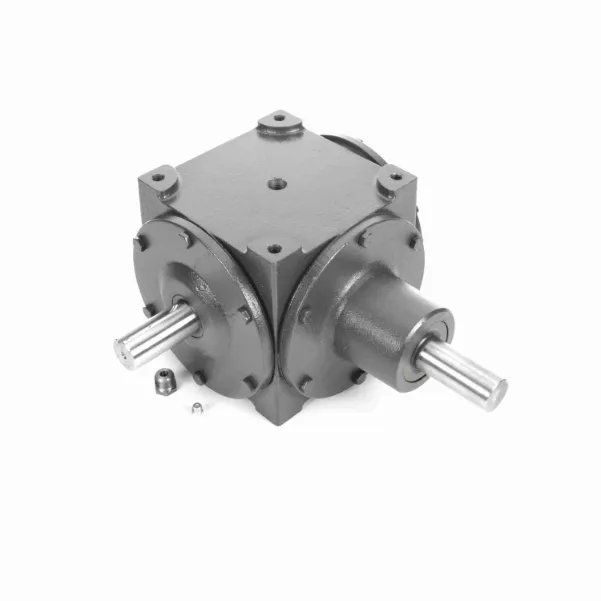

HUB CITY 0220-04004 Bevel Gear Drive, 44 HP, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron

Item: AK7LHL
Model: 0220-04004
In Stock

Get it by Thursday, Apr 16

£2117.16/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Dimensions 15 13/16" x 14 23/32" x 8 3/16"
Efficiency 97.5%
Gear Drive Size 88
Gear Ratio 1:1
Gear Type Straight Bevel
Housing Height 8 3/16"
Housing Length 11 21/32"
Housing Material Cast Iron
Housing Width 9 13/16"
Hp 44 hp
Hp Range 30 hp to 50 hp
Input Dia. 1 3/8"
Input Keyway Size 5/16" x 5/32"
Input Length 3 1/16"
Input Max. Speed 850 RPM
Input Style Shaft
Input Type Shaft
Lubrication Type Conventional Oil
Material Cast Iron
Max. Input Hp 44 hp
Mounting Type Four Bolt Surface
No. Of Gear Reductions 1
Output Dia. 1 3/8"
Output Length 3"
Output Max. Speed 850 RPM
Output Rpm 850 RPM
Output Shaft Shaft
Output Shaft Direction Double
Output Torque Range 2500 lbs.-in. to 5000 lbs.-in.
Output Type Shaft
Product Line Bevel Gear Drives
Product Type Right Angle
Ratio 1:1
Series 88 Series
Service Factor 1
Style A, B
Torque Rating 3260 lbs.-in.
Type Right Angle Straight Single Reduction Style A B

Product Details

Bevel Gear Drive

Shipping Information

height 27.94
length 41.28
width 39.37
weight 38.700000
