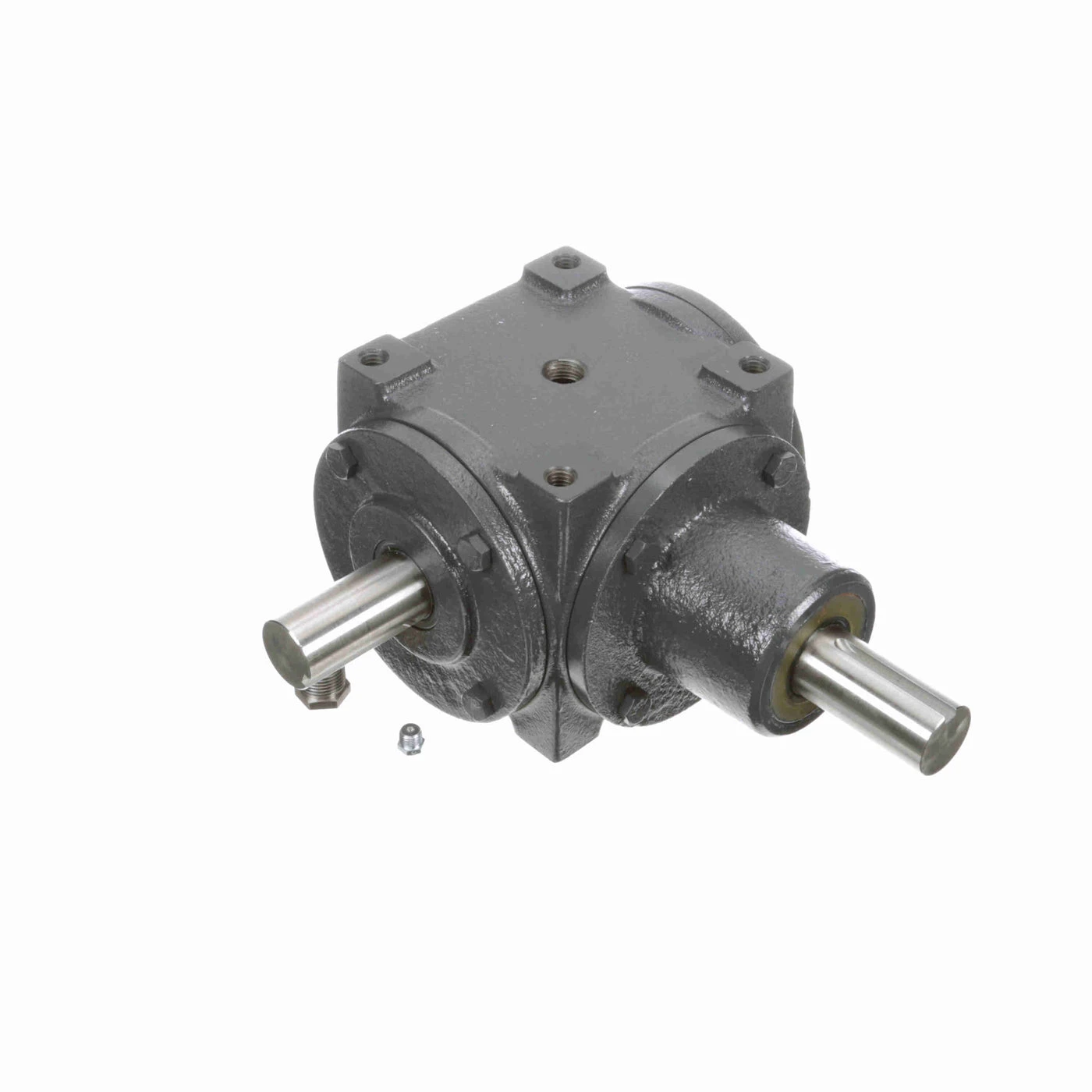

| Item | Bevel Gear Drive |
| Gear Drive Size | 66 |
| Gear Type | Straight Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/4" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 7 hp |
| Input Style | Shaft |
| Max. Input Hp | 7 hp |
| Mounting Type | C, F |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Rpm | 1700 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 250 lbs.-in. to 500 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Ratio | 12:1 |
| Series Code | 66 |
| Service Factor | 1 |
| Torque Rating | 260 lbs.-in. |
| Weight | 43 lbs. |
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
| Product | Model | Price | |
|---|---|---|---|
 |
0220-03535 | £2,264.83 | |
 |
0220-03546 | £1,669.80 | |
 |
0220-03602 | £2,434.03 | |
 |
0220-03516 | £1,272.84 | |
|
0220-03536 | £2,043.94 | |
 |
0220-03549 | £1,669.80 | |
|
0220-03547 | £1,669.80 |
