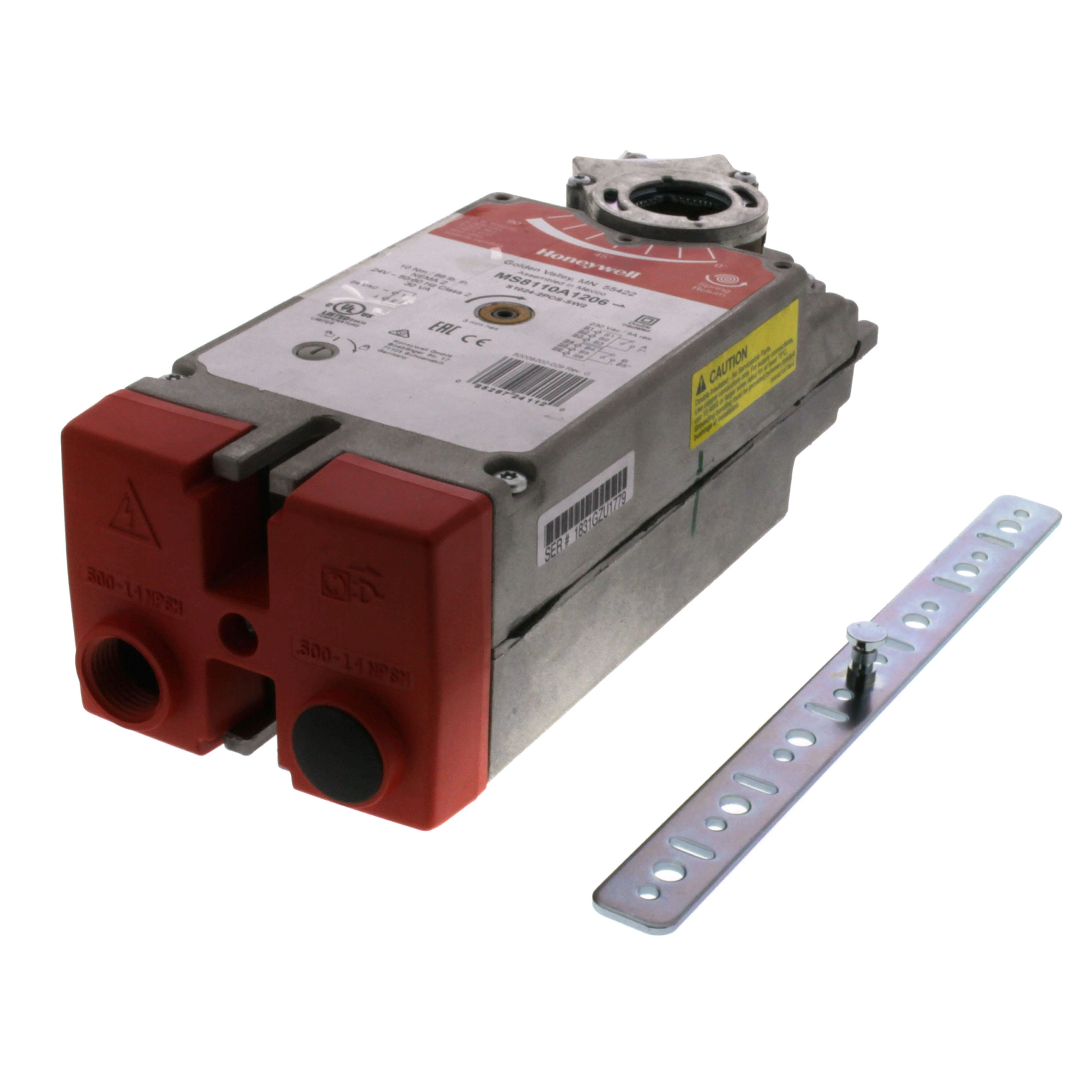

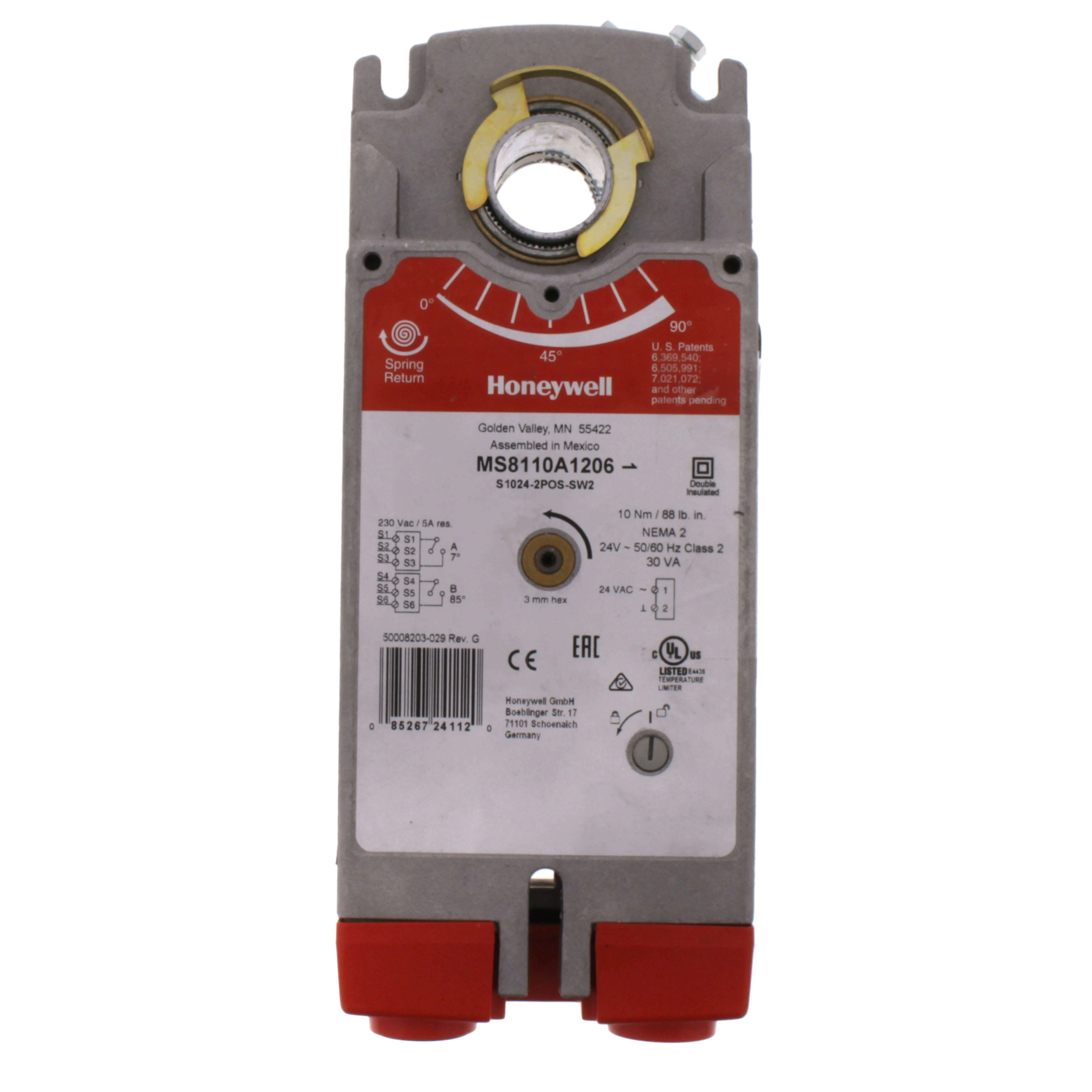

HONEYWELL MS8110A1206 Electric Actuator, Direct Mount, Spring Return, 88 Inch lbs. Torque, 24V AC/DC
Item: CJ2BLR
Model: MS8110A1206
20 In Stock
Ships within 2 days via
5.00% off
£867.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Damper and Valve |
|---|---|
| Contact Form | SPDT |
| Control Signal | On/Off |
| Depth | 2 15/16" |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 9 3/4" |
| Includes | Mounting Bracket |
| Input Voltage | 24V AC/DC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Direct Mount |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 2 |
| Output Signal | Not Applicable |
|---|---|
| Overall Depth | 3" |
| Overall Height | 9 3/4" |
| Overall Width | 4" |
| Power Consumption | 8 VA |
| Product Type | Actuator |
| Rated Torque | 88 lbs.-in. |
| Return Action | Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering Clamping |
| Spring Return | Spring Return |
| Stroke Degree | 95° |
| Time To Close | 45 sec. |
| Width | 3 15/16" |
Product Details
Electric Actuator
Shipping Information
| height | 24.76 |
|---|---|
| length | 7.62 |
| width | 10.16 |
| country of origin | MX |
|---|---|
| weight | 3.285000 |
