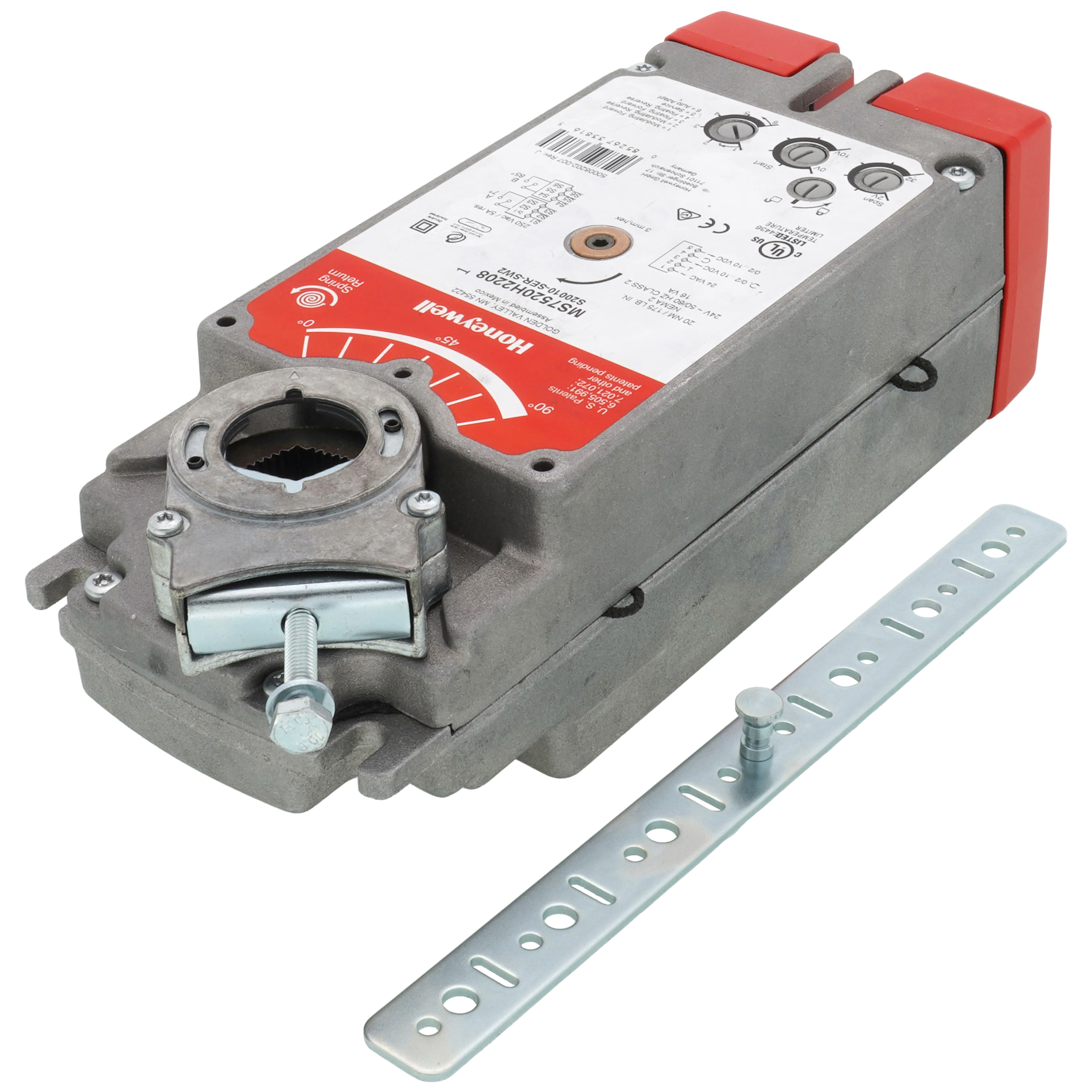

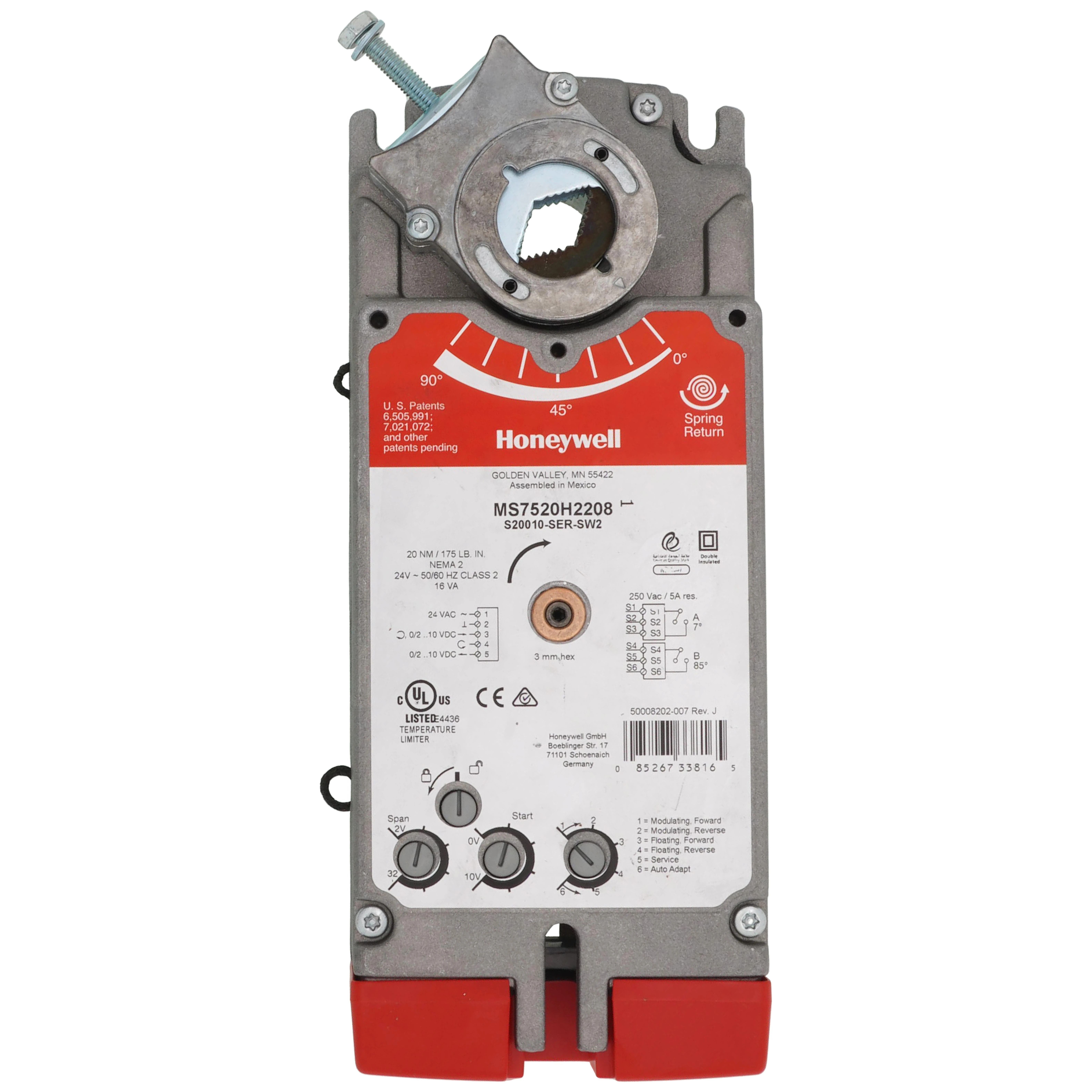

HONEYWELL MS7520H2208 Electric Actuator, Direct Mount, Spring Return, 175 Inch lbs. Torque, 24V AC

Item: CJ2BLF
Model: MS7520H2208
23 In Stock

Ships within 2 days via

£1516.24
5.00% off
£1440.42/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Application Damper and Valve
Contact Form SPDT
Control Signal Floating Point, Proportional
Depth 2 15/16"
Electrical Connection Type Screw Terminals
For Use With Building Automation Systems Building Automation System Compatible
Height 9 3/4"
Includes 3 mm Crank, Mounting Bracket, Self-Centering Shaft Adapter, Span Voltage Input
Input Voltage 24V AC
Ip Rating IP54
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Mounting Type Direct Mount
Nema Rating 2
Number Of Auxiliary Switches 2
Output Signal Not Applicable
Overall Depth 3"
Overall Height 9 3/4"
Overall Width 4"
Power Consumption 16 VA
Product Type Actuator
Rated Torque 175 lbs.-in.
Return Action Spring Return
Shaft Rotation CW/CCW
Shaft Type Self Centering Clamping
Signal Type Floating Point, Proportional
Spring Return Spring Return
Stroke Degree 95°
System Application Ball Valves, Butterfly Valves, Cage Valves, Dampers, Globe Valves
Time To Close 90 sec.
Width 3 15/16"

Product Details

Shipping Information

Height 24.76
Length 7.62
Width 10.16
Country Of Origin MX
Weight 3.307500
