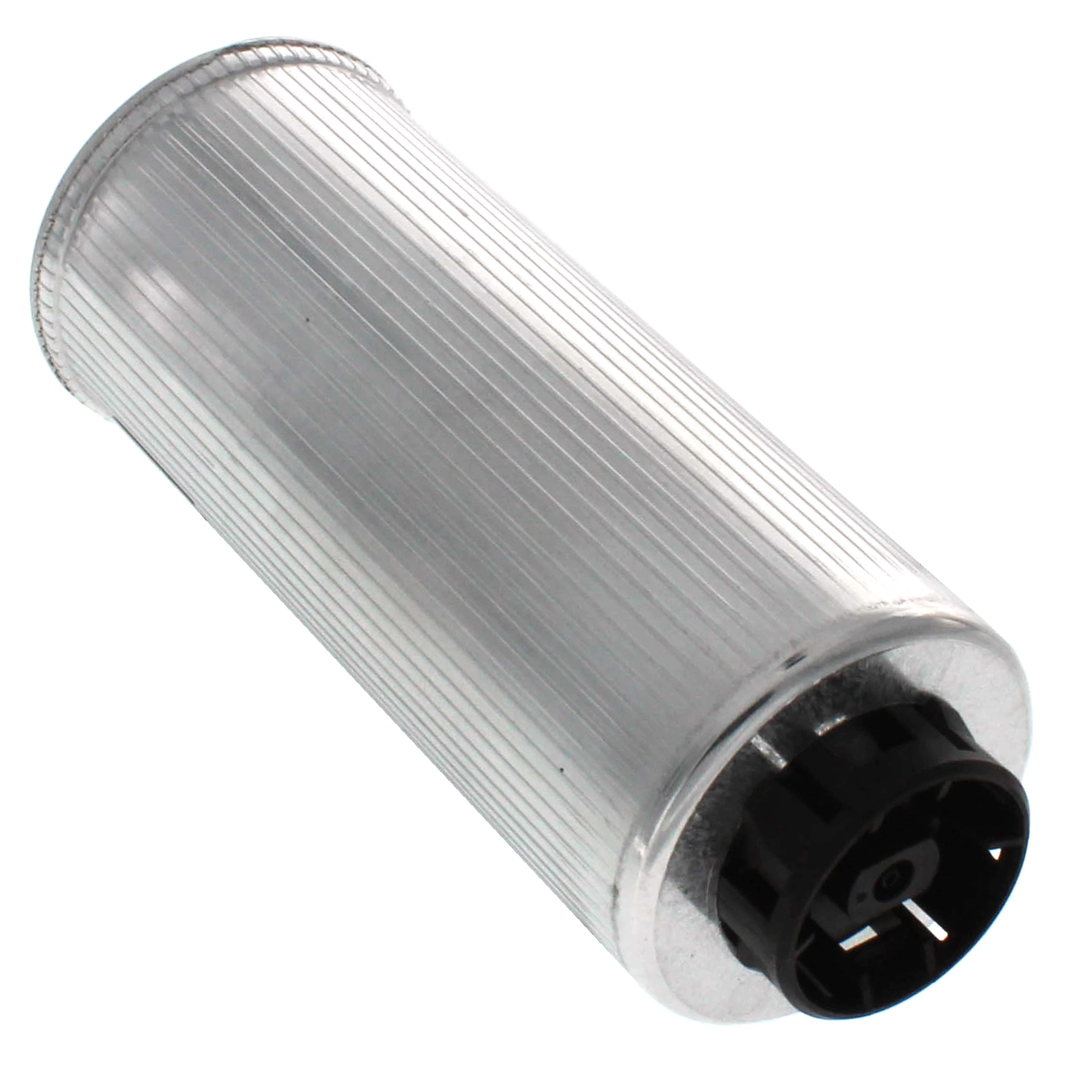

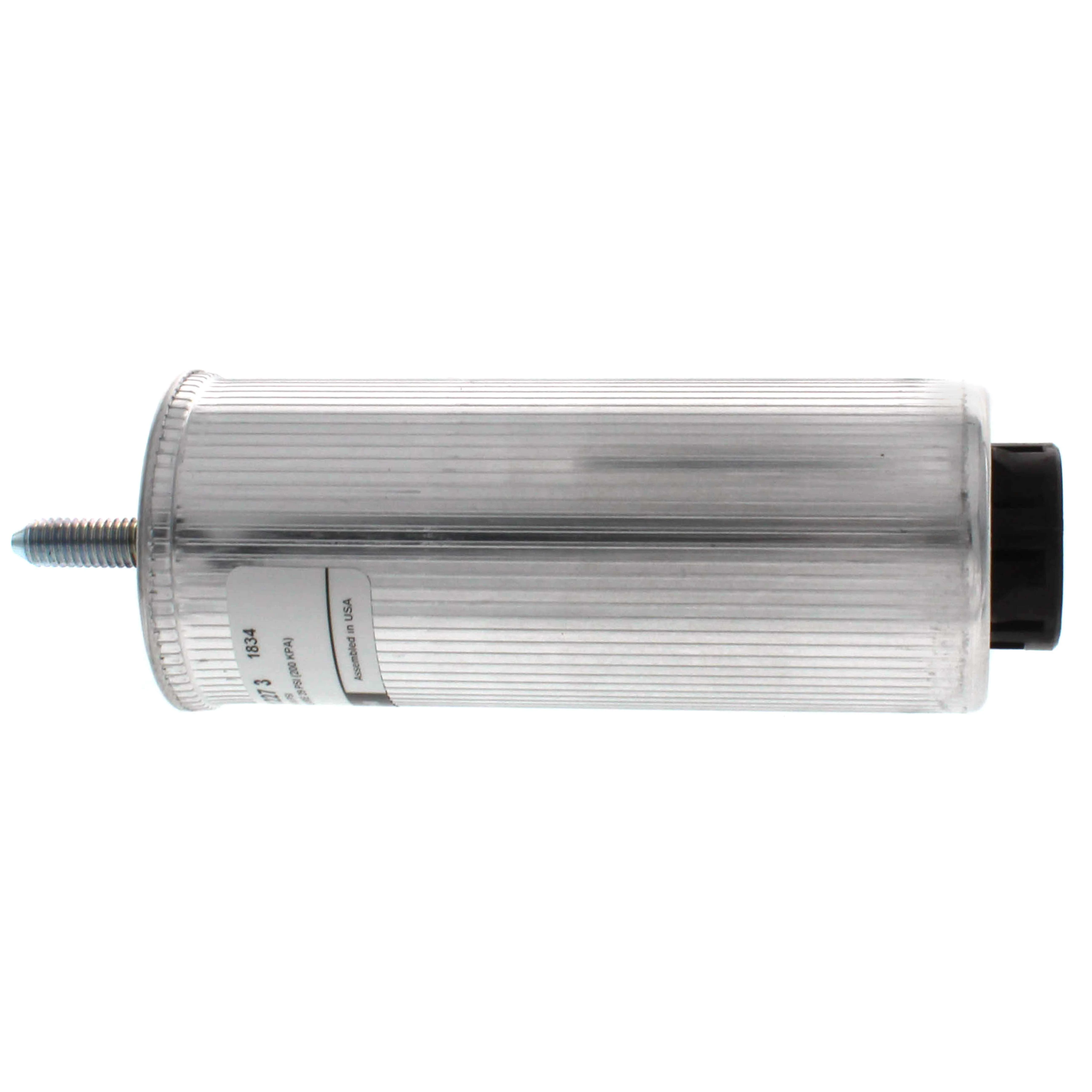

HONEYWELL MP909D1227/U Linear Pneumatic Actuator 5 To 10 Psi
Item: AD2TXZ
Model: MP909D1227/U
24 In Stock
Ships within 2 days via
5.00% off
£275.51/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Linear Pneumatic Actuator |
|---|---|
| Actuator Connection | Ball Joint Connector |
| Actuator Type | Linear |
| Air Connection Gender | Male |
| Air Connection Size | 3/16", 1/4" |
| Air Connection Type | Barbed Hose |
| Application | Dampers |
| Control Pressure - Maximum | 30 psi |
| Control Pressure - Minimum | 3 psi |
| Diaphragm Material | Neoprene |
| Fire/smoke Applications | UL Recognized Components For Fire/Smoke Applications |
| For Media | Air |
| Force At 0 Psi | 15 lbf. |
| Force At 20 Psi | 66 lbf. |
| Height | 2.406" |
| Includes Positioner | Positioner Not Included |
| Installation Orientation | Versatile |
|---|---|
| Length | 6.312" |
| Max. Air Pressure | 30 psi |
| Mounting | Fixed |
| Mounting Hardware Included | Ball Joints, Fixed External Mounting Bracket |
| Nominal Spring Range | 5 psi to 10 psi |
| Operating Pressure | 5 psi to 10 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | -28°F |
| Overall Depth | 2 7/16" |
| Overall Length | 6 5/16" |
| Spring Range Maximum | 10 psi |
| Spring Range Minimum | 5 psi |
| Stroke | 2 2/5" |
| Valve Action | Normally Open |
Product Details
Shipping Information
| Height | 6.35 |
|---|---|
| Length | 34.29 |
| Width | 22.86 |
| HS Code | 8412310080 |
|---|---|
| Country Of Origin | US |
| Weight | 0.360000 |
Related Products
| Style | Model | Nominal Spring Range | Stroke | Height | Net Force Exerted @ 0 Psi | Net Force Exerted @ 18 Psi | Mounting Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | MP909D1201/U | 3 psi to 8 psi | 2 2/5" | 2.406" | - | - | - | 297.59 | |
| B | MP909D1219/U | 8 psi to 13 psi | 2 2/5" | 2.406" | - | - | - | 279.48 | |
| C | MP909E1018/U | 3 psi to 13 psi | 4" | 6 7/8" | - | - | Fixed | 584.37 | |
| D | MP909E1026/U | 3 psi to 13 psi | 4" | - | - | - | - | 462.63 | |
| E | MP909E1174 | 9 psi to 13 psi | 4" | 6 7/8" | 59.4 lbs. | 3.3 lbs. | - | 688.50 | |
| F | MP918A1024 | 8 psi to 13 psi | 3 1/2" | 8" | 160 lbs. | 83 lbs. | - | 1,826.51 | |
| G | MP918B1006 | 3 psi to 13 psi | 3 1/2" | 6 7/8" | 50 lbs. | 89 lbs. | - | 910.98 |
