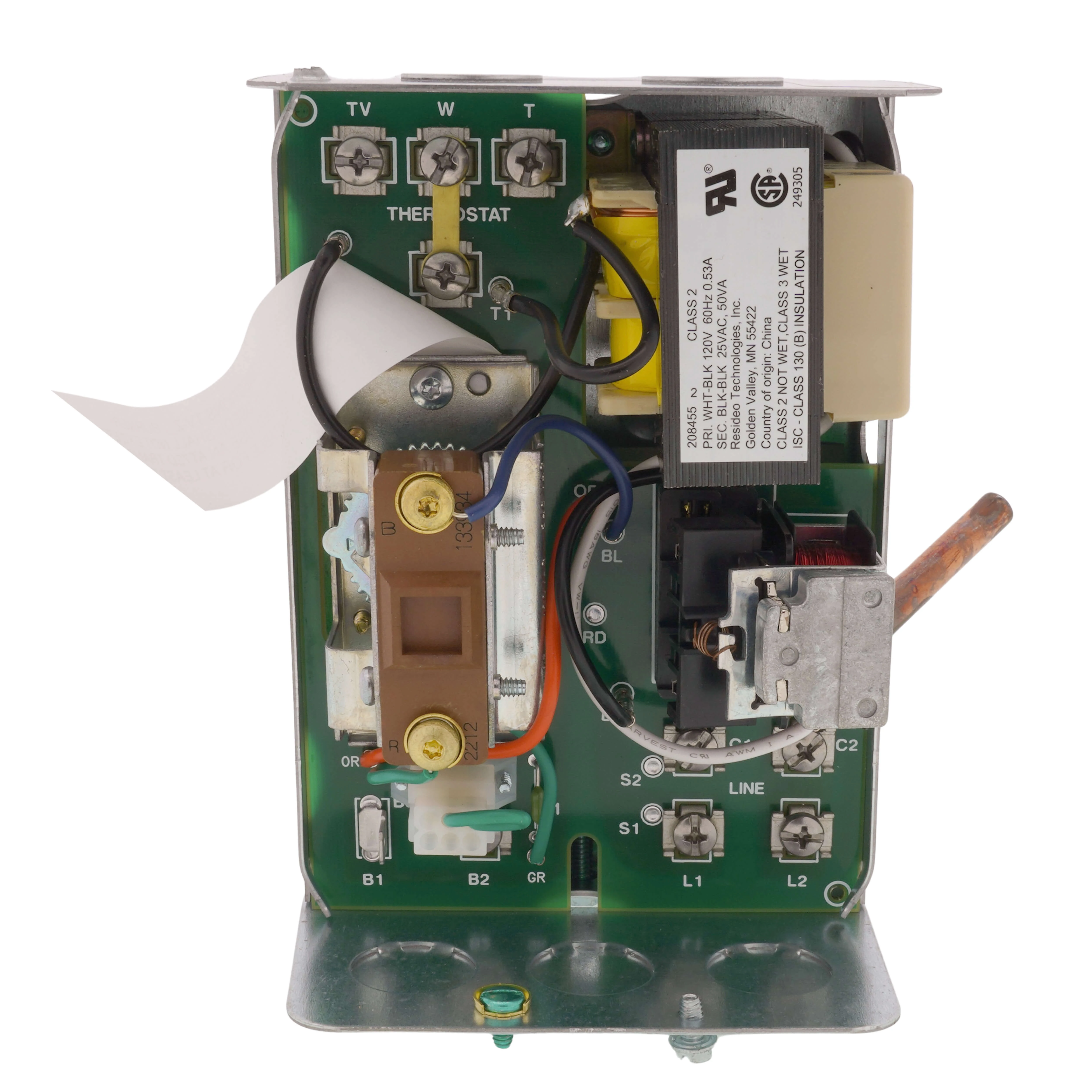

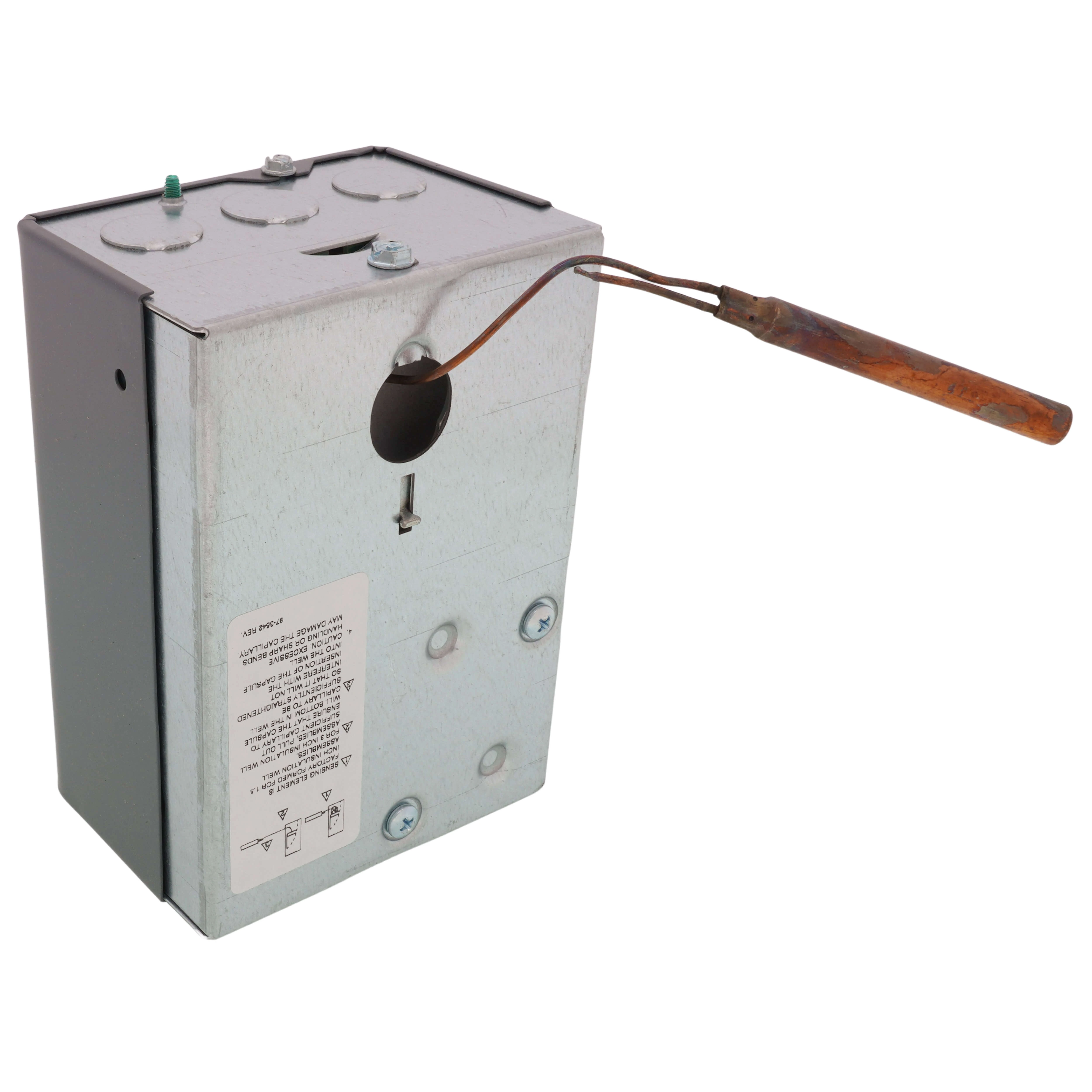

HONEYWELL L8148E1299 Plug
Item: CV4LVF
Model: L8148E1299
11 In Stock
Ships within 2 days via
5.00% off
£731.89/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | High Limit |
|---|---|
| Auto/manual Switch Included | Yes |
| Burner Circuit Voltage Type | Low Voltage |
| Capillary Length | 4 1/2" |
| Contact Form | SPST |
| Control Temperature Range | 180°F to 240°F |
| Differential Temperature | 15°F Fixed |
| Full Load Current @ 120v Ac | 7.4A |
| Full Load Current @ 240v Ac | 3.7A |
| Includes | Heat-Conductive Compound |
| Input Voltage | 120V AC |
| Insulation Depth | 1 1/2", 3" |
| Locked Rotor Current @ 120v | 44.4A |
|---|---|
| Locked Rotor Current @ 240v | 22.2A |
| Mounting Orientation | Vertical |
| Number Of Switches | 7 |
| Overall Depth | 3 1/8" |
| Overall Height | 6 1/8" |
| Overall Width | 4 3/8" |
| Product Type | Immersion Controller |
| Reset Type | Automatic Reset |
| Sensor Location | Remote |
| standard | LR95329-1, MBPR2, MP466, UL LISTED |
Product Details
Relay
Shipping Information
| height | 15.56 |
|---|---|
| length | 7.94 |
| width | 11.11 |
| country of origin | MX |
|---|---|
| weight | 1.773000 |
Related Products
| Style | Model | Differential Temperature | Spud Size | Height | Depth | Insulation Depth | Temp. Range | Full Load Amps @ 120v | Differential | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | L8124A1015 | 10°F Fixed (High Limit), 10°F to 25°F Adjustable (Low Limit) | 3" | - | - | 3" | - | - | - | 592.25 | |
| B | R8222U1079 | - | - | - | - | - | -20°F to +155°F | - | - | 56.35 | |
| C | L4006E1125 | - | 1/2" | 8 5/8" | 2 1/8" | 1 1/2", 3" | +100°F to +200°F | 8A | Manual Reset | 482.49 | |
| D | L4006A2007 | 5°F to 30°F Adjustable | 3/4" | 8 5/8" | 2 1/8" | 3" | +100°F to +240°F | 8A | 5°F to 30°F | 258.49 | |
| E | L4006A1017 | 5°F to 30°F Adjustable | 1/2" | 8 5/8" | 2 1/8" | 1 1/2", 3", 4" | +100°F to +240°F | 8A | 5°F to 30°F | 385.78 | |
| F | L4006E1091 | - | - | 8 5/8" | 2 1/8" | 3" | - | 8A | Manual Reset | 387.52 | |
| G | L8148J1009 | 8°F Fixed | - | 4.312" | 3 1/8" | 1 1/2", 3" | +120°F to +240°F | 7.4A | - | 560.57 |
