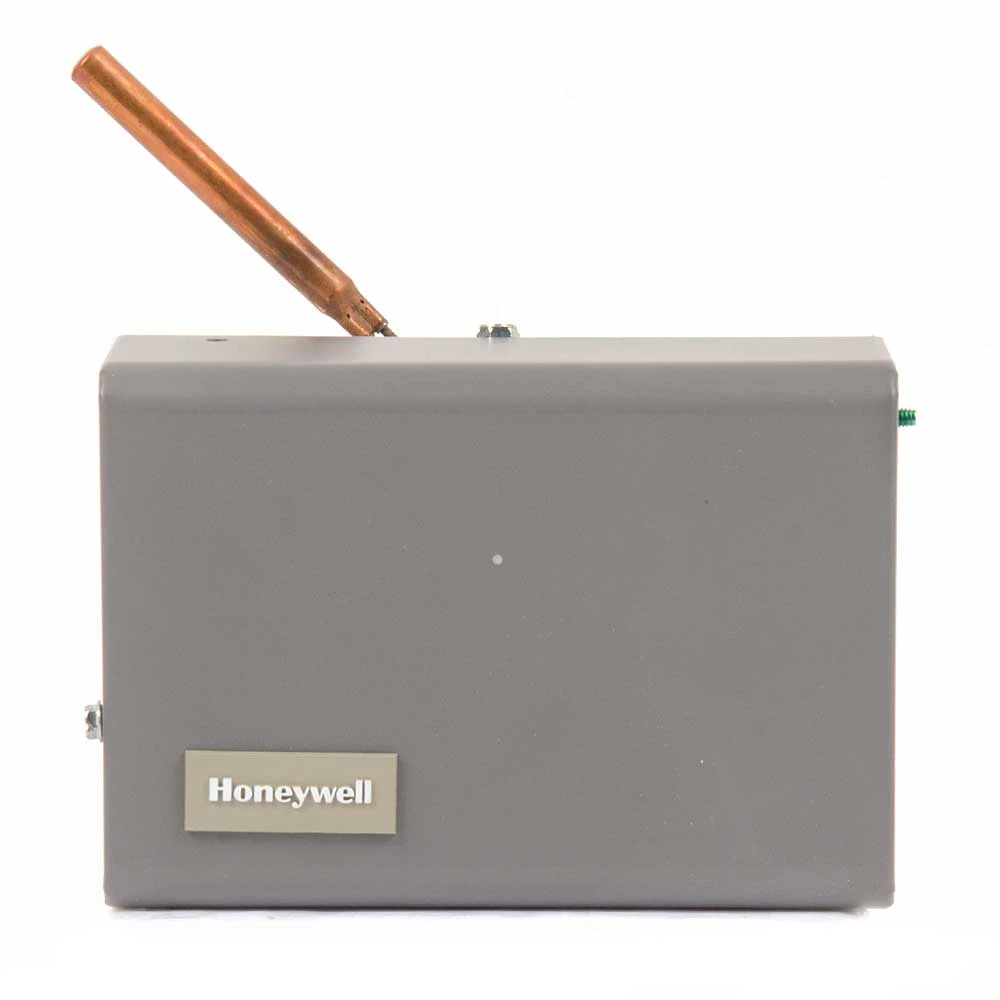

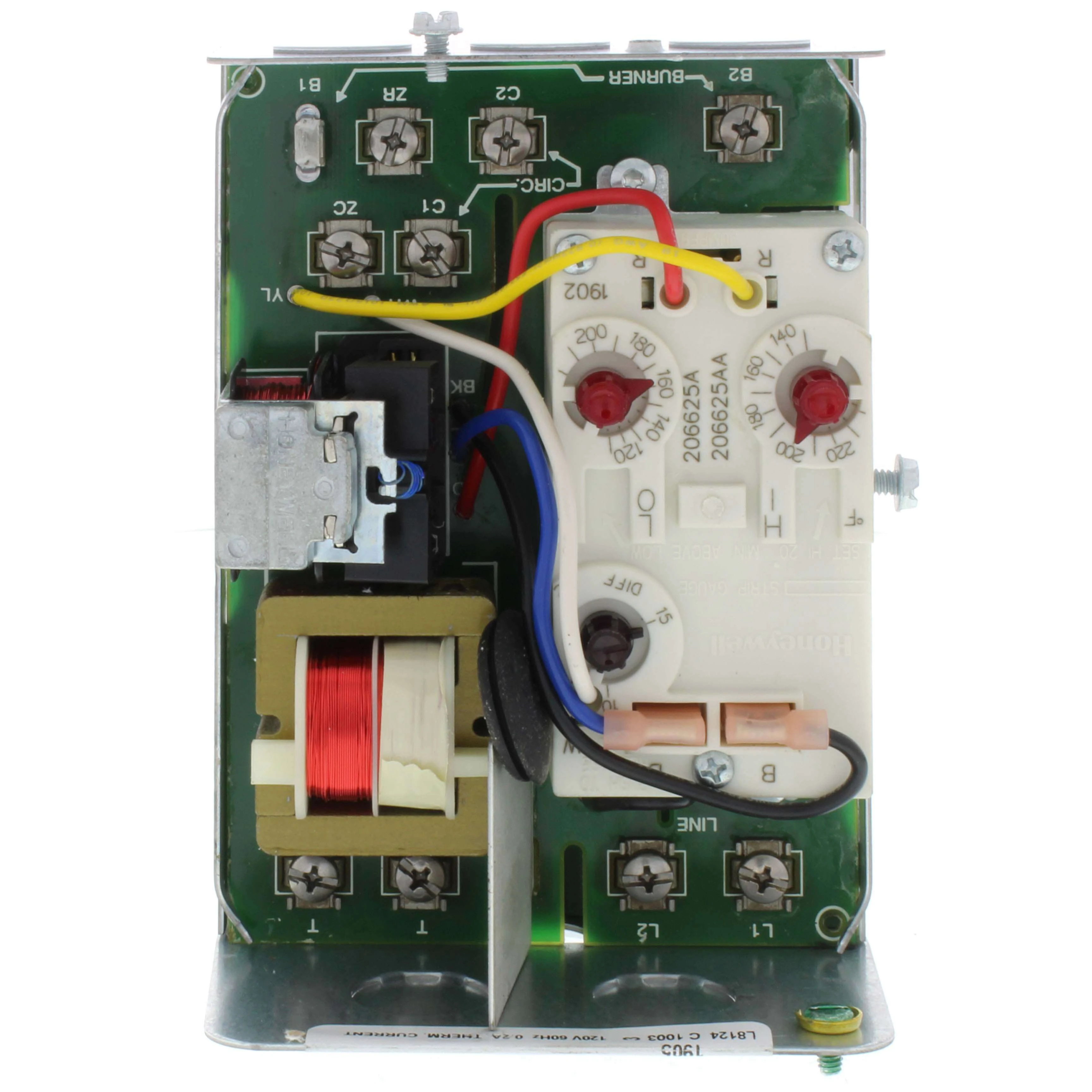

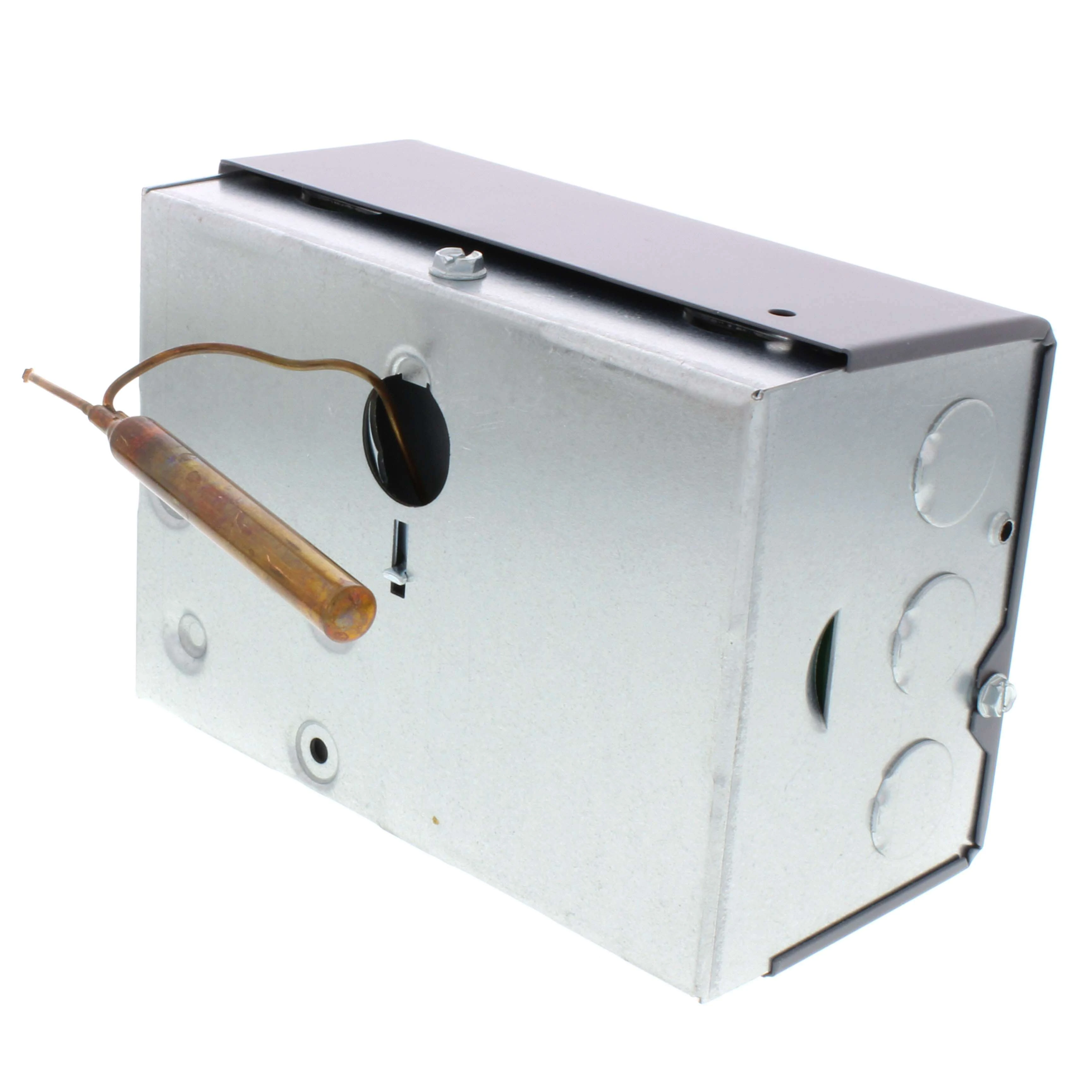

HONEYWELL L8124C1003 Immersion Controller, High Limit, 130 Deg F Min, 240 Deg F Max, Horizontal, 2 Switch

Item: EA6ATZ
Model: L8124C1003
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

application High Limit
Auto/manual Switch Included Yes
Burner Circuit Voltage Type Low Voltage
Burner Control Circuit 120V
Capillary Tube Length 3 3/8"
Contact Form SPST
Control Temp. Range 130°F to 240°F
Differential Temp. 10°F to 25°F Adjustable (Low Limit), 10°F Fixed (High Limit)
Differential Temp. 10°F Fixed (High Limit), 10°F To 25°F Adjustable (Low Limit)
Full Load Amps @ 120v Ac 7.4A
Full Load Amps @ 240v Ac 3.7A
High Limit Temp. Range 130°F to +240°F
Input Voltage 120V AC
Insulation Depth 1 1/2"
Locked Rotor Amps @ 120v 44.4A
Locked Rotor Amps @ 240v 22.7A
Low Limit Temp. Range 110°F to +220°F
Maximum Control Temp. 240°F
Min. Control Temp. 130°F
Mounting Orientation Horizontal
Multizone Control Compatible Yes
No. Of Switches 2
Overall Depth 3 1/8"
Overall Height 4 3/8"
Overall Width 6 1/8"
Reset Type Automatic Reset
Standard Logo csa.png, ul.png
Type Triple Aquastat Relay With High Limit
Width 4.33"

Product Details

Shipping Information

Height 18.03
Length 12.7
Width 13.21
Country Of Origin US
Weight 1.395000
