HONEYWELL HZ432K Zone Control Kit 4 Zone Output Amps 10va

Item: AB9ZMC
Model: HZ432K
21 In Stock

Ships within 2 days via

£972.32
5.00% off
£923.71/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ambient Temp. Range -20°F to +150°F
Application Controls Air Flow In Heating And Cooling Systems, (3H/2C)
Color Gray
Connection Type Push Button Terminals
Depth 2"
For Use With True Zone Systems
Full Load Amps 8.5A
Height 13 1/2"
Housing Color Gray

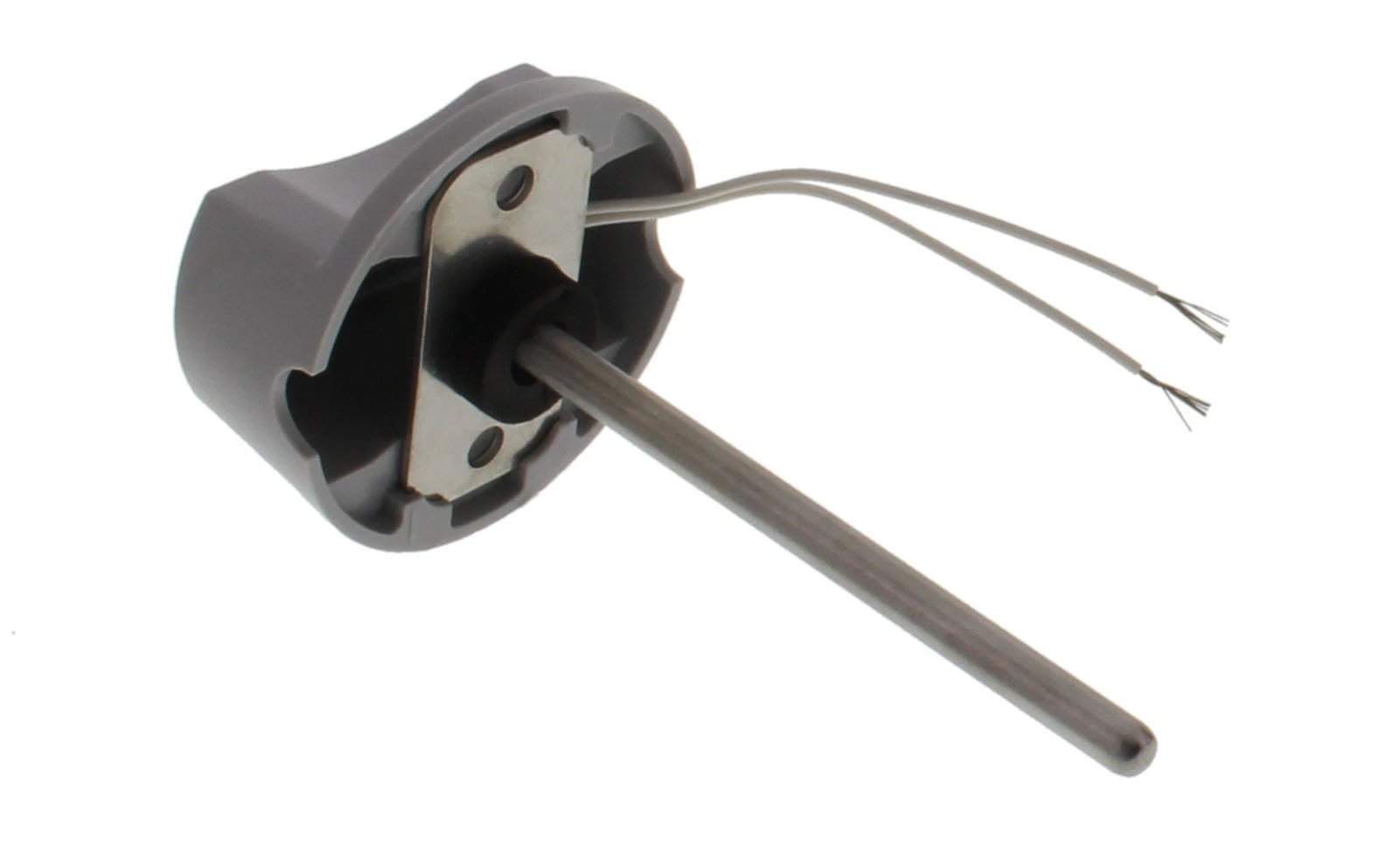

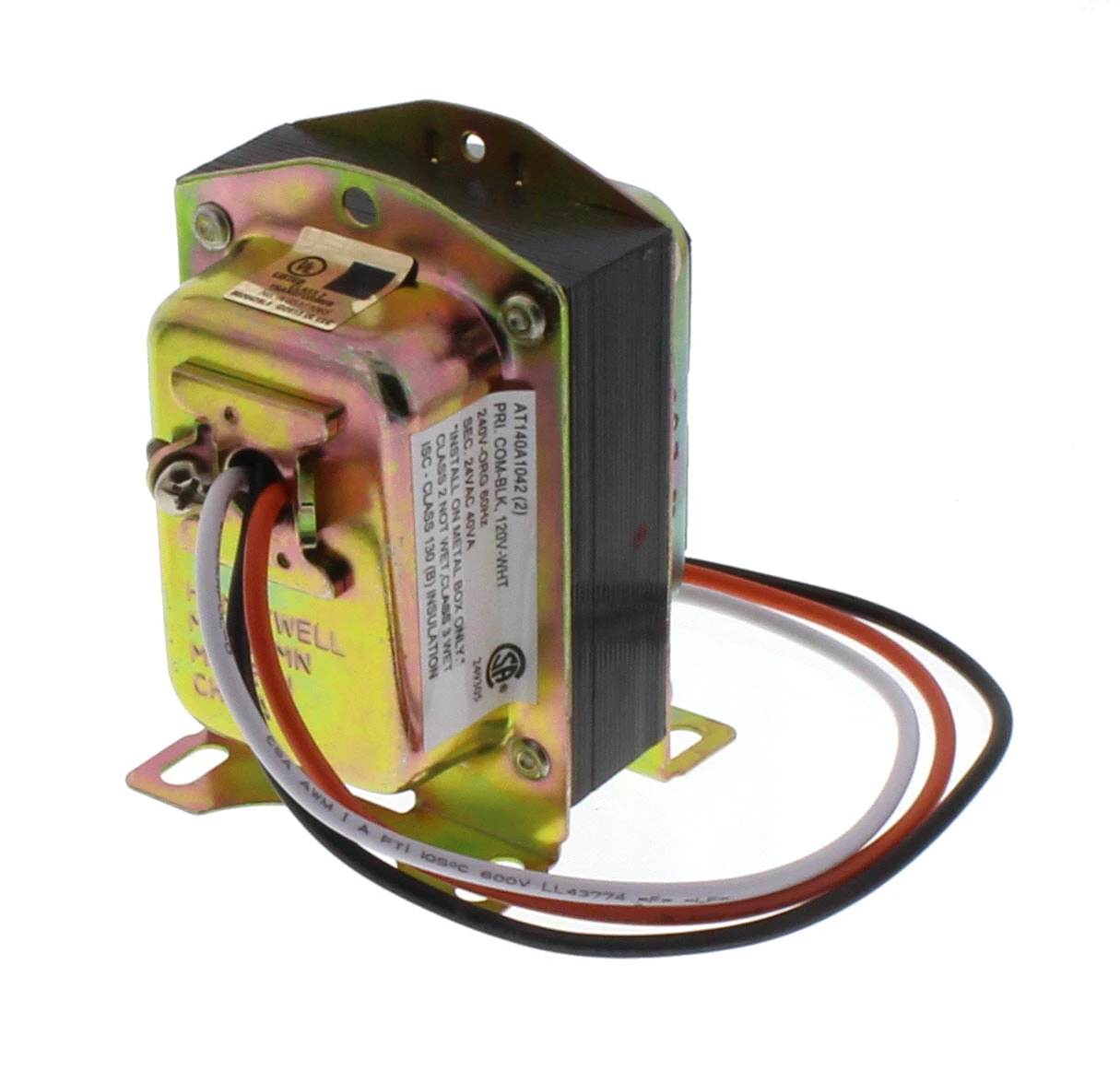

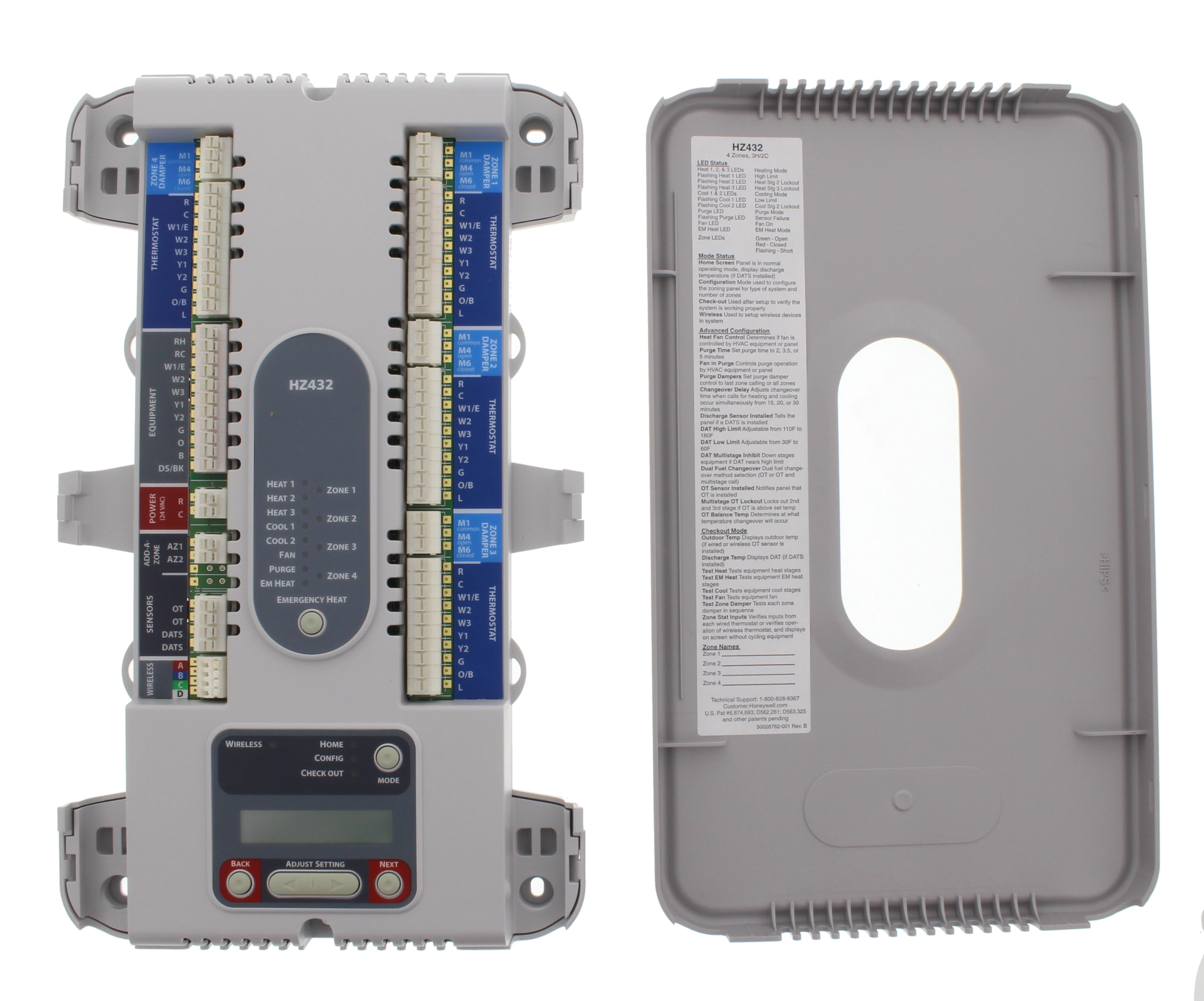

Includes HZ432 Zone Panel, Transformer And Discharge Air Sensor
Minimum Ambient Temperature -40°F
Nameplate Voltage 24V AC
No. Of Zones 4
Output Amps 10 VA
Overall Depth 1 7/8"
Overall Height 13 3/8"
Overall Width 8"
Power Method 24V AC
Product Type Control Kit
Requires Thermostat Type 2 Cool, 3 Heat
Terminal Designations C, G, L, M1, M4, M6, O/B, R, Rc, W, W1/E, W2, Y, Y1, Y2
Type Panel For Conventional, Heat Pump Or Dual Fuel Applications, Applications For 4 Zone
Voltage (ac) 24V AC
Width 8"

Shipping Information

Height 19.3
Length 36.83
Width 22.35
HS Code 9032100060
Country Of Origin MX
Weight 2.164500
