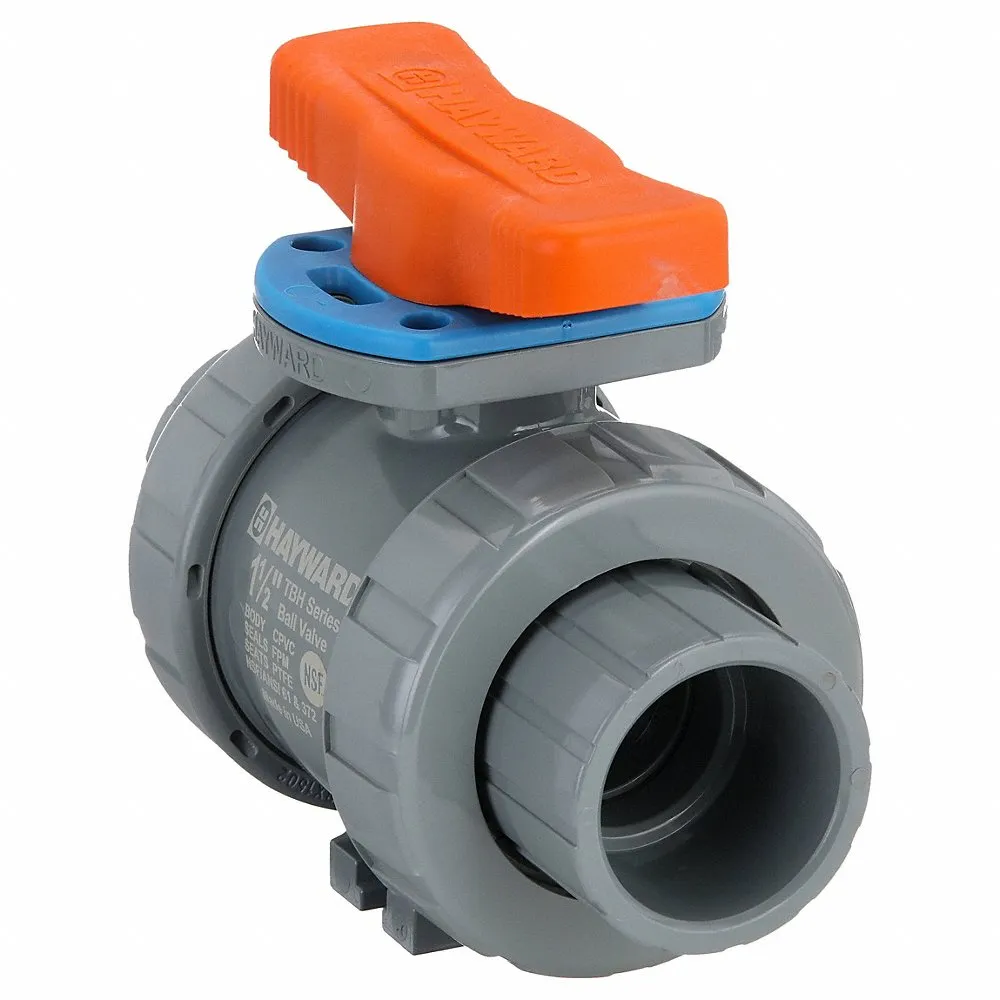

HAYWARD TBH2150ASTV0000 Manual Two-Way Ball Valve, 1 1/2 Inch, CPVC, Straight, Full Port Ball Port

Item: CA9XHC
Model: TBH2150ASTV0000
24 In Stock

Ships within 2 days via

£324.76
5.00% off
£308.52/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ball Material CPVC
Ball Opening Size 1 12/25"
Ball Port Style Full Port
Body Material CPVC
Coefficient Of Volume 90
Connection Gender - Side 1 Female
Connection Gender - Side 2 Female
Connection Size - Side 1 1 1/2"
Connection Size - Side 2 1 1/2"
Connection Type - Side 1 True Union Socket, True Union NPT
Connection Type - Side 2 Socket
For Media Corrosive Chemicals, Water
Handle Locking Tee
Handle Color Red
Handle Height 3.89"
Handle Length 5.17"
Handle Material Glass Filled Polypropylene
Included Mounting Iso 5211 Actuator Mounting Pad
Manufacturer Warranty 3 yrs.
Max. Pressure (combustible Gas) Not Rated
Max. Pressure (cwp) 250 psi
Media Temp. Range 34°F to 190°F
Media Temperature Range 34°F to 190°F
Nominal Valve Size 1 1/2"
Nsf Certifications For Food And Drinking Water NSF 61
Overall Length 10.65"
Seal Material FKM
Seat Material PTFE
Special Features Actuator Compatible
Standards Astm D1784 Cell Class 23447, Astm D4101 Cell Class 85580, Nsf/Ansi 372
Stem Material CPVC
Stem Type Blowout Resistant
Vacuum Service Rating Not Rated
Valve Body Style Straight
Valve Construction Three-Piece
Valve Series Tbh
Vented Ball Valve Non Vented

Product Details

Not Rated

Shipping Information

height 2.54
length 27.05
width 2.54
country of origin US
weight 1.552500
