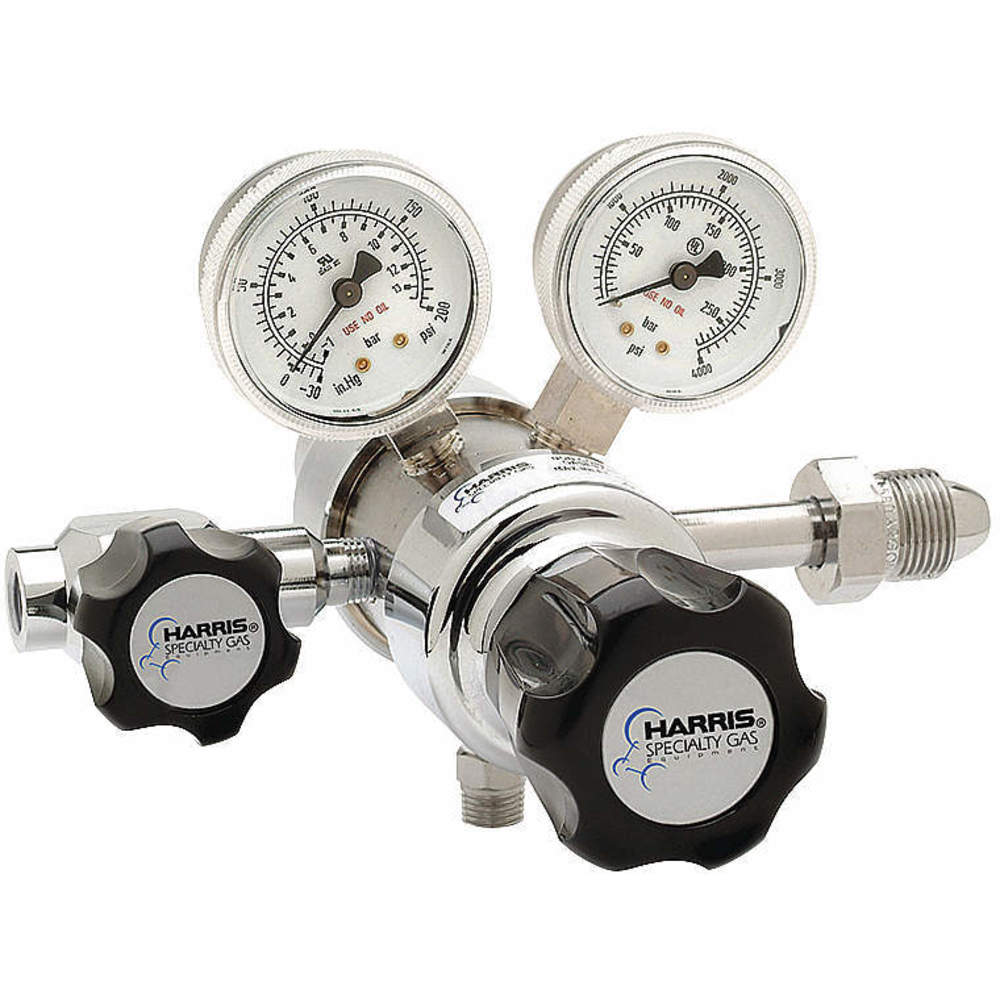

| Item | Specialty Gas Regulator |
| Body Dia. | 2 1/8" |
| Body Material | Brass |
| Coefficient Of Volume | 0.06 |
| Delivery | 0 psi to 50 psi |
| Delivery Pressure Range | 0 psi to 50 psi |
| Gas Service | Argon, Helium, Nitrogen |
| Gauge Size | 2" |
| Gauges Delivery Pressure | 100 psi |
| Max. Inlet Pressure | 3000 psig |
| Number Of Stages | Two |
| Overall Length | 9 1/4" |
| Regulator Capacity | Heavy Duty |
| Supply Pressure Gauge | 4000 psig |
| Application | General Laboratory Purpose |
| Body Diameter | 2.125" |
| Body Finish | Chrome Plated |
| Cga Number | CGA 580 |
| control type | Knob |
| diaphragm material | 302 Stainless Steel |
| filter material | Nickel Plated Bronze |
| gauge diameter | 2" |
| helium leak integrity rating | 1 x 10^-9 Cc/Sec |
| inlet connection | CGA 580 |
| inlet connection gender | Male |
| inlet connection type | NGO |
| inlet thread direction | Right Hand |
| mounting type | Cylinder |
| outlet connection | 1/8" Tube |
| outlet connection size | 1/8" |
| outlet connection type | Tube Fitting |
| outlet pressure (minimum) | 0 psig |
| outlet thread direction | Right Hand |
| overall depth | 9.18" |
| regulator series | HP 702 |
| seal material | PTFE |
| seat material | PTFE |
| standards | CGA E-4 |
| Ship weight (kg) | 3.16 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
| HS code | 8481100090 |
| Country of Origin | US |
| Model | Body Dia. | Body Material | Cga Connection Inlet | Coefficient Of Volume | Cylinder Gas | Delivery Pressure Range | Diaphragm Material | Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KH1000 | 2.125" | Chrome Plated Brass | 320 | - | CO2 | 0-15 PSI | Neoprene | 600 SCFH (AIR) | £496.12 | |
| KH1001 | 2.125" | Chrome Plated Brass | 320 | - | CO2 | 0-50 PSI | Neoprene | 1200 SCFH (AIR) | £494.94 | |
| KH1002 | 2.125" | Chrome Plated Brass | 320 | - | CO2 | 0-125 PSI | Neoprene | 2500 SCFH (AIR) | £481.32 | |
| KH1003 | 2.125" | Chrome Plated Brass | 350 | - | H2 | 0-15 PSI | Neoprene | 600 SCFH (AIR) | £496.12 | |
| KH1004 | 2.125" | Chrome Plated Brass | 350 | - | H2 | 0-50 PSI | Neoprene | 1200 SCFH (AIR) | £503.54 | |
| KH1005 | 2.125" | Chrome Plated Brass | 350 | - | H2 | 0-125 PSI | Neoprene | 2500 SCFH (AIR) | £481.32 | |
| KH1006 | 2.125" | Chrome Plated Brass | 350 | - | H2 | 0-250 PSI | Neoprene | 4500 SCFH (AIR) | £550.03 |
