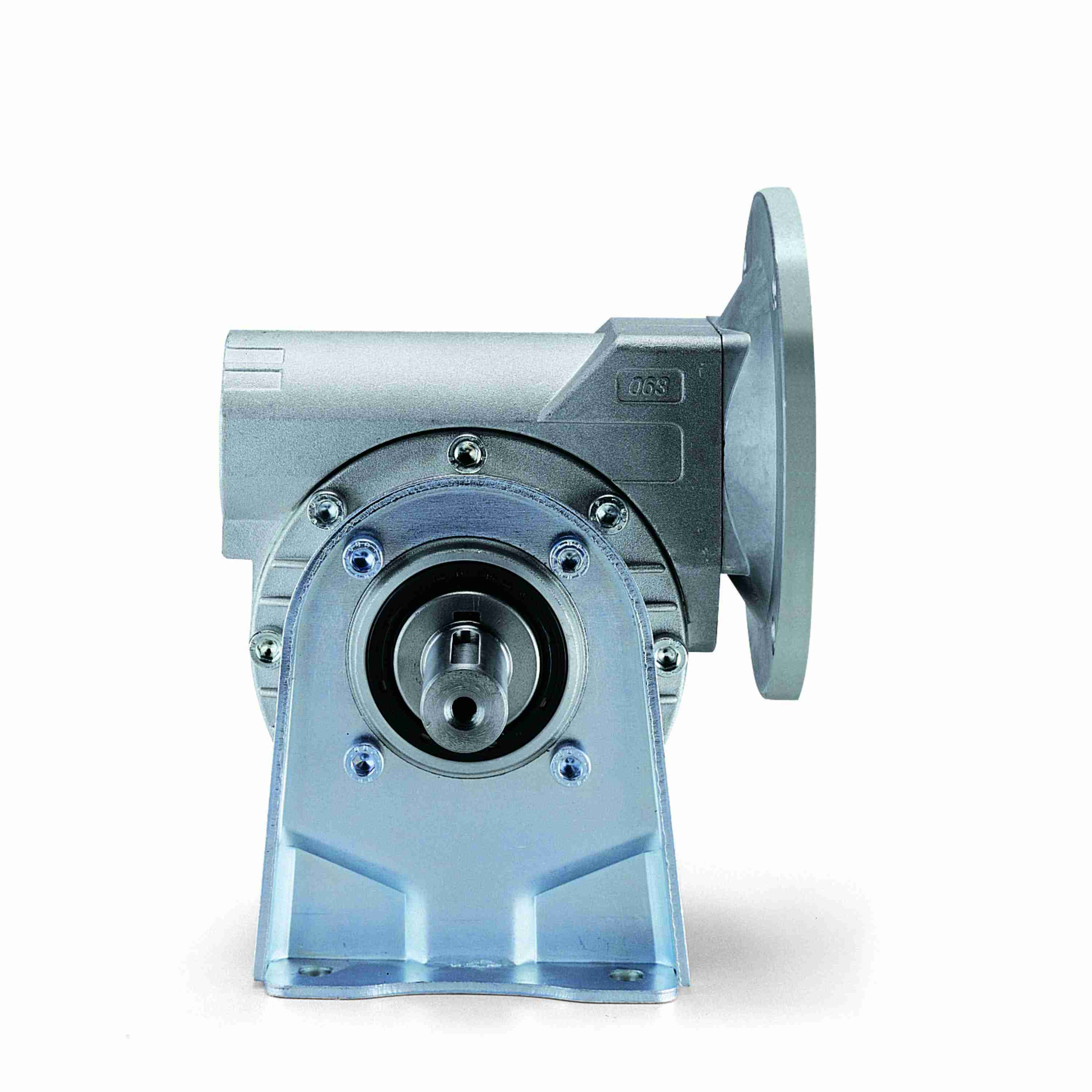

GROVE GEAR W5255053.00 TMQ525-45-L-56 Worm Reducer, 45:1 Ratio, 0.625 Inch I.D, 1.125 Inch O.D, Aluminum
Item: AY4JZB
Model: W5255053.00
In Stock
Get it by Wednesday, Apr 15
£747.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | TMQ-L |
|---|---|
| Center Distance | 2 12/25" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Max. Input Hp | 1 11/100 hp |
| Mounting Type | Horizontal Base, Worm Over |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/8" |
| Output Hp | 73/100 hp |
| Output Rpm | 39 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 1182 lbs.-in. |
| Overhung Load | 855 lbs. |
| Product Line | Bravo Series - Compact Aluminum Worm Speed Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | Bravo Series |
| Series Style | TMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Nitrile |
Product Details
Reducer
Shipping Information
| height | 26.67 |
|---|---|
| length | 27.15 |
| width | 23.01 |
|---|---|
| weight | 7.650000 |
