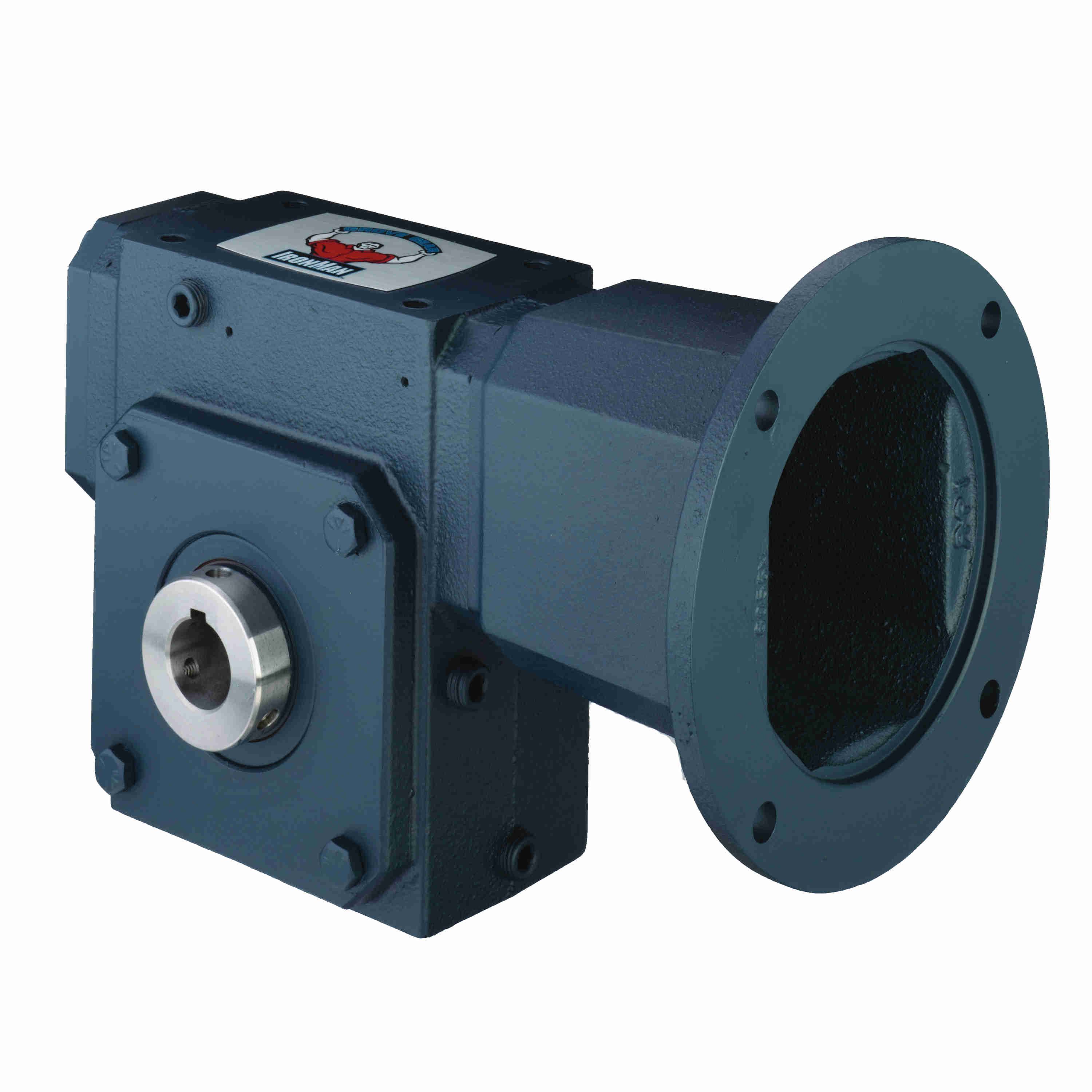

GROVE GEAR NH8240522.16 NH-HM824-60-H1-56-16 Worm Reducer, 60:1 Ratio, 0.75 Inch I.D, 1 Inch O.D, Cast Iron
Item: AY2LKK
Model: NH8240522.16
In Stock
Get it by Thursday, Apr 16
£1122.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | HM-H1 |
|---|---|
| Bore Code | 16 |
| Center Distance | 2.38" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 3/4" |
| Input Hp @ 1750 Rpm | 0.967 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Max. Input Hp | 0.967 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 82/125 hp |
|---|---|
| Output Key Size | 1/4" x 2.5" |
| Output Rpm | 29.2 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2091 |
| Output Style | H1 |
| Output Torque | 1418 lbs.-in. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 18.900000 |
Related Products
| Style | Model | output torque | max. input hp | mounting type | gear type | gear ratio | center distance | input style | output rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | NH8240165.00 | 1432 lbs.-in. | 1.137 hp | Base | Worm | - | 2.38" | C Face Quill | 35 RPM | 1,255.56 | |
| A | NH8240166.00 | 1418 lbs.-in. | 0.967 hp | Base | Worm | - | 2.38" | C Face Quill | 29.2 RPM | 1,255.56 | |
| B | NH8240184.00 | - | 2.765 hp | Base | - | 15:1 | 2.38" | C Face Quill | - | 1,255.56 | |
| C | NH8240149.00 | 1421 lbs.-in. | 2.326 hp | Base | Worm | - | 2.38" | C Face Quill | 87.5 RPM | 1,255.56 | |
| C | NH8240588.23 | - | - | - | - | - | - | - | - | 935.02 | |
| B | NH8240207.00 | 1172 lbs.-in. | 3.564 hp | Base | Worm | - | 2.38" | C Face Quill | 175 RPM | 1,317.33 | |
| A | NH8240197.00 | 1421 lbs.-in. | 2.326 hp | Base | Worm | - | 2.38" | C Face Quill | 87.5 RPM | 1,255.56 |
