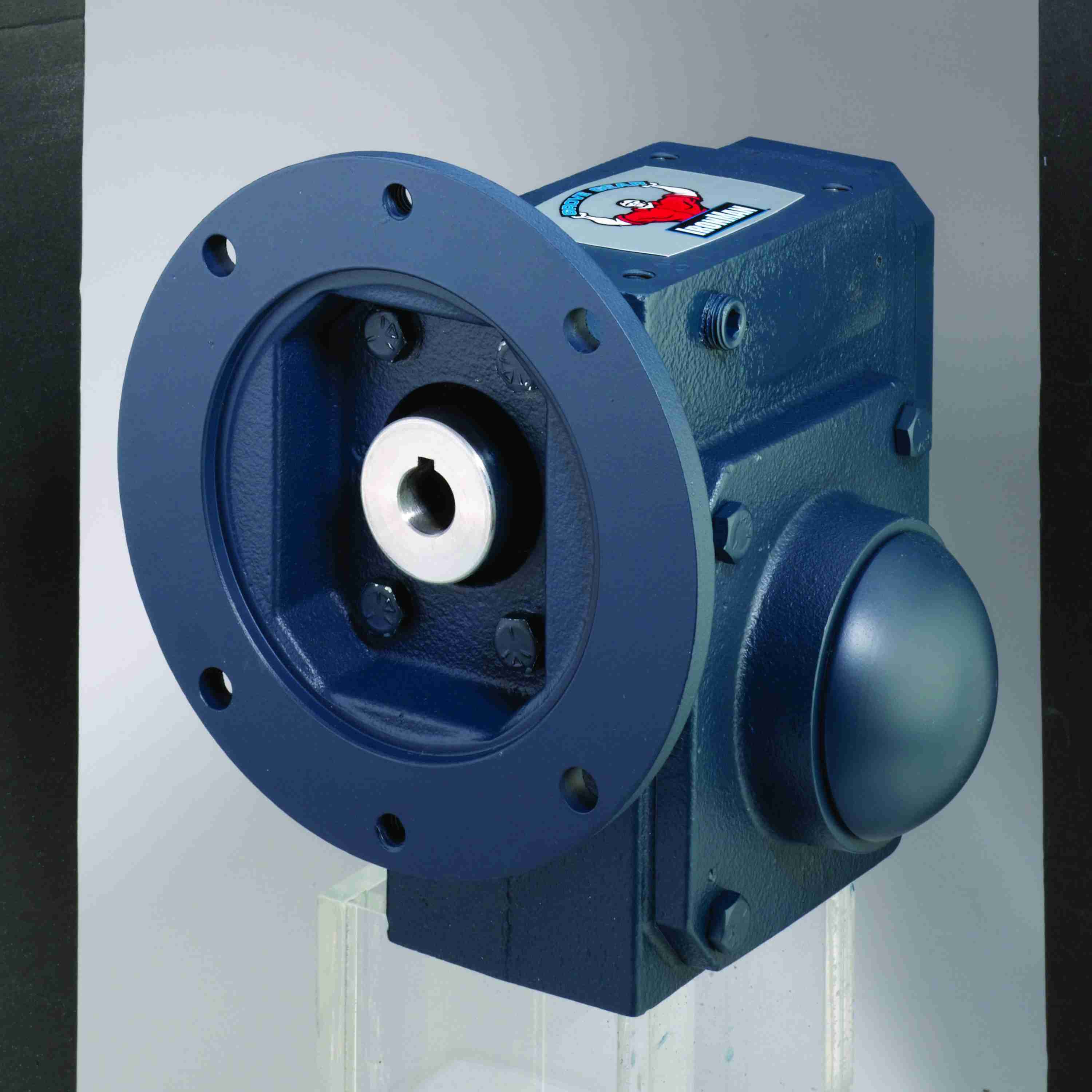

GROVE GEAR NH8185014.00 NH-BLMQ818-30-L-56 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron
Item: AY3YBK
Model: NH8185014.00
In Stock
Get it by Thursday, Apr 16
£1029.47/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | BLMQ |
|---|---|
| Center Distance | 1 3/4" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 0.741 hp |
| Mounting Type | Torque Limiting Design |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 0.569 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 58 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 614 lbs.-in. |
| Overhung Load | 1250 lbs. |
| Product Line | NH Series - Ironman Narrow Housing Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | NH Series |
| Series Style | NH-BLMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 9.000000 |
Related Products
| Style | Model | max. input hp | output torque | output rpm | series | gear type | mounting type | center distance | input style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | NH8185021.00 | 0.449 hp | 623 lbs.-in. | 29 RPM | NH Series | Worm | Torque Limiting Design | 1 3/4" | C Face Quill | 857.89 | |
| A | NH8185035.00 | 0.884 hp | 644 lbs.-in. | 70 RPM | NH Series | Worm | Torque Limiting Design | 1 3/4" | C Face Quill | 857.89 |
